Mac LC, LC II, LC III systems

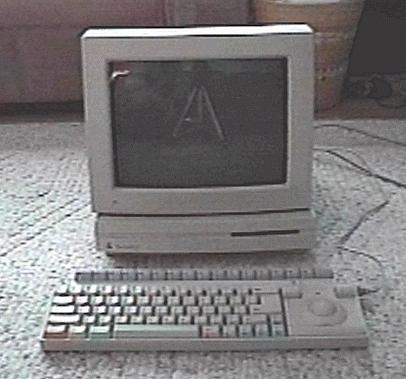

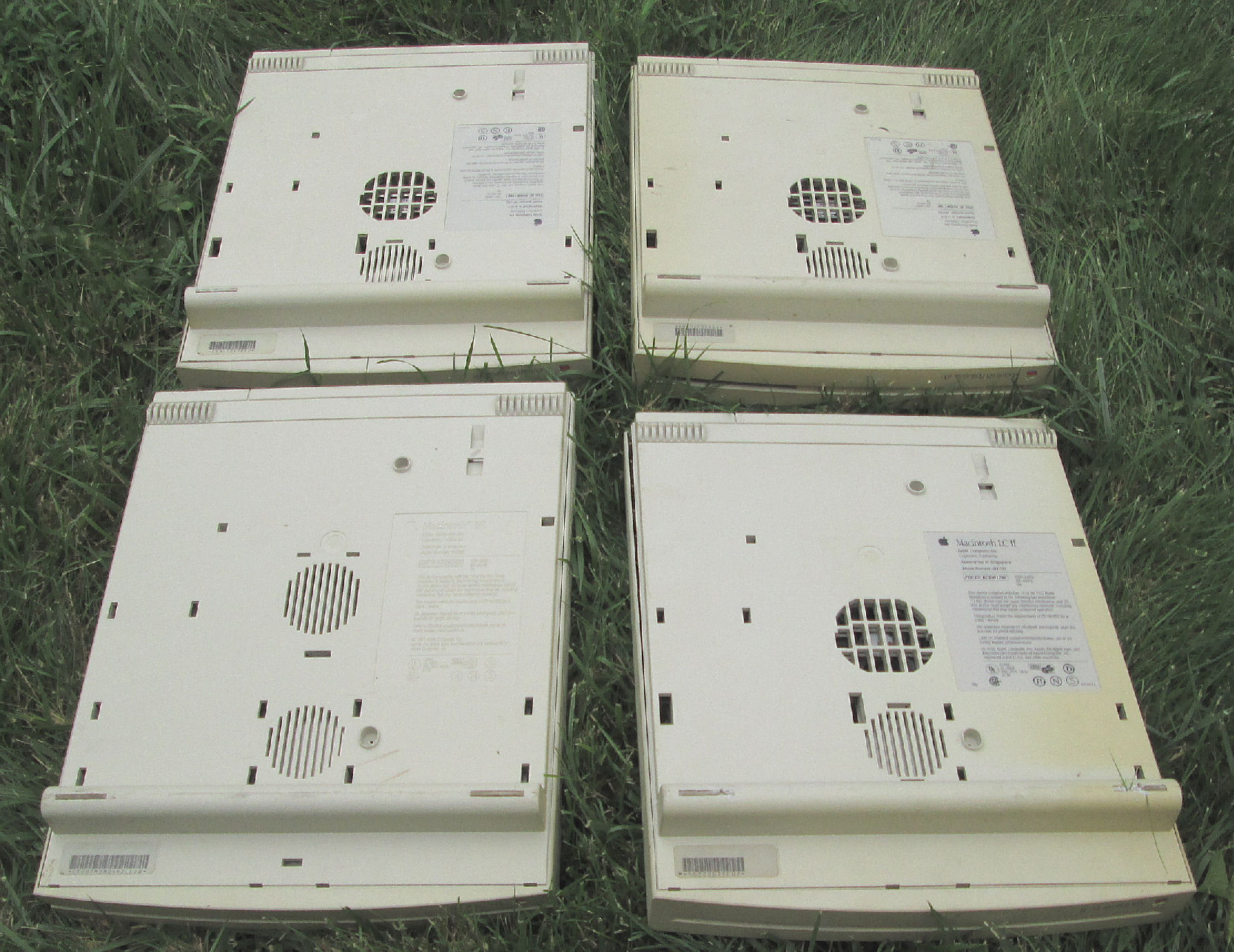

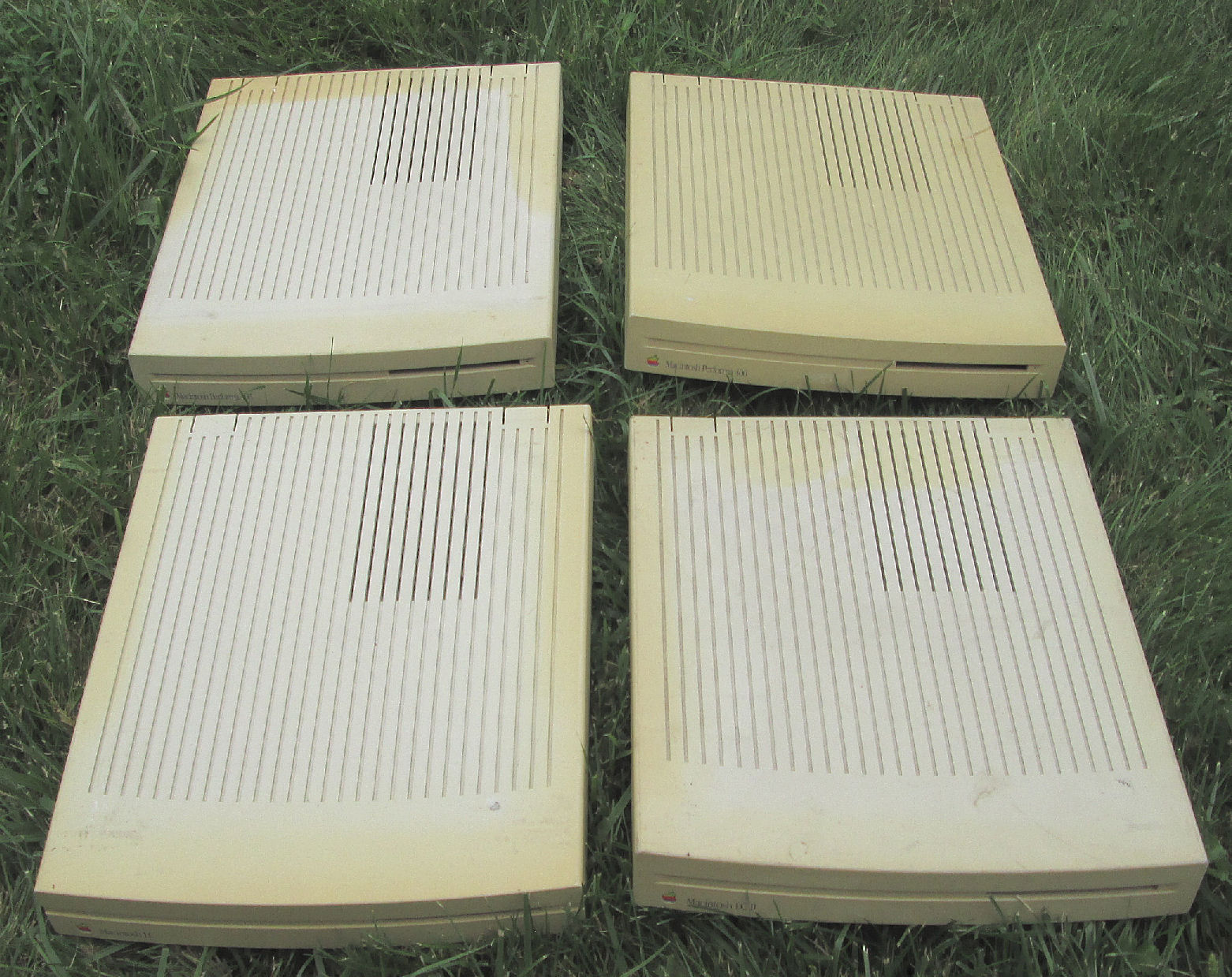

Mac LC systems: classic 68030 systems (the LC is a 68020). They are very compact, with a 12-by-14-inch "footprint" and only a few inches high. The "LC" PDS slot will hold network cards, modem cards, and other add- ons.

The Performa 400, 405, 410, 420, and 430 are ALL THE SAME as the LC II, except they were sold with different hard drive capacities. The Performa 450 is the same as the LC III, and the Performa 460, 466, and 467 are LC III+ systems (33MHz processor instead of 25MHz). Check with Apple and other Mac sites for details about these various systems. Limited offer on remaining LC, LC II, LC III's while still in stock - buy before they are gone! Shipping weight 15 lbs.
While these systems are not in much demand, their prices are based on the value of their parts - power supply, logic/cpu board, floppy drive.

Mac LC : system without hard drive or floppy drive, $39 as available, may be out as of 8/05
Mac LC II: system without hard drive or floppy drive, $49 as available.
Mac LCIII: system without hard drive or floppy drive, $59 as available.

When ordering, please follow this link for ordering information, terms and conditions, and info about orders outside the USA.

Mac II, IIx, IIfx series systems

Mac II-series systems: clean and working 68030 systems (except the II is 68020). The II, IIx, IIfx have a large footprint, support TWO floppy drives, and many NuBus cards. All of these systems are available with a hard drive, memory and an 1.4M "superdrive" floppy (except the II). They require a monitor, keyboard and mouse to be used as a personal computer. they need a NuBus video card which can also add more colors or resolution, and speed up the system. Also NuBus network cards are available.

The Mac IIfx was the top-line 68030 system for several years. People still order these to support scientific applications! These use special 64-pin memory SIMMS: my supply of them is limited so I will give preference to IIfx system purchasers. Prices depend on memory, features and condition of case. Check my memory section for those prices.

In the last several years, these Mac models are starting to appear less often as surplus, and in poorer condition. Consequently my prices will rise over time. If you are thinking of "eventually" ordering one of these, as a spare or for parts, better do it now before I'm unable to acquire more. Some systems will have faded (slightly yellowed or very yellowed) cases. Let us know if you will accept a YELLOW case at a lower price, or if you insist on an UNFADED (GREY) case at a much higher price IF AVAILABLE.

The Mac II, IIx and IIfx are large NuBus systems with six slots in identical cases. They support TWO floppy drives as well as a hard drive (other Mac II's only support one). The IIvx is a sleeker case which supports 3 NuBus slots and has room for a CD-ROM drive. Larger hard drives and more memory than listed below available at extra cost, ask.

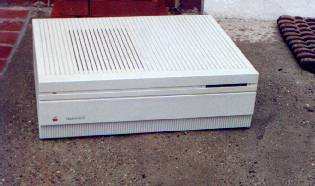

Mac II: 68020 w/FPU, 2 Megs RAM, faded case, no hard drive, no 800K floppy, NuBus slots, with simple video card. Price will depend on condition and availability, ask and specify cosmetic condition acceptable. Shipping will add to cost. Wt. 35 lbs
These use 30-pin SIMMs, check my memory section for prices.

Mac IIx, 68030/16 and FPU, rarely found! With 8 Megs RAM, no hard drive, one 1.4M floppy, with simple video card, Six NuBus slots. Cannot price due to rarity, ask for price and availability, specify if faded case is acceptable. Shipping weight 35 lbs.

Mac IIfx, 68030 and 68882 40MHz processors ,4 Megs of 64-pin RAM, can have two 1.4M floppy drives and one hard drive, can run System 7.0 or better. Cannot price due to rarity, ask for price and availability, specify if faded case is acceptable. A IIfx system would be the MOST EXPENSIVE II series system I'd offer. Shipping weight 35 lbs.

IIfx SCSI internal terminator

In Feb 2006 a customer was kind enough to explore the Web on the subject of the Mac IIFX and its internal SCSI terminator, possibly part number 590-4515. This is an odd little black board which is on the end of a SCSI cable, It provides passive SCSI termination. These are hard to find. Information about this item is at these Web sites:

Apple Developer Note:
and the following:
Apple Service Manual
These sites say that a IIfx without an internal hard drive requires that a "SCSI Termination Block" be installed. We don't have this part at this time (Feb 2006) but it's possible we may another time, so ask and encourage me!

Another customer, in 2007, gave me this information:

External SCSI Terminator (that Black one only used for the Mac IIfx and some LaserWriter setups).
Internal SCSI filter (Apple P/N 590-4516) with Internal SCSI termination Block (Apple P/N 590-4515) that was placed between the cable connector and the hard drive, with the other end of the internal SCSI cable going directly to the logic board.

Mac IIsi, IIci. IIcx, IIvx series systems

The IIsi, IIci and IIcx are 68030 processor systems which have a 12-by-14-inch "footprint". These all support three Nubus cards, except the short IIsi which supports one with a Nubus adapter. The IIvi is an 68030 at 16 MHz, the IIvx is a 68030 at 32MHz, both in a 7100 or 630 type case.

The IIsi and IIci have an "030" PDS slot (like the SE/30) which will take some cards including processor cache, accelerators, or NuBus adapters. All of these systems are available with a hard drive, memory and an 1.4M "superdrive" floppy. They all use 30-pin SIMM memory. They require a monitor, keyboard and mouse to be used as a personal computer. Some of these systems have internal video, some need a video card which can also add more colors or resolution, and speed up the system. Also network cards are available. These are a great step up from the Compact Macs (Plus, SE, SE/30) yet you can use the same software!

Mac IIvx Also known as Performa 600: 68030/32 MHz with FPU and cache, mike input, 3 Nubus slots. Uses 30-pin SIMM memory. Looks like a PowerMac 7100. Can include CD-ROM drive.

Mac IIvx or Performa 600: I only have IIvx logics (motherboards) and the IIvx nameplate as removed from the cabinet. These are available for $20 plus shipping.

The Mac IIvi was mostly sold in Europe and has a 68030 at 16MHz. I don't have these in stock, but you can ask.

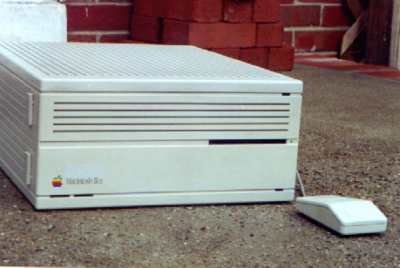

Mac IIcx, 8 Megs RAM, hard drive bracket but no drive, NO 1.4M floppy, NuBus, without video card. Price depends on condition and availability, ask; plus shipping.
Hard drives, more memory, are available, the IIcx will take 8 30-pin SIMMs!
Shipping weight 15 lbs.

Mac IIci, (like IIcx but with internal video) 8 Megs RAM, hard drive bracket but no drive, NO 1.4M floppy, NuBus. Priced similar to IIcx, ask for price and availability based on condition. Plus shipping. Shipping weight 15 lbs.

Mac IIci cache card for PDS slot, speeds up programs a bit. $5 with system.

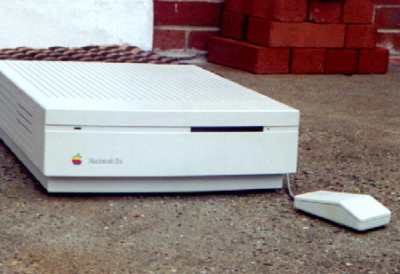

Mac IIsi, 5 Megs RAM, no hard drive but hard drive bracket, NO 1.4M floppy, internal video, no NuBus slots. $49 plus shipping. Wt. 15 lbs.

Mac IIsi CPU cache, math coprocessor, and NuBus slot adapter. Use to add add a NuBus card, for network or video or ?? . $10 plus shipping.

When ordering, please follow this link for ordering information, terms and conditions, and info about orders outside the USA.

Most parts for these systems are available in our parts section, or ask for parts by description and Mac model. Some parts are priced below.
For additional memory, check our memory page.
For NuBus and other internal cards, we have a page for those.
For Ethernet networking, check my network cards section
For hard drives, see the section on other Mac hard drives

For processor accelerators, and faster CPU chips, we have moved them to this linked page. Elsewhere on that page are NuBus expansion cards. If you are looking for a 68020 or 68030 or 68040 processor or coprocessor, go there. I need to know what speed you want, and what system it will go into.

We offer 68882 coprocessors for many of the systems on this page. Typically they use a PLCC package (square, pins wrapped around the edge) for the chip, and the chip is inserted in a socket. Most times the socket is in a network card, so check our network card page for the network card appropriate to your system. Go to the accelerator/processor section of the Web page mentioned above for coprocessors.
