This page was most recent revised date may 3 2010.
![[stdbus card]](std_sbc.jpg)

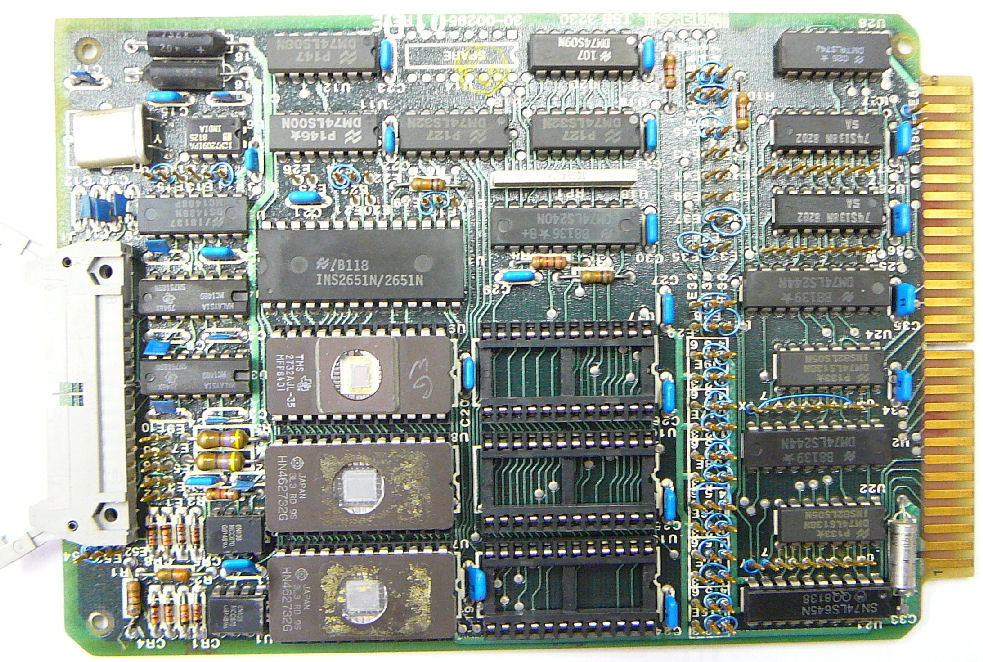

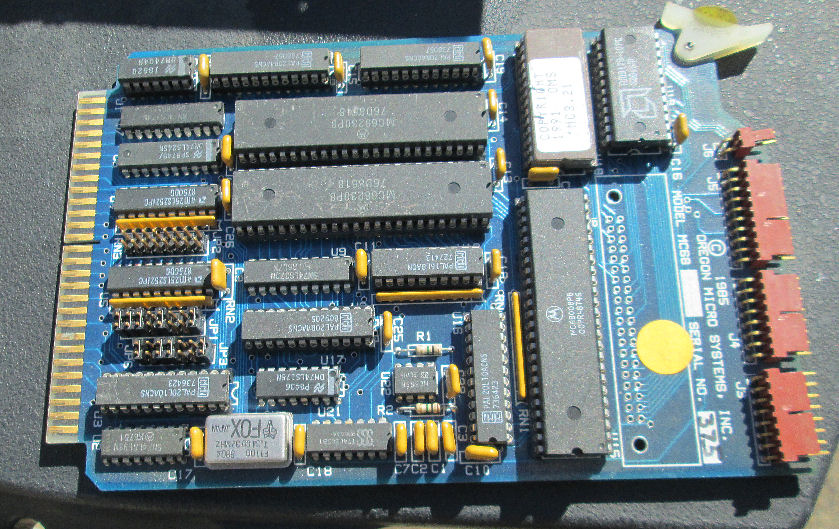

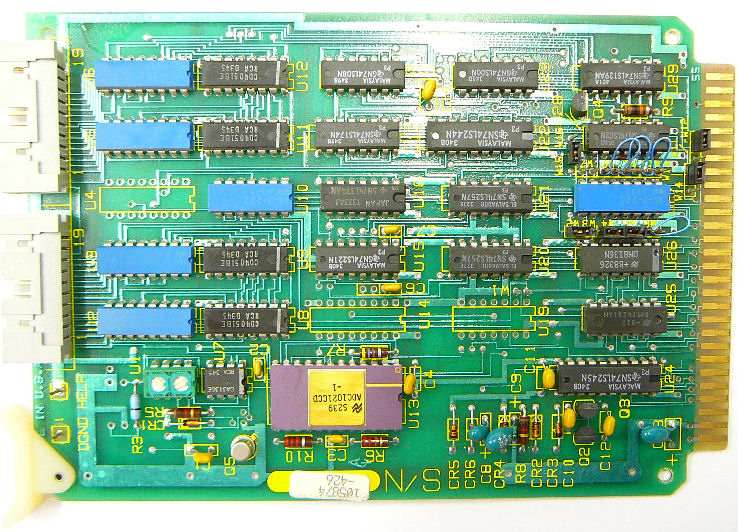

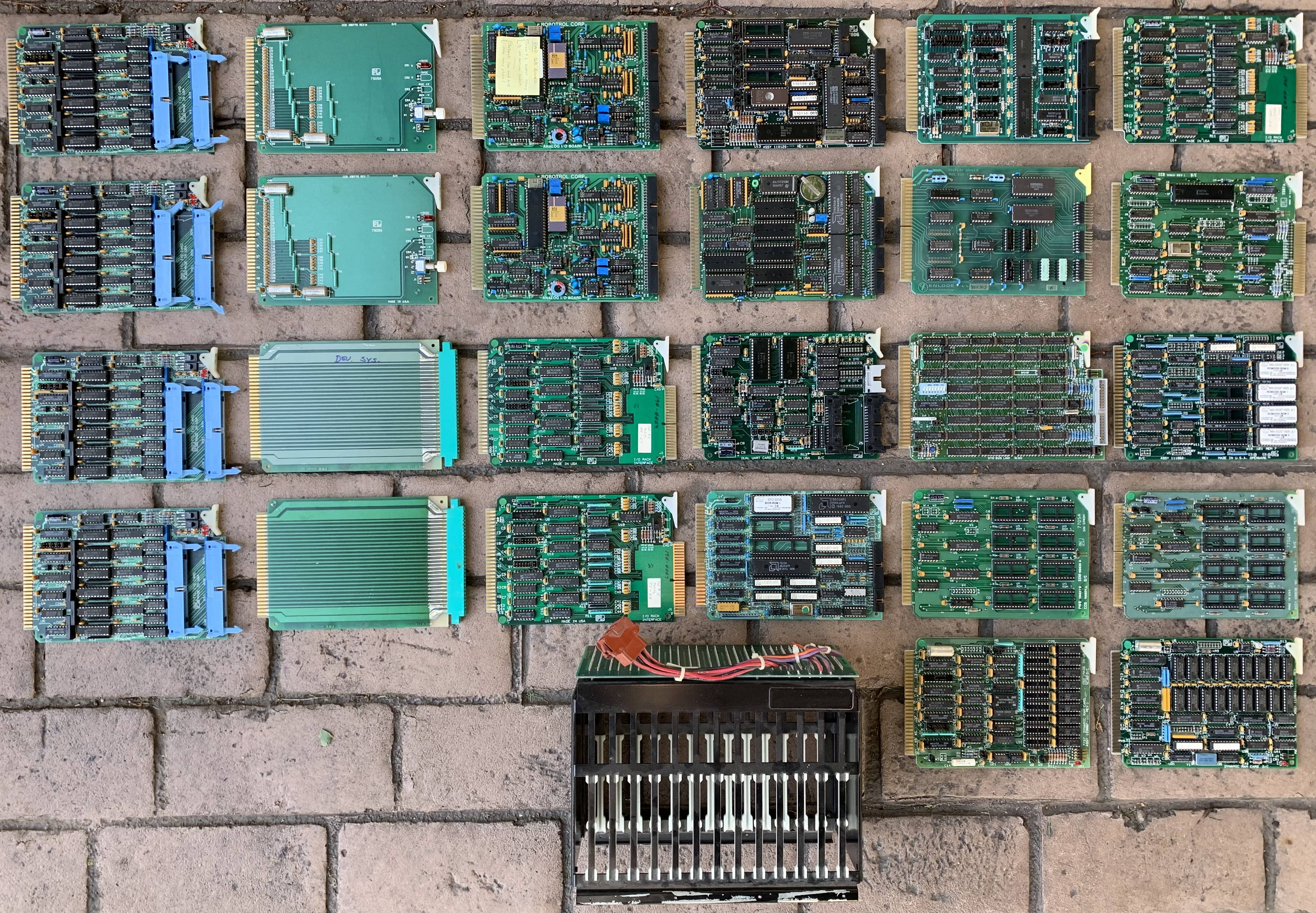

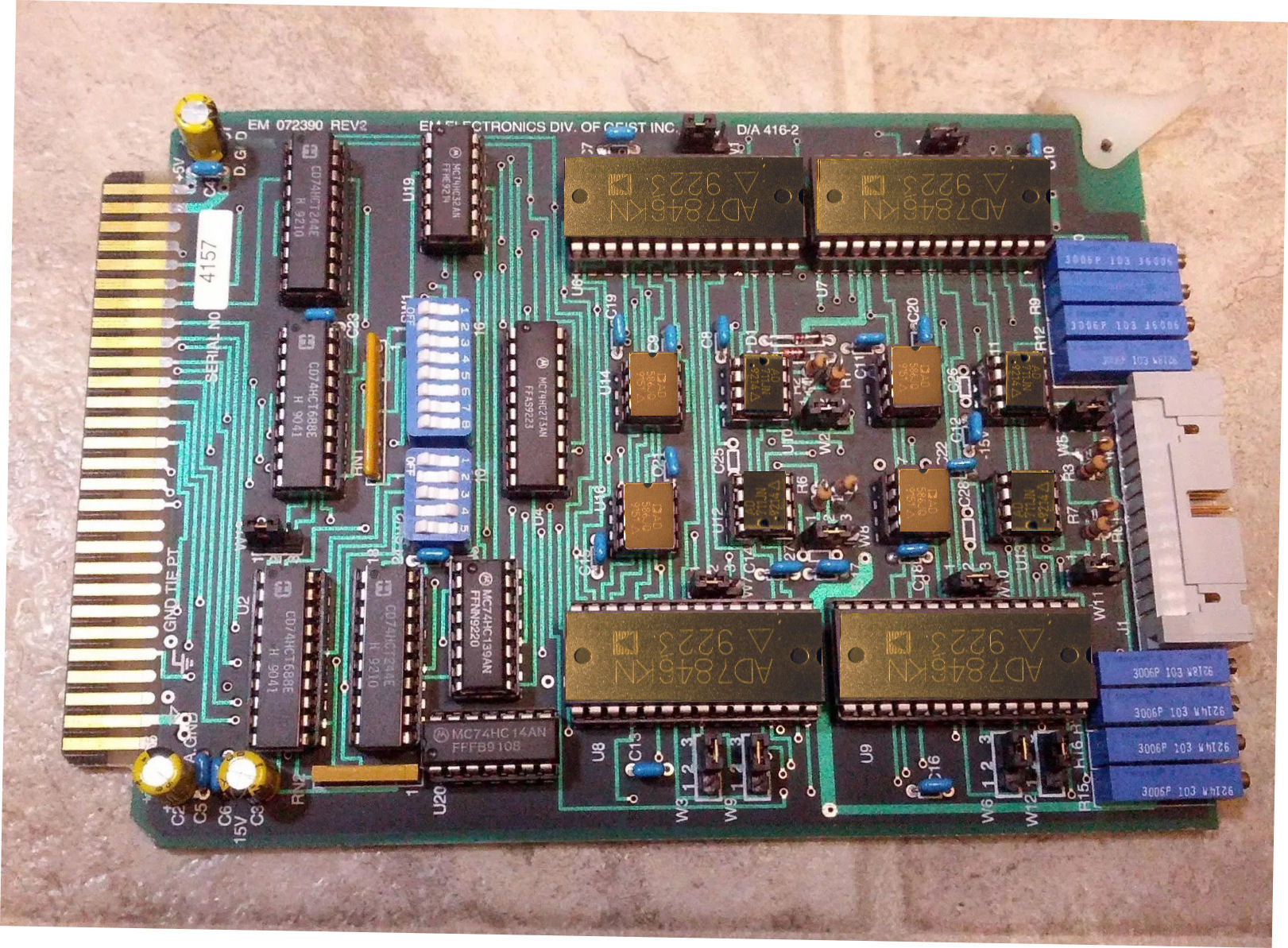

We have a quantity of STD Bus cards, and STDbus chassis. We'll pick more up from time to time, but my
complete STDbus inventory should be on this Web page. They are offered AS-IS NO REFUNDS at modest prices - ask for a quote. These cards are not tested but are generally in good condition and undamaged. We will describe their visual condition.
We also have some original STDbus documentation. Generally we make good photocopies of documents for 20 cents per page plus postage and handling. This price may change without notice.

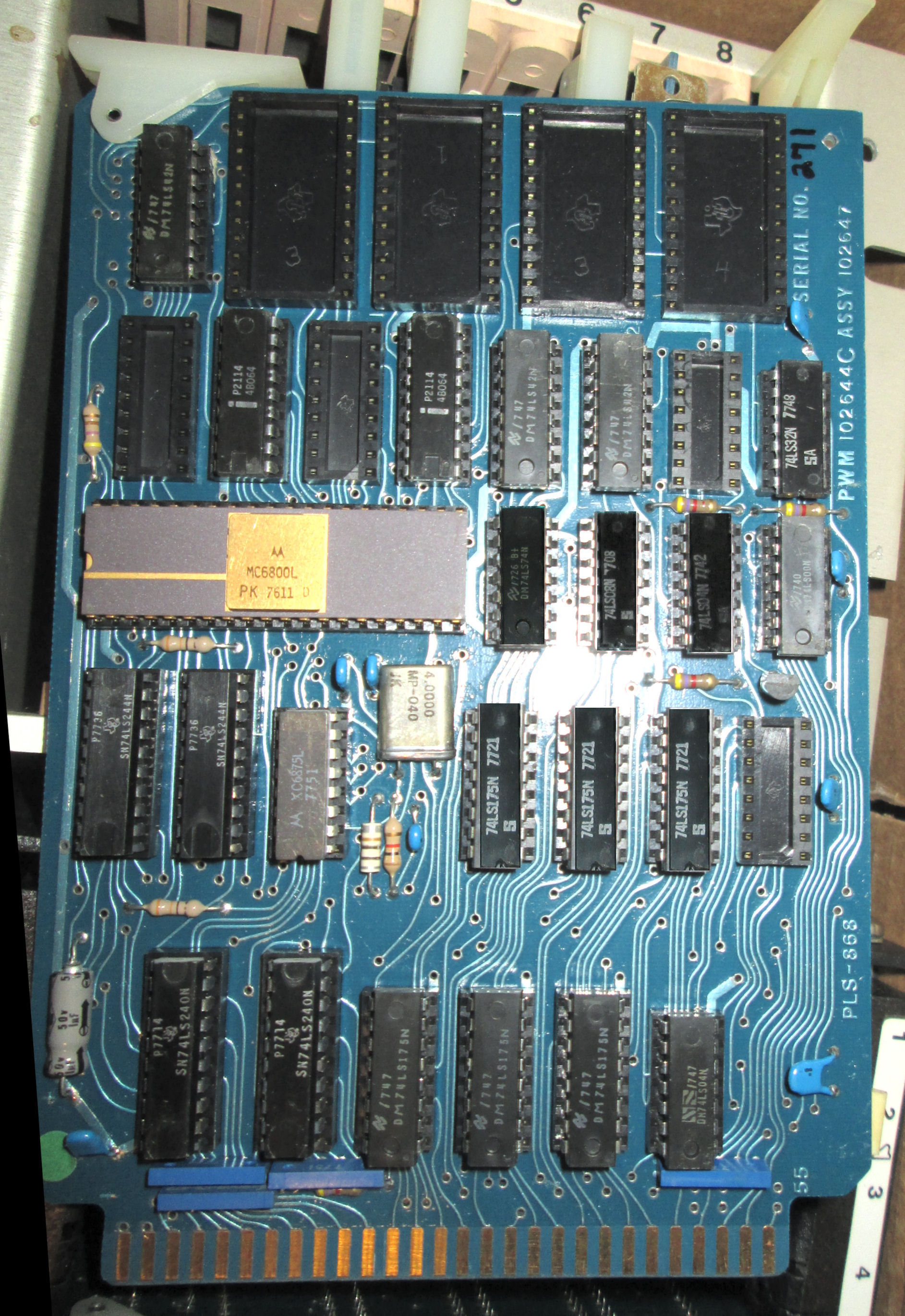

In addition, I have some Intel 4040 based Prolog brand cards and docs. They are not STDbus but they are very similar. These cards and docs are not for sale currently, but I can provide copies of docs for a per-page charge plus postage and handling.
The STDbus was developed in the mid-1970's by ProLog and Mostek as a 56-pin bus on small cards. It became an IEEE standard known as IEEE-961 in 1987. Compatible cards were manufactured by many companies in the 70's and 80's. The bus was extended to 32 bits with a dual-use 136-pin edge connector and called STD-32 in 1990. 56-pin cards became differentiated between STD-Z80 and STD-80. The STD-80 spec provided for 16-bit data paths and 20 address lines by multiplexing data and address, useful for 80286 and 68000-class processors. STD-Z80 refered back to the earlier non-multiplexed design, by then used mostly on Z80 processor-based designs.
Some STD bus cards are documented on these sites:
Versalogic cards
(many Versalogic cards are compatible with Analog Device cards, other brands)
ZiaTech stuff is at this link.
This document describes STDbus history and features.
WinSystems stuff is at this link
We have some other old computer cards as well. Check my STDbus, VME, & Multibus page for links to those items, and to my S-100 and Mac and SGI stuff as well. Here is how to email @ me and ordering instructions.
Herb Johnson
box H-1
ProLog PL 7601 has 8 16-pin DIP sockets for I/O from 74273 and 74244 chips. 1 board
ProLog PL 7604A has 8 16-pin DIP sockets for I/O from 74273 and 74244 chips. 7 boards
VersaLogic FL-7601/4A. has 8 16-pin DIP sockets for I/O from 74273 and 74244 chips. 2 boards
ProLog PL 7702A, 16K memory. 16K of SY2128 static RAM. 1 card
ProLog PL 7702A, 16K memory. 16K of TI 2516 UV erasable ROM. 3 card
ProLog PL 7702A, 16K memory. no ROM or RAM. 2 card

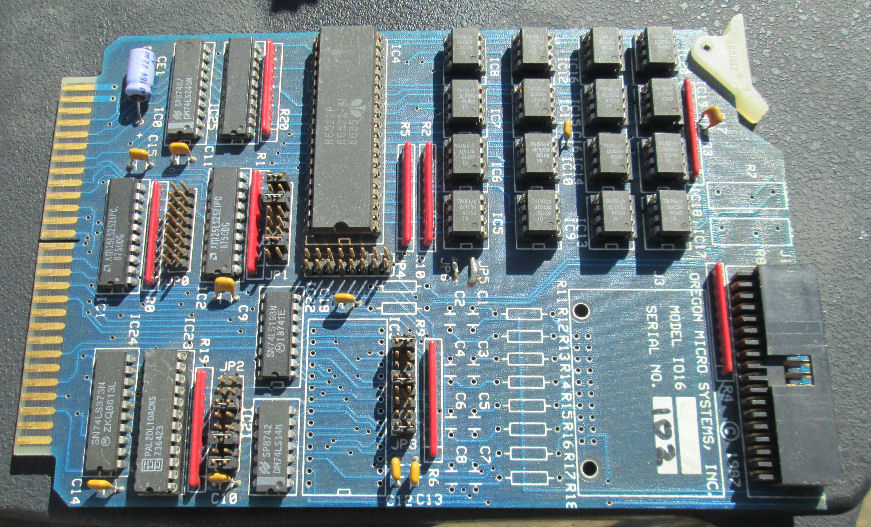

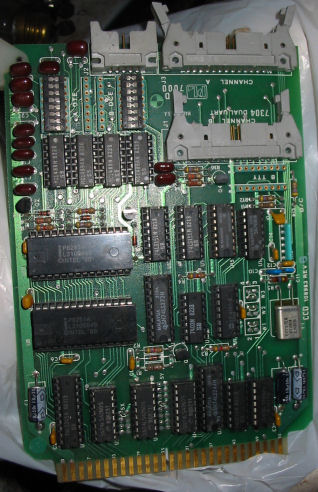

ProLog PL 7304, dual UART 8251A. 2 cards
ProLog 7507 I/O, 1 board
ProLog PL 7709 64K Battery Memory Card. 2 of 8 sockets with 6264L-10 RAMs, battery pack. 2 cards.
ProLog PL 7704, Byte-wide memory card, four cards
New Matrix 7911/RPC Memory Board. RAM/ROM, uses 16 2716-type chips, no memory. 2 cards, with docs
box H-3
ProLog PL 7308B-01 Counter/Timer cards w. P8253-5 chips - four boards
ProLog PL 7308 Counter/Timer cards , 3 boards
ProLog PL 7308A Counter/Timer cards , 1 boards
proprietary I/O cards, each with 20 MOSFETS, four boards
...each has 10 IRF531 N-channel 20A, 60V; 10 MTP8P08 P-channel 8A 80V
Analog Devices, RTI-1260. has AD 949 and 574 module. 1 card
ProLog 7901 Extender cards, three boards
ProLog extender card, ferrite beads, jumpers set to bus, other features, one board
Proprietary DC power cards, P/N 350130-902 rev 53 (with 5V DC to +/-12V 375mA converter) 2 cards
box H-4

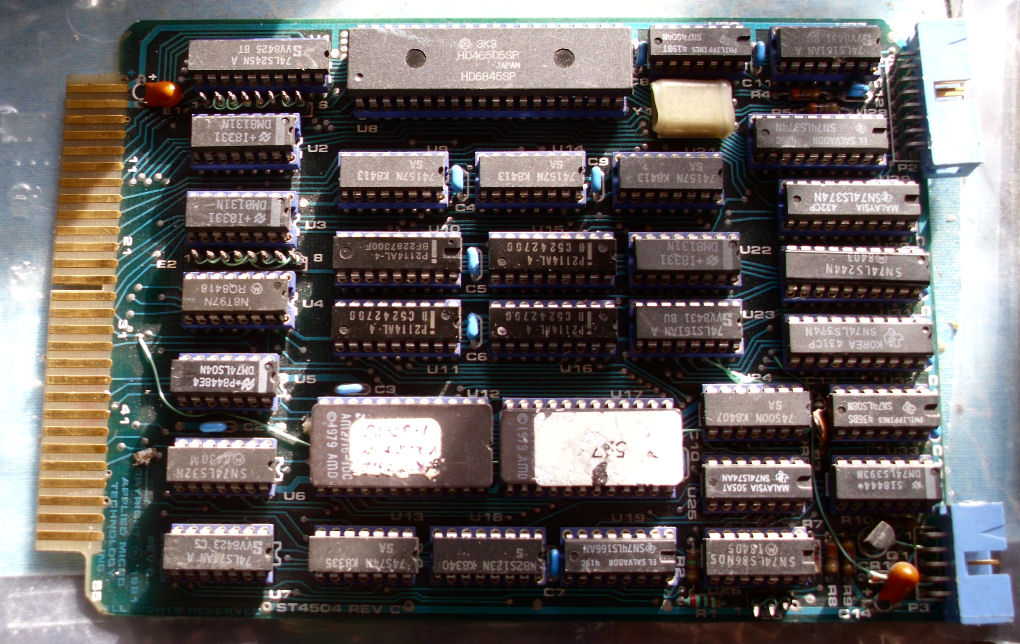

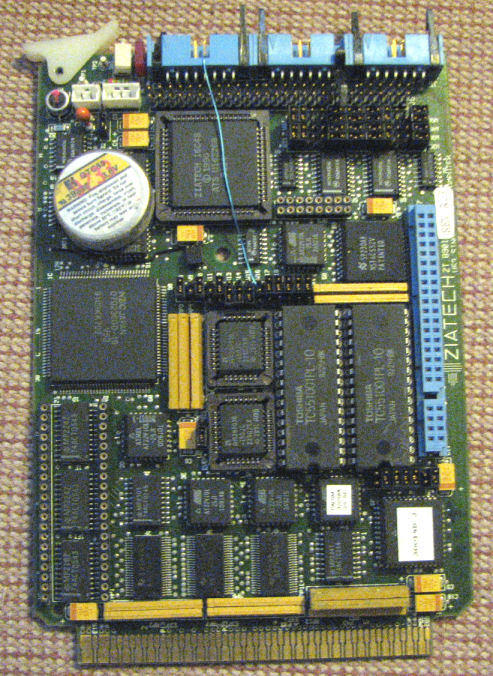

ZiaTech ZT8901 rev A.4 or A.3. V53 processor w/RAM, ROM, etc.. Extended bus interface. 3 cards.
ZiaTech ZT8815 cards, 80188 processor, two boards:
- one rev A with no ROM, RAM, or processor
- one rev B with no ROM or RAM, has 80188 processor
- have diskettes as follows:
--CPU 188 DOS Emulation V2.0
--On Target Debugger Tutorial
--On Target Debugger V 3.0.11
--manuals available, see list below
Computer Dynamics CPU 188 cards with 80188 CPU, four boards
Computer Dynamics DAD-48 A/D cards w. four AD667 chips each, two boards
iSBX card, ZiaTEch ZSBX30 with two 8256 chips, one board
boxed, Vector brand 4610-8-3 STDbus backplane, unassembled kit. 8 slots
The following STDBus cards were acquired in Sept 2008. Many of them are unused and sealed in antistatic bags, some opened and unused or lightly used, a few show some use. We'll tell you what we see when you ask for specific cards. The number on the far right is a count of boards.
BOX S-1

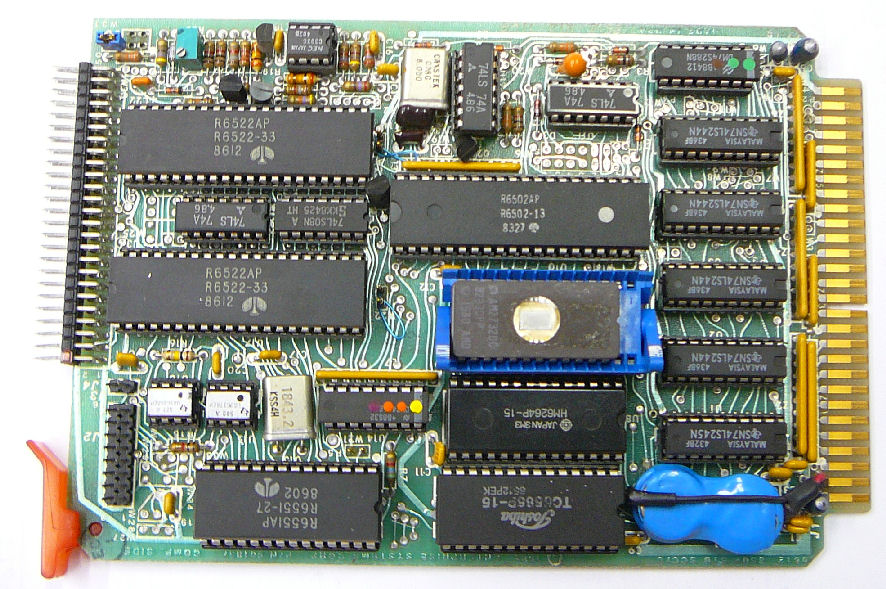

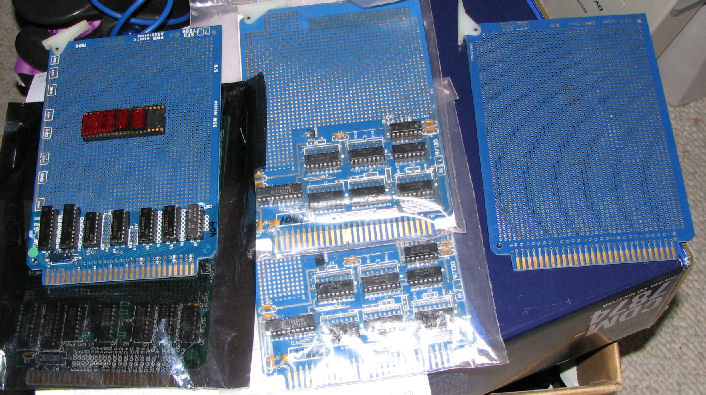

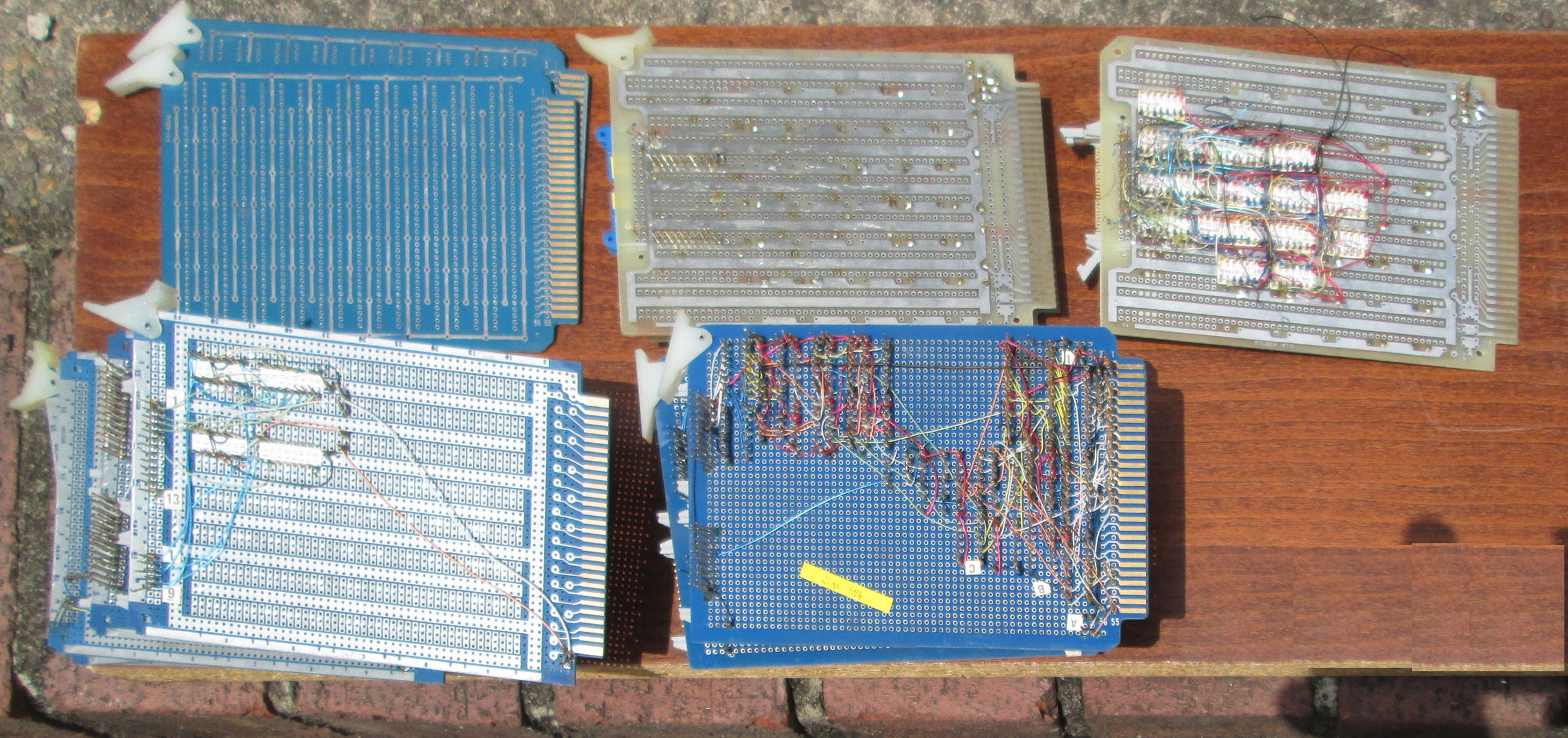

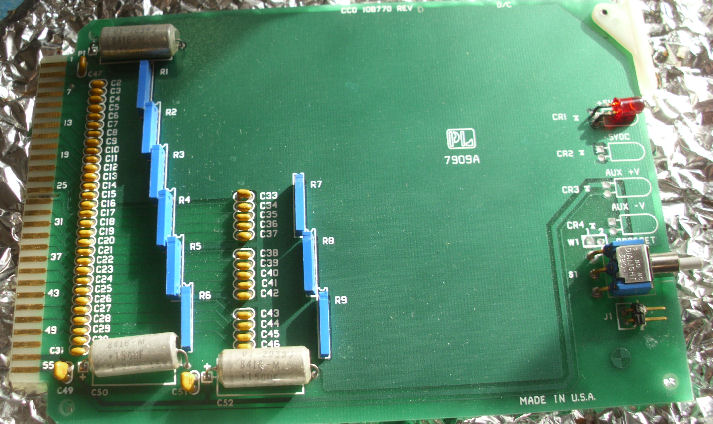

Data Translation 3881-PIO Data Acquisition Module 2 Data Translation EPO85 DT2726 Data Acquisition Module 1 Matrix 7911-064 Extender card 1 MicroLink 97130 Prototype Card 2 MicroLink 97132 Bus Extender 1 ProLog 7303 Keyboard / Display 2 ProLog 7904 Prototype Card, bus interface 2 (1 used) Prolog 7900 prototype card, no interface 1 ProLog 7909A Termination Network / Sw. + LED 8 (noname) Bus Extender 1 Here is an image of STD bus prototype cards; left to right, 7904, 97130, 7900.
BOX S-2

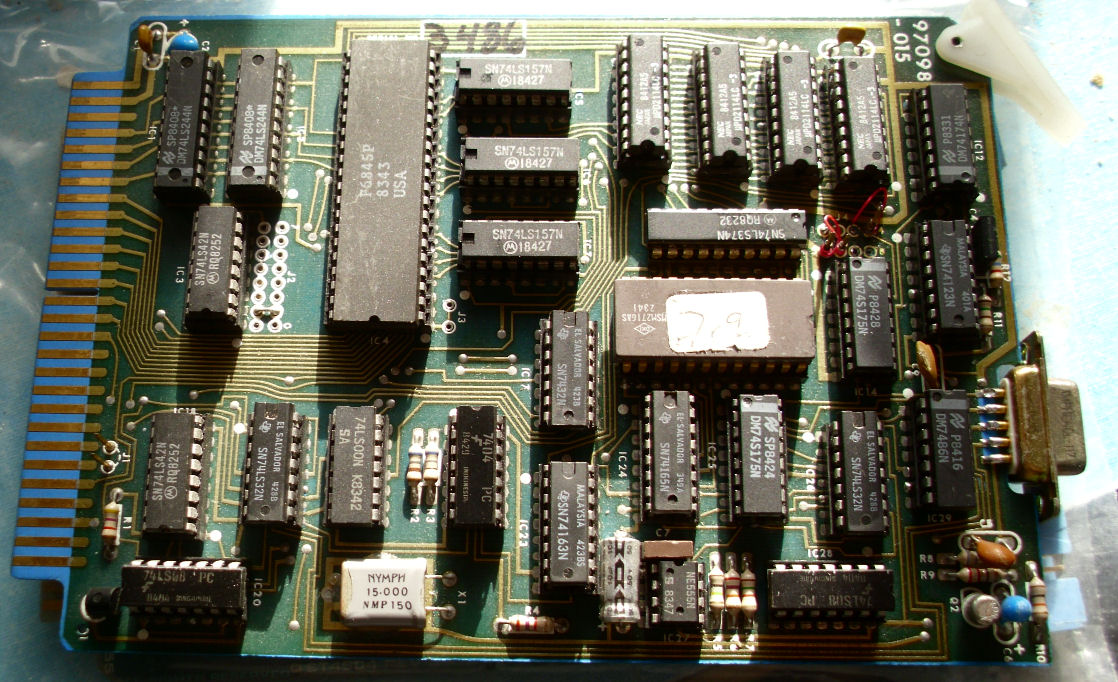

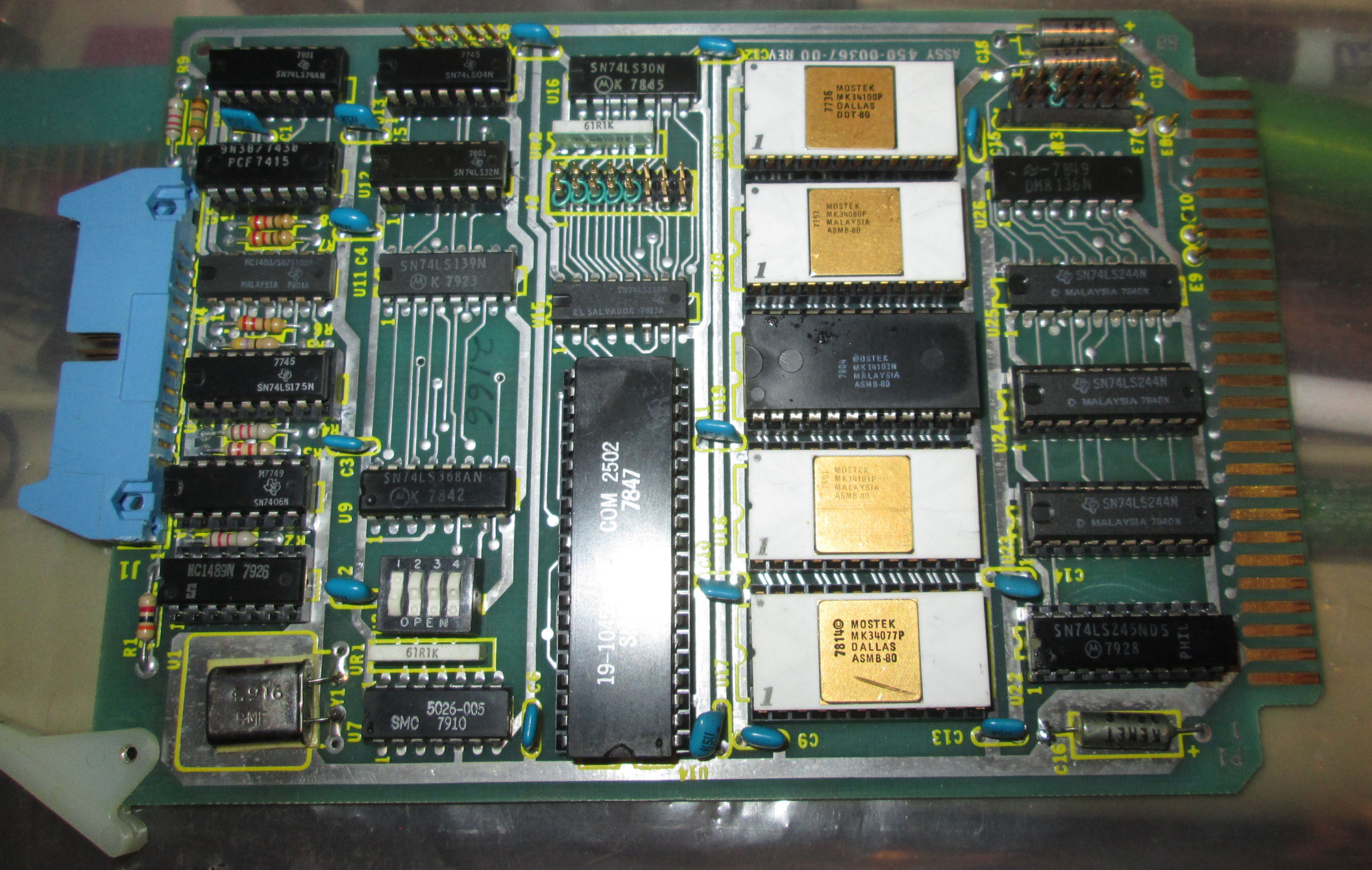

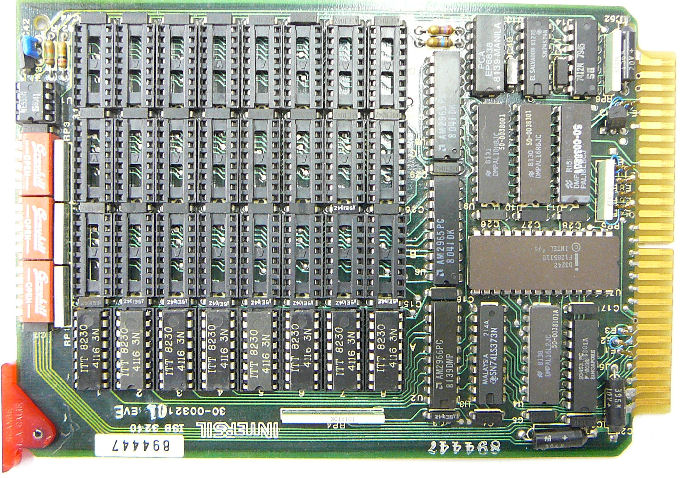

Intelledex 319070B 64k EEPROM (8x Dallas DS1225Y) 1 Intersil ISB-3101 Z80 CPU (1 w/ bad socket) 3 Matrix 7911-AC ACIA 1 Matrix 7911-RPC SRAM 2 MicroLink 97098-15 Video (6845 CRT + 9pin D conn) 1 MicroLink 97147 Z80A CPU 1 MicroLink 97160 6ch. UART 1 MicroSystems/Mostek MDX CPUIIA CPU ?? No processor installed 1 MicroSystems/Mostek MX-BCLK Battery Backed Clock? (Battery L ? MicroSystems/Mostek SB8412 Z80 CPU 1 MicroSystems/Mostek Z80 PIO 1 National GPIB-961P GPIB Interface 2 Penn Microsystems Memory? 1 ProLog 7801 8085 CPU 1 ProLog 7863 8088 CPU 1 prolog 7885A 8085 CPU 1 ProLog 7903 Prototype Card 1 Transwave K8073 8073 CPU 1 WIN Systems MCM-CLK Realtime Clock 1
BOX S-3
ProLog 7308 Counter/Timer 10 ProLog 7604A TTL I/O 7 ProLog 7702A 16k Memory 2 ProLog 7705A 32kx8 EPROM 2 ProLog 7706-04L Battery Backed SRAM 1 ProLog 7707-128 DRAM 1
BOX S-4
Ziatech ZT8812 8088 CPU 3 Ziatech ZT8820(B,C,D,E)SRAM / EPROM 8 Ziatech ZT8821 Memory 4 Ziatech ZT8823 Memory 1 Ziatech ZT8830 8088 CPU 1 Ziatech ZT8845 I/O 1
Box S-5
MicroAide 80-023 Opto Input 1 ProLog 7304 Dual UART 5 ProLog 7603 Input Gate 1 Prolog 7301 RS232 & current loop 1 Prolog 7602 output card 1 Prolog 7503 HV optoisolator 3
BOX S-6
ProLog 7601 I/O 2 ProLog 7605 I/O 17 Enlode 238-1 56-Line Driver 2
Enclosures & Frames

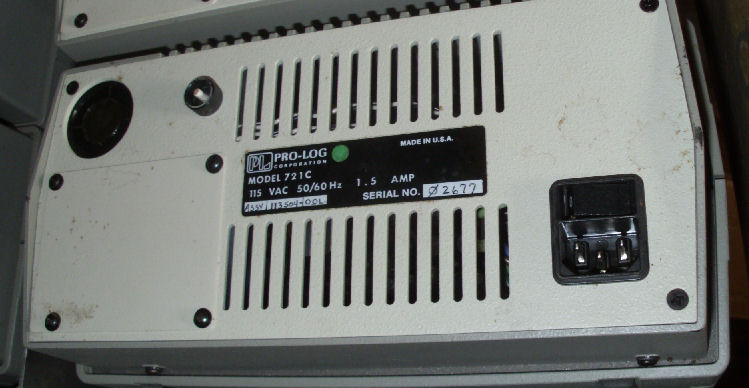

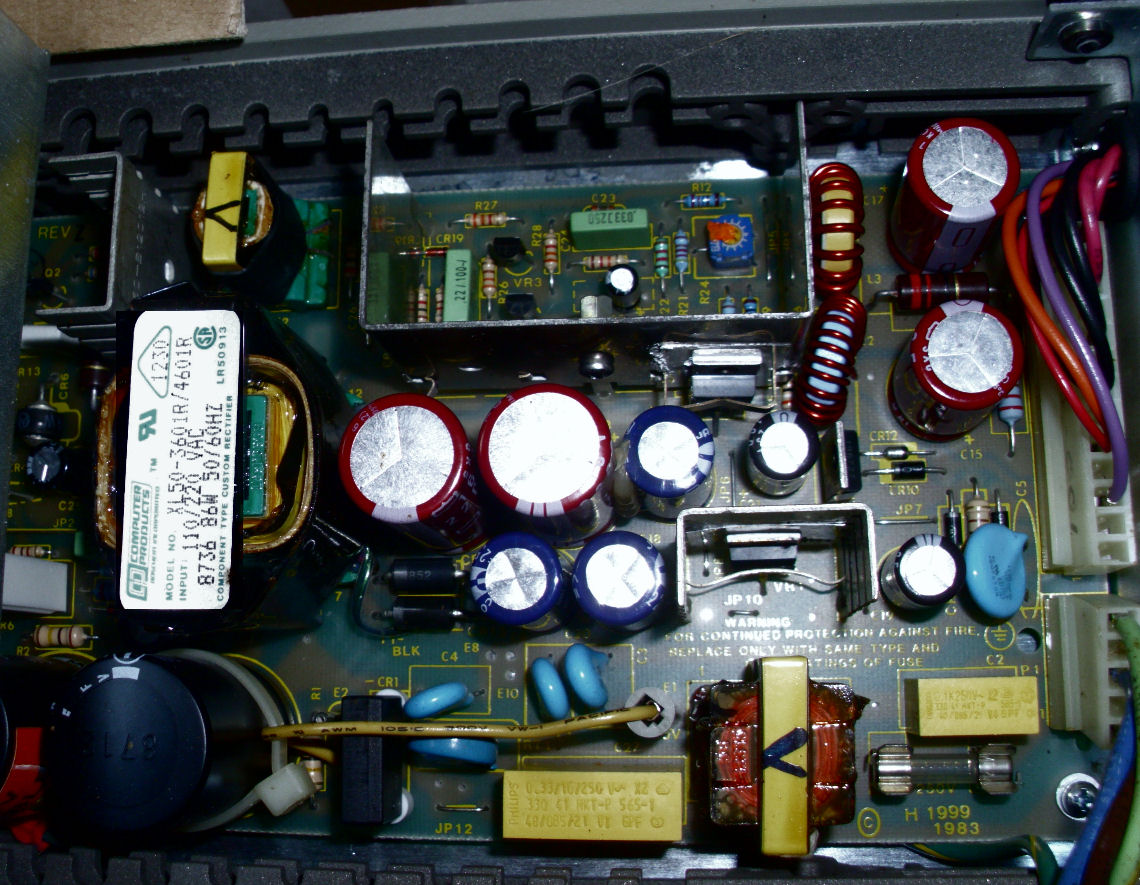

ProLog 721C Enclosure w/ Power Supply 4 ProLog BR08H Open Frame w/ Backplane 1

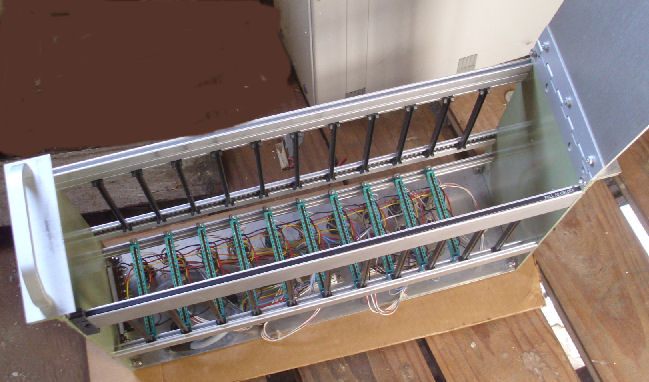

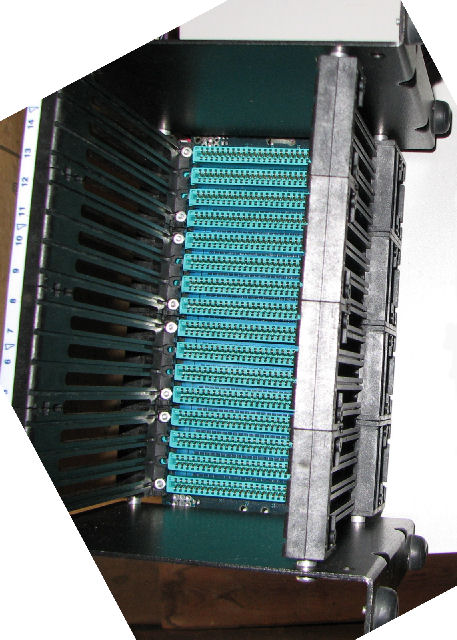

STDbus card cage with 16 slots.

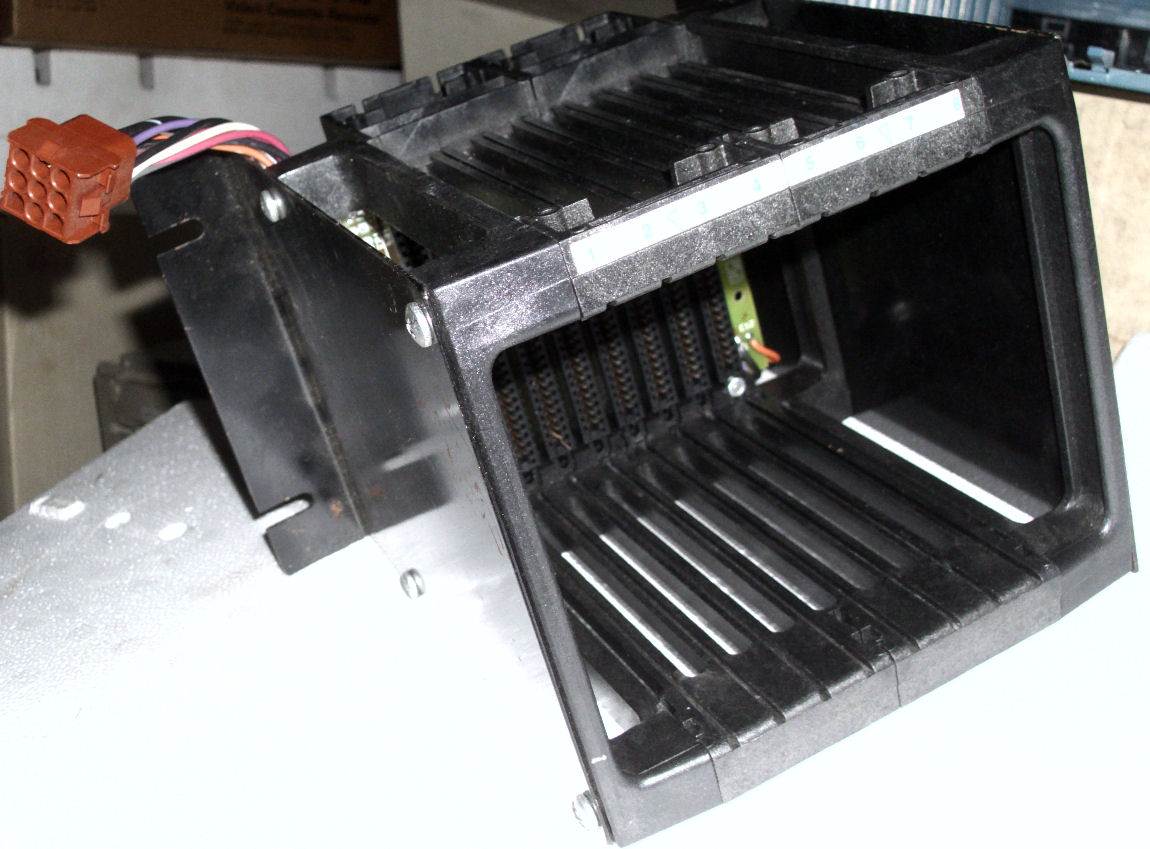

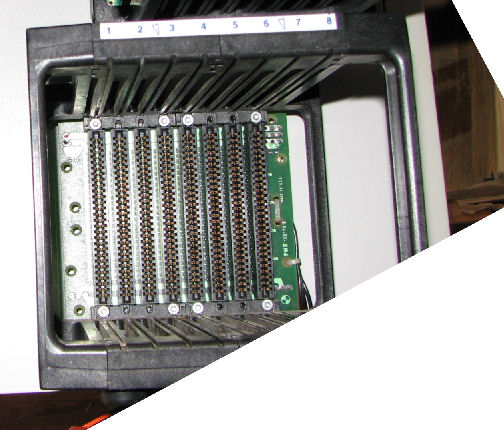

STDbus card cage with 8 slots. We have a few of these.

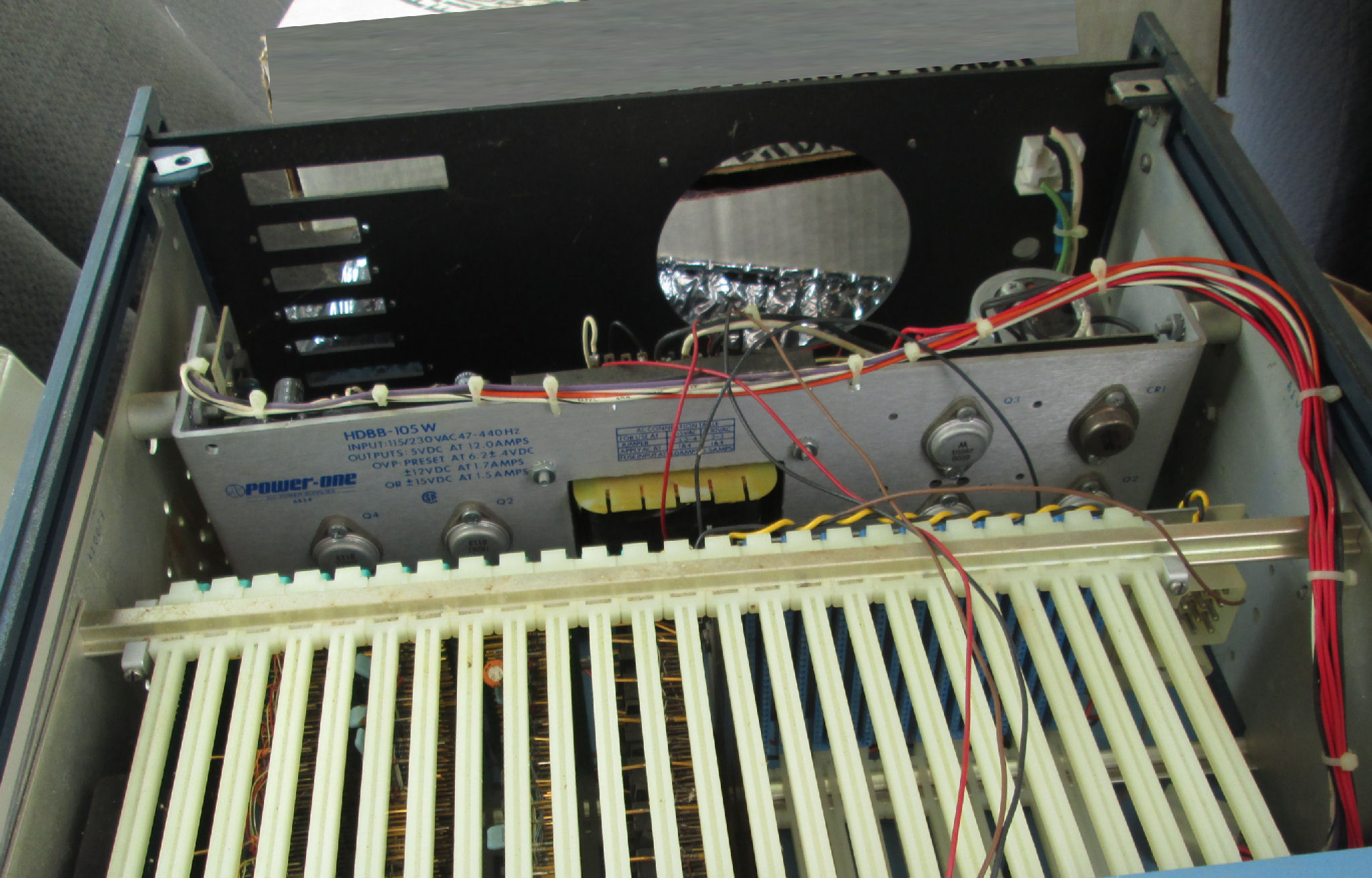

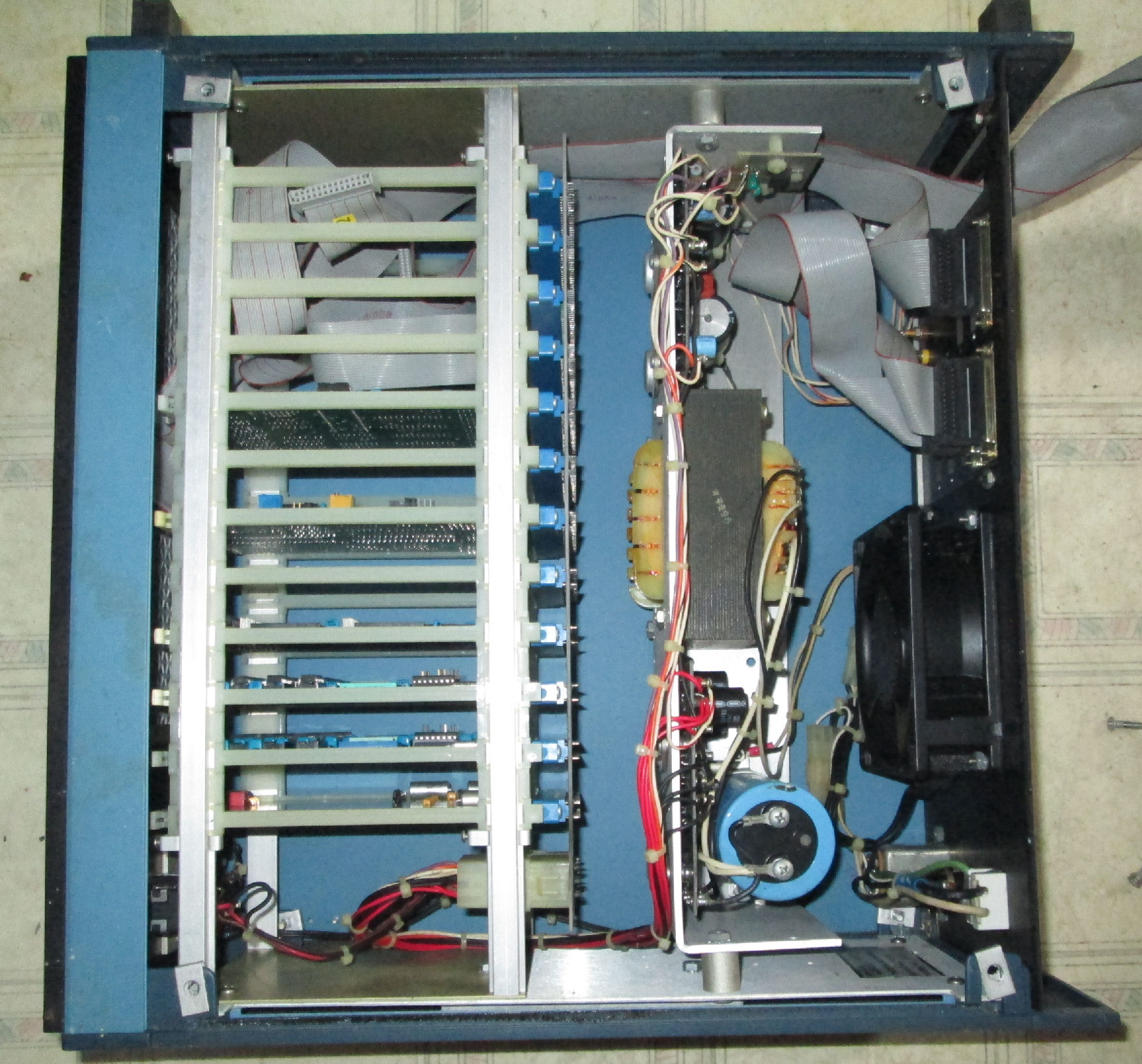

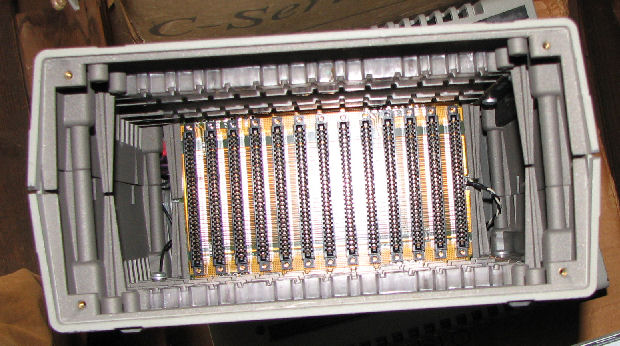

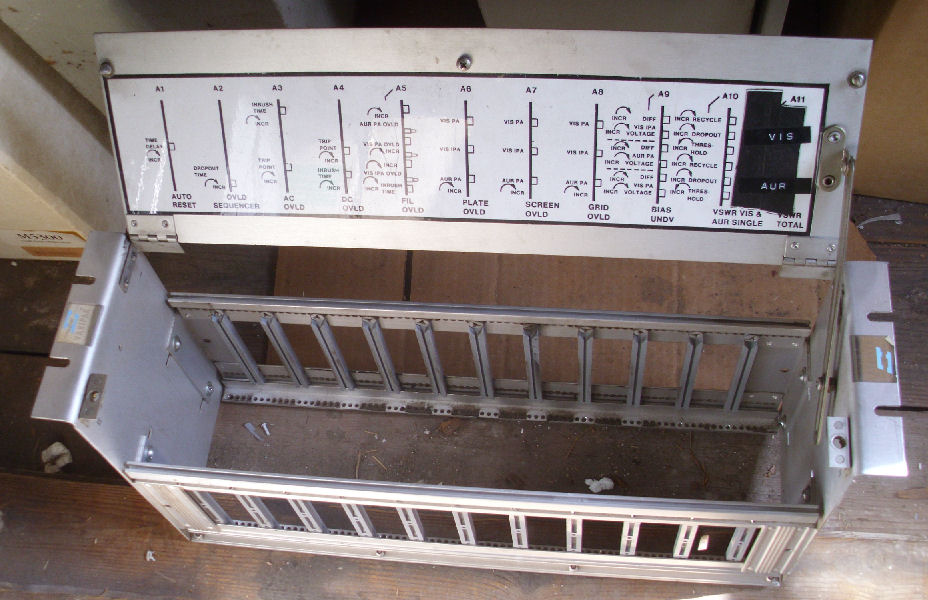

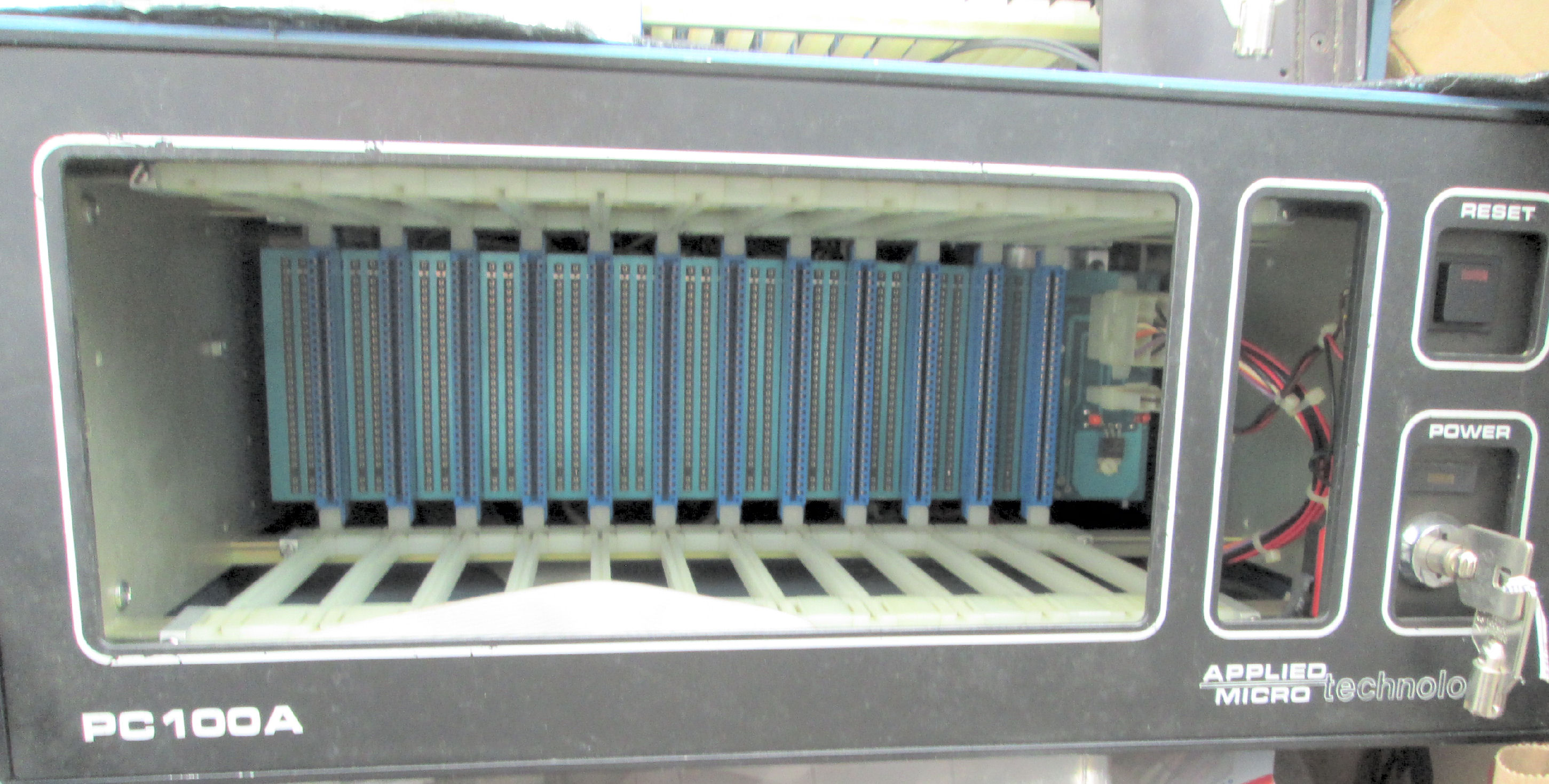

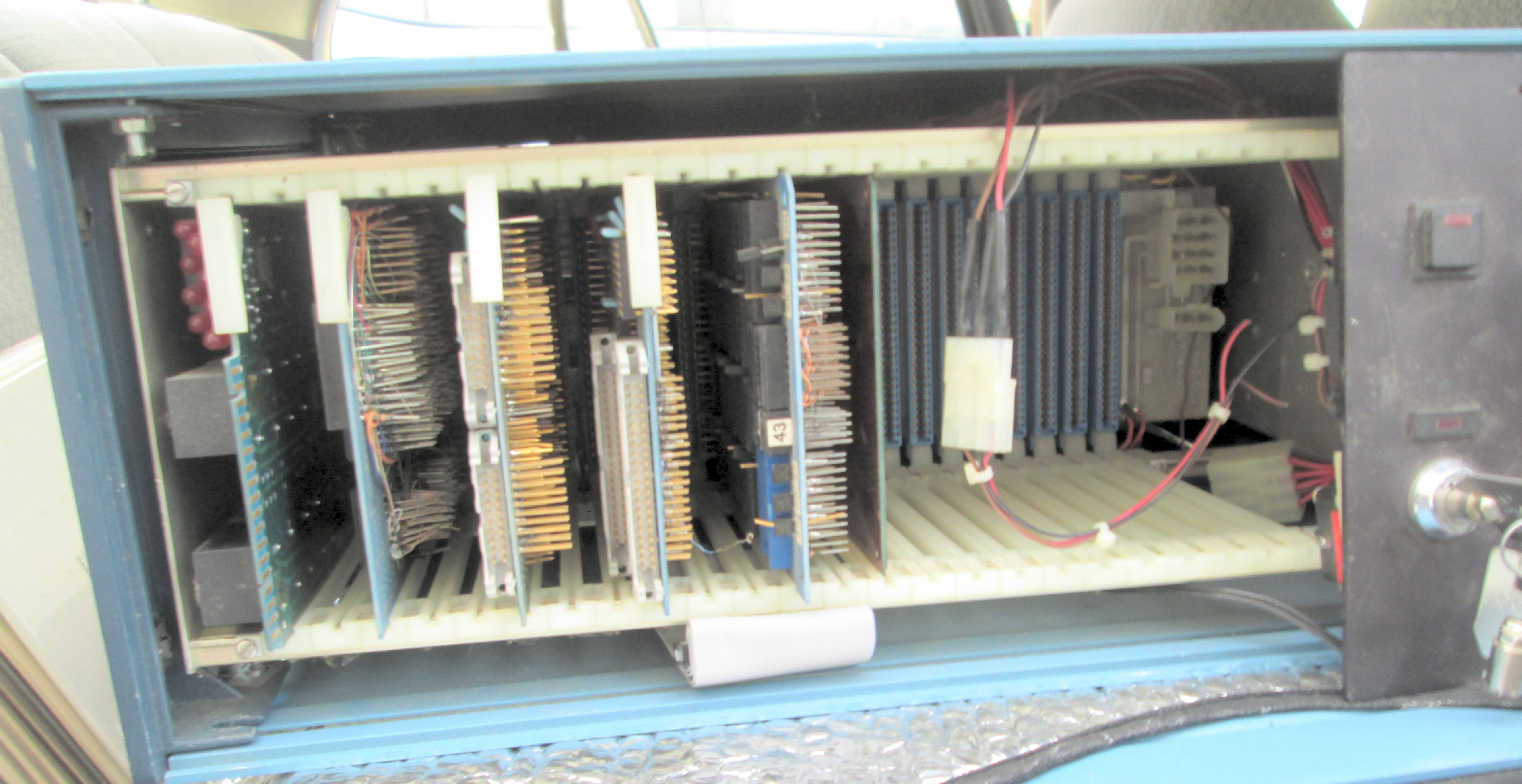

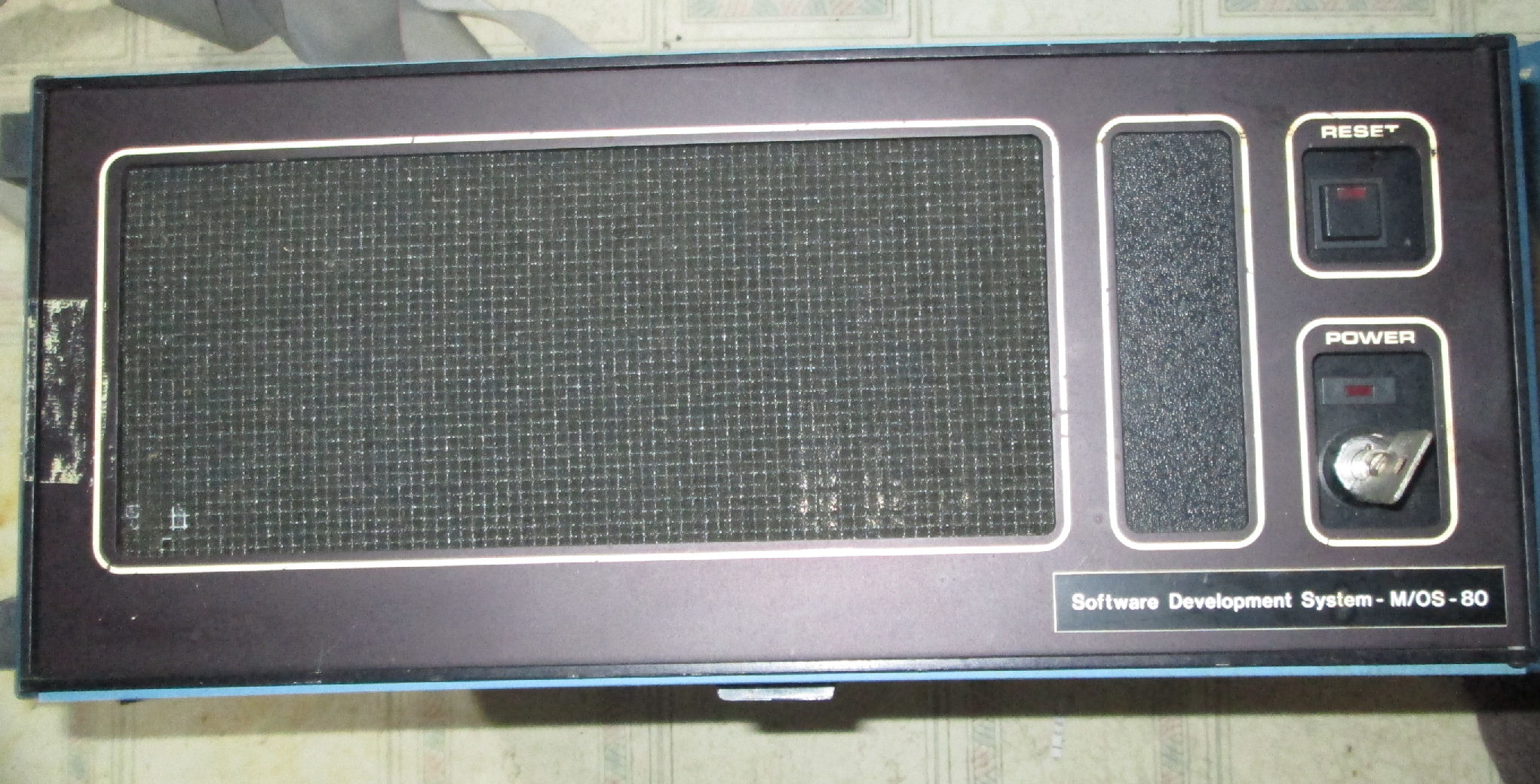

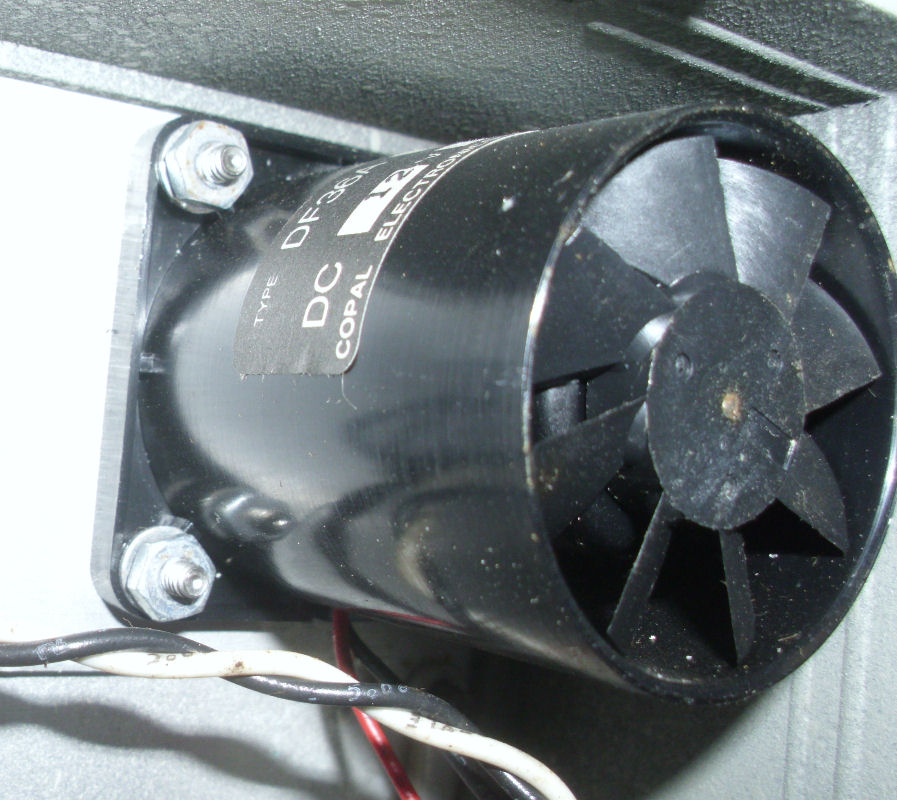

Prolog STDbus card cage in cabinet, probably BR16-T 7000 CCD 107488 Rev B, with 13 slots. We have four of these.

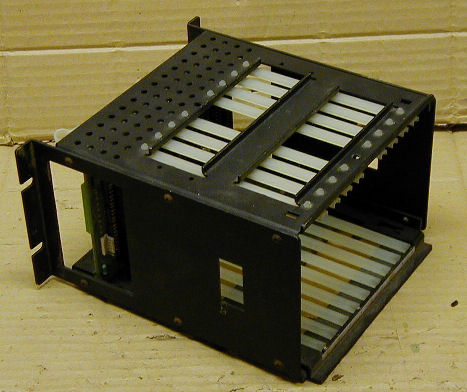

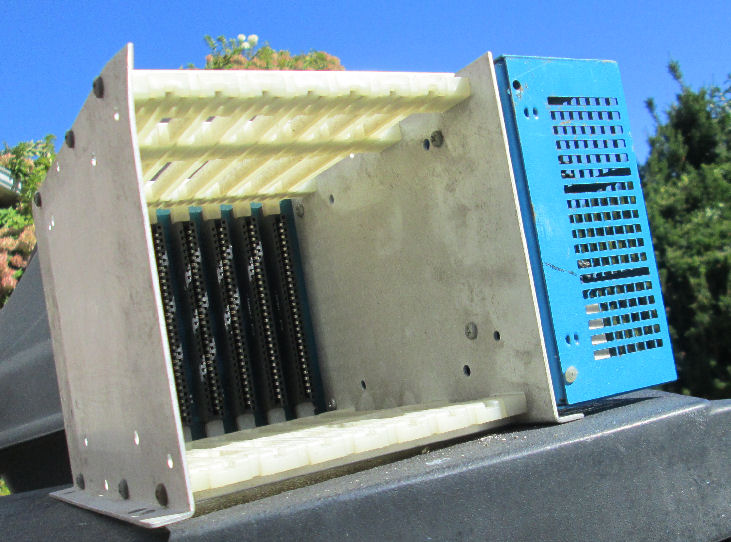

6-slot STDbus chassis. Has 4-wire DC connector. Ask for details. 3 cages & backplanes.
Ziatech ZT 8860 Card Cage, populated with several cards, under evaluation.

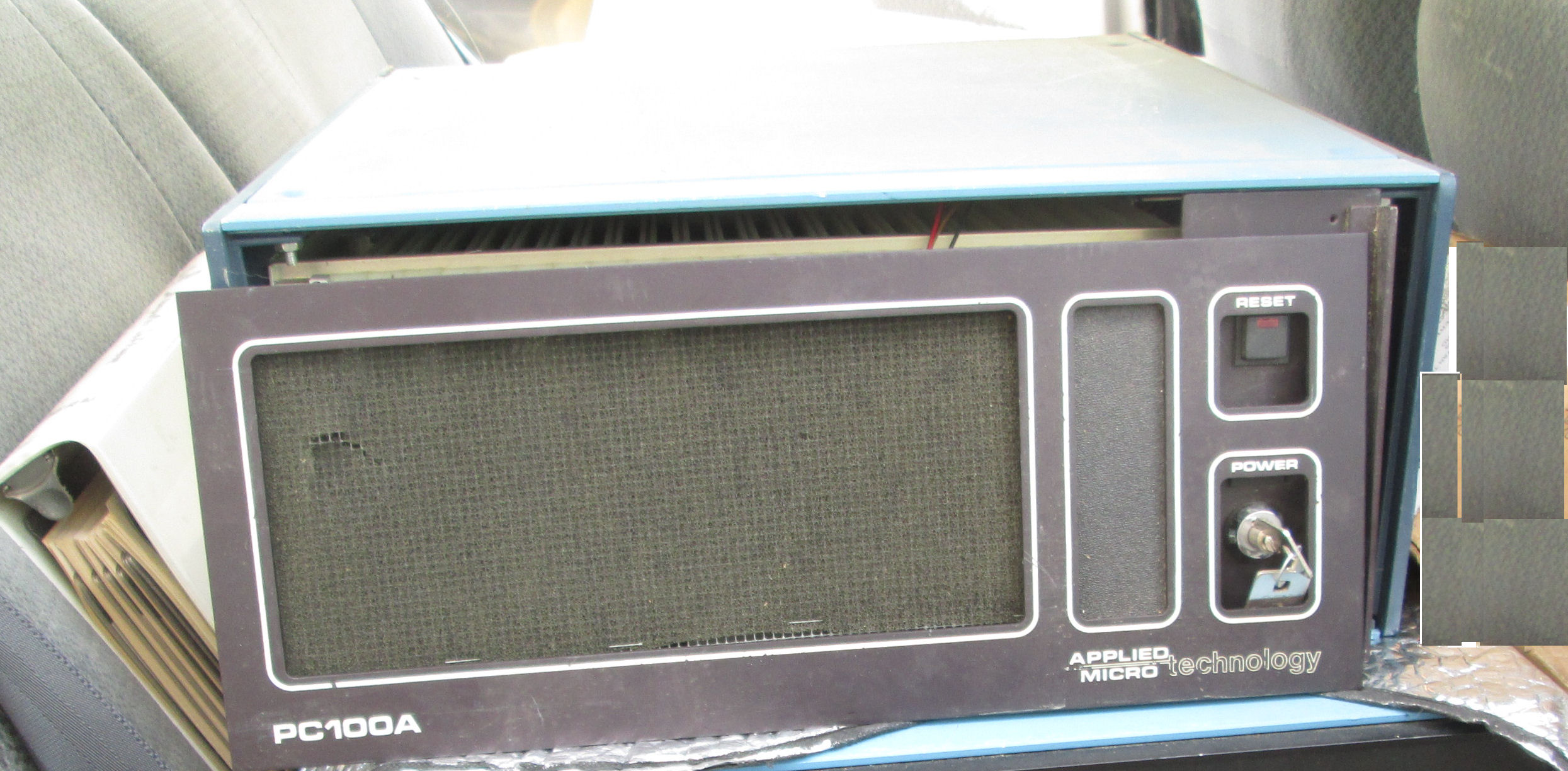

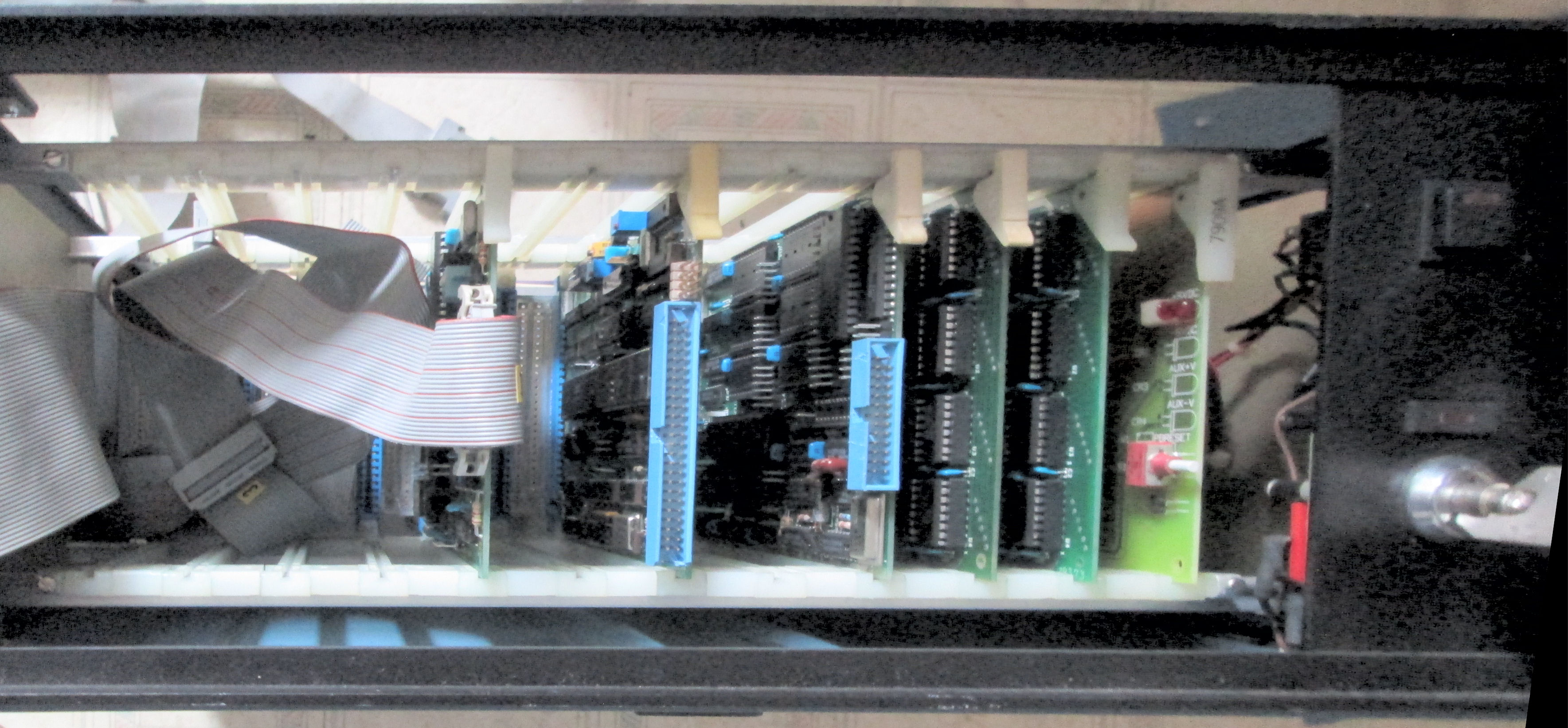

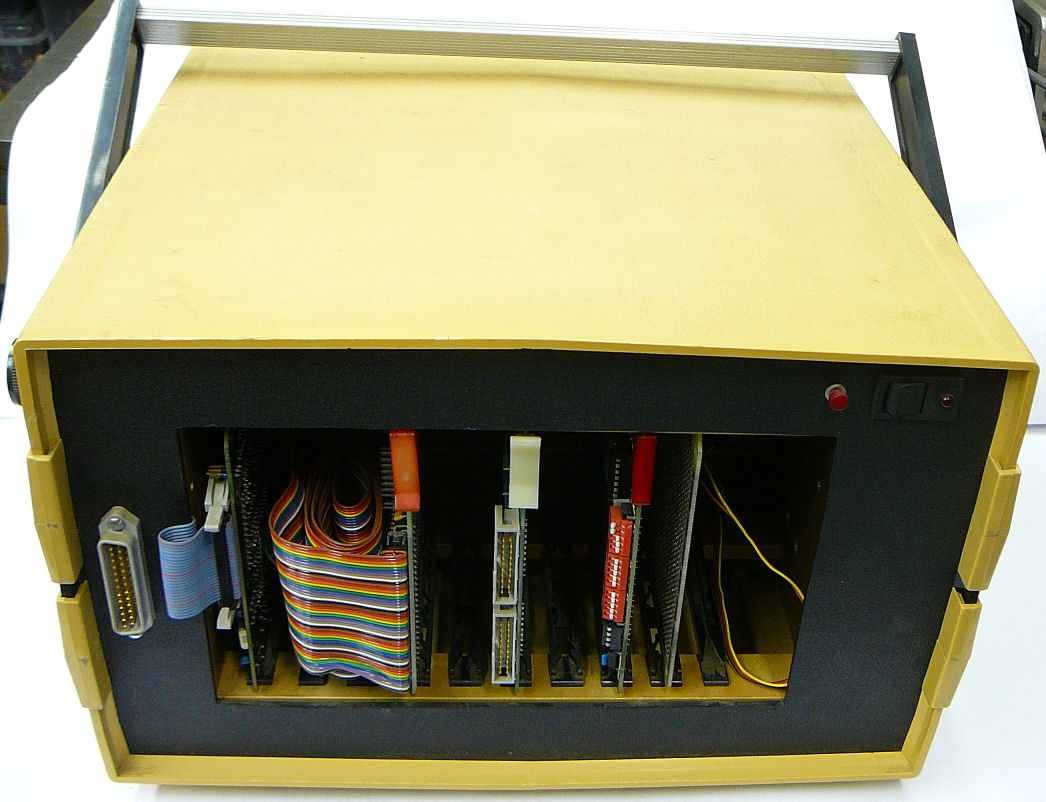

We may have a few other STDbus card cages or cabinets, ask.

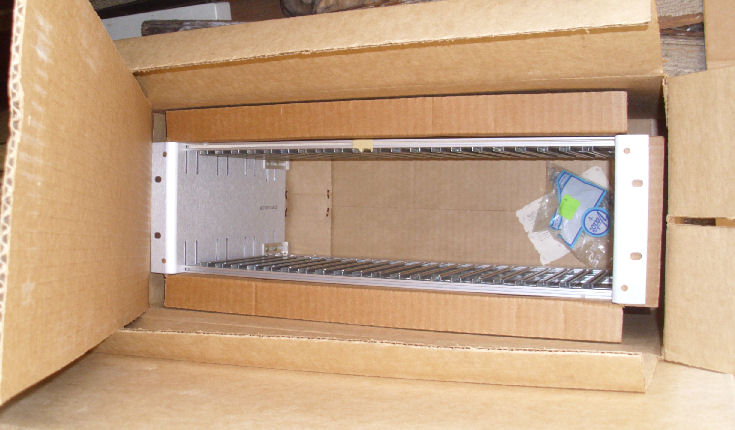

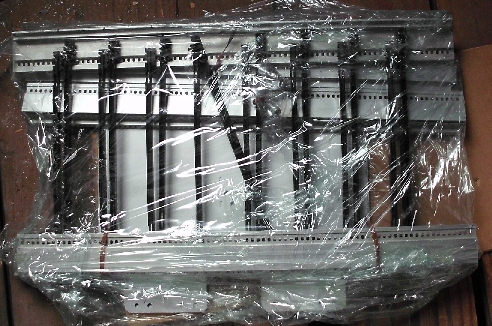

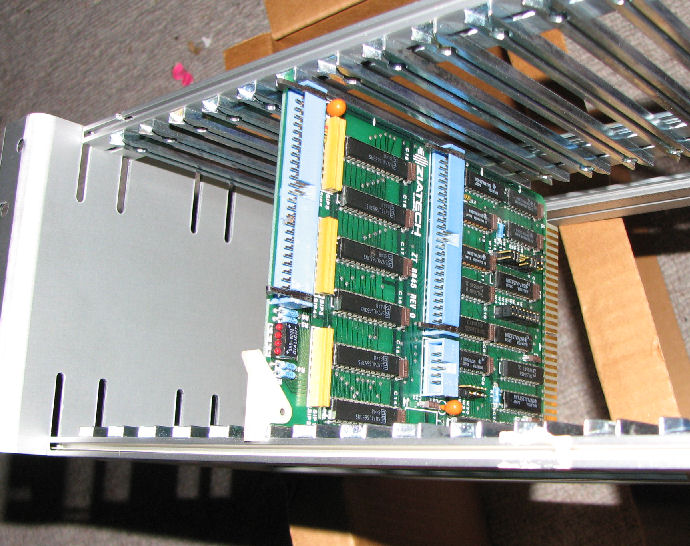

Vector brand CCF-13 card cages, will hold STDbus cards. CCF-13 card cages equivalent to today's Vector brand CCA13M/90 cage with metal card guides. See Vector's description for details. 7 cages, unused in original shipping boxes. Cage is 5.23" high, 9" deep, and 19" long (rack mount). Box is slightly larger. Cage holds 21 cards in metal slots 3/4" apart. Supports 4.5" x 6.5" circuit boards such as STDbus cards (photo) or classic Vector 3662A6 or 3662-9 with 44 pin edge connectors. Backplane not included. $49 plus shipping each.
Documentation set #1:
Analog Devices User's Manual RTI-1225, RTI-1226
Pro Log Series 7000 STD Bus Tech Man.

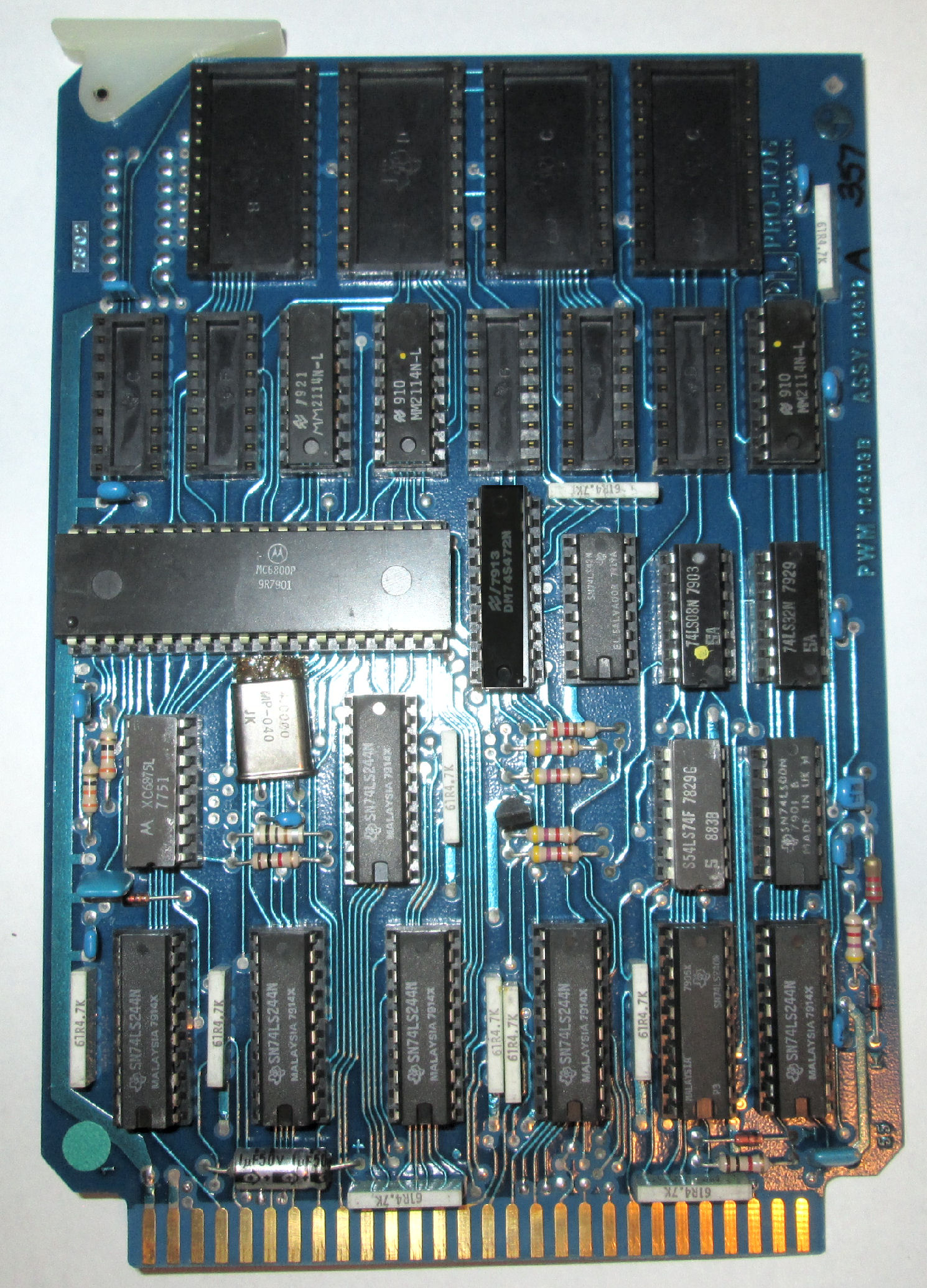

--includes brief data sheets for 7101, 7102, 7301, 7502, 7503, 7601, 7603, 7604,
--7701, 7702, 7801, 7802, 7803, 7901, 7902, 7904
Pro Log STD 7000 7308 counter /timer card user manual (and 7308A)
(2) VersaLogic 1990 Std Bus Products Catalog
--ProLog 7X00 series matches to VersaLogic VL7X00 series
Computer Dynamics CPU-188 Hardware Ref. Manual
Computer Dynamics CPU-188 Hardware Programming
(copy) ProLog System 2 Model 30, general description
--includes very brief info on 78XX products, notes, 1988 price list
Data sheets for IRF531, MTP8P08 MOSFETs
Documentation set #2:
Analog Devices RTI-1226, RTI-1225 A/D Converter Braemar Compute Devices CM600/8741A Computer Dynamics CPU-9 Z80 Board Enlode Product Catalog - 1/2 page briefs on following cards: 20, 210, 213, 214, 215, 230, 235, 236, 238, 239, 240, 241, 24, 300, 310, 339 Intersil, GE ISB-3101 Z80 CPU ISB-3331 3 channel PIO card ISB-3710 data channel serial I/O ISB-3711 data channel serial I/O MicroLink STD-089 97098-15 Video (6845 CRT + 9pin D conn) MicroLink STD-130 97130 Prototype Card MicroLink SDD-160 97160 6ch. UART MicroSystems/Mostek MDX-422N dual channel RS-422 serial interface MicroSystems/Mostek MDX-PIO Micro/Sys Product binder with 2, 4, 6 pages per product: SB 8414, 8020, 8010, 8082, 8088, 8270, 8122, 8130, 8301, 8320 8301, 8303, 8341, 8345, 8355, 8270, 8326, 8466, 8500, 8510 8520, 8740, 8412, 8414, 8420, 8422, 8451, 8602, 8602, 81C20, 84C23, 84C6 PS 8200, ECX 188 computer Penn MicroSystems PM2212A RAM card prolog STDBus Tech manual and Product Catalog 1983 (feb) Prolog 722 STDBus Box Disk Package Lynx1 data transfer users manual ProLog 7303 Keyboard / Display ProLog 7308 Counter/Timer 7320 priority Interrupt 7388 floppy controller manual 7401 thermocouple card ProLog 7501 Medium Power Output 7502 SPST relay output card 7503 7506 opto isolated card 7507 8080A processor ProLog 7601, 7603, 7604 I/O 76C04 CMOS input/output card ProLog 7605 I/O 7605-0 7605-1 programmable TTL I/O cards 7606 parallel I/O card 7701 16K static memory ProLog 7702A 16k Memory 77C02 16K bytewide memory 7704 bytewide memory ProLog 7705A 32kx8 EPROM ProLog 7706-04L Battery Backed SRAM ProLog 7707-128 DRAM 77C08 cmos 64K 7709 64K memory 7712 512K memory 7802 6800 CPU 7803 Z80 processor card 7804 Z80A 7805 8080A 7806 7807 Z80 card ProLog 7806-1 Z80A Multifunction 78C13 Z80 processor card 7815 8085A Processor Card 78C15 80C85 Processor Card 7901 I/O utility card (schematic only) ProLog 7904 Prototype Card ProLog 7909 Termination Network / Sw. + LED
Herb Johnson
