Vector Graphic S-100 Documentation and Tech Info

Vector Graphic system

Note: the company name is "Vector Graphic Inc."; the name and the product lables do not have a plural "s". VG was an early S-100 microcomputer company, which produced several systems into the mid-1980's. As they used many Micropolis products, there are some Vector Graphic manuals in my Micropolis manual Web page.

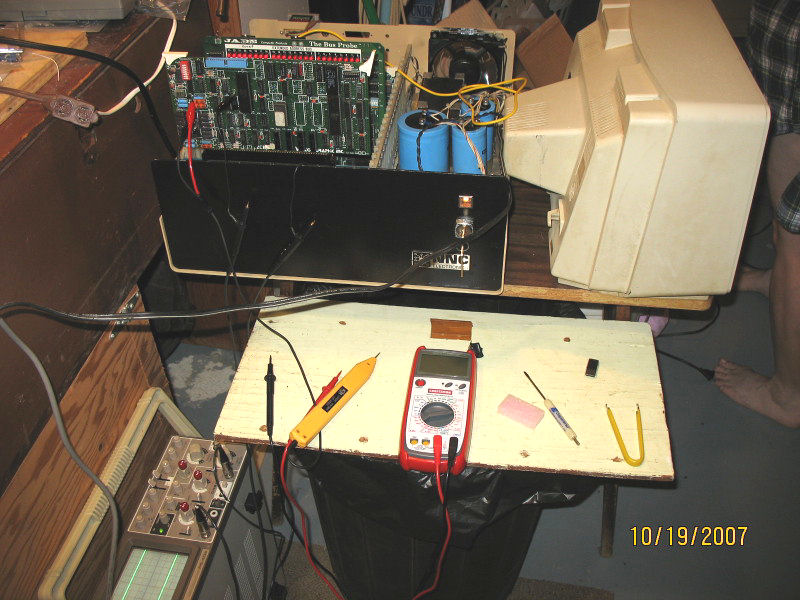

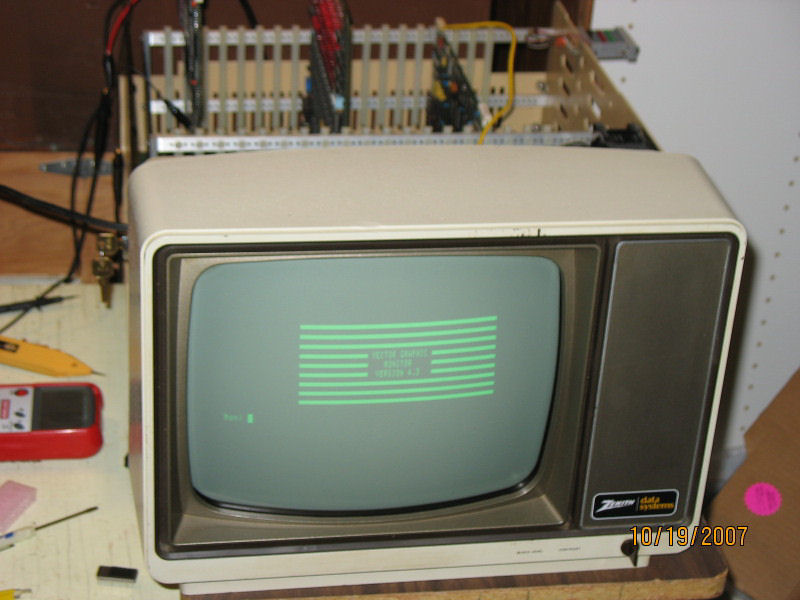

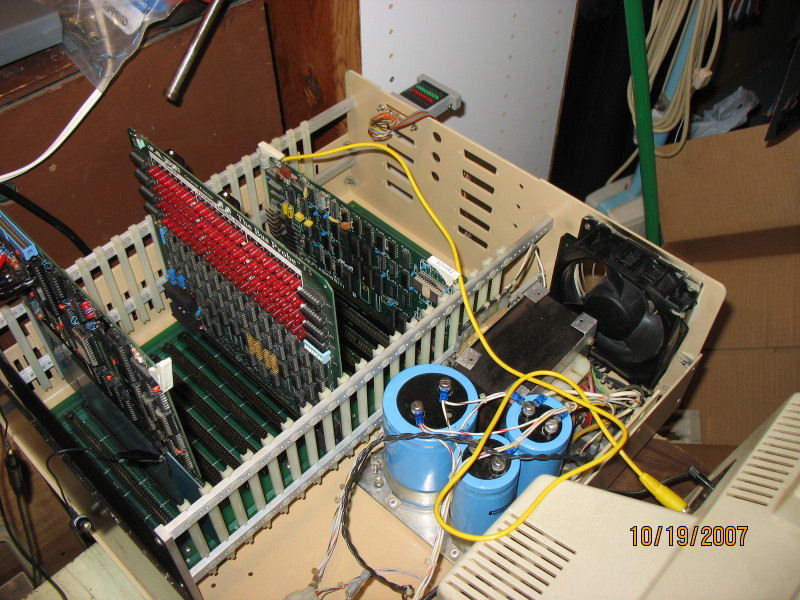

In 2007 one of my colleagues Andrew Lynch was working on a Vector Graphic S-100 system. He's looking for the 16-sector 100TPI formatted hard sectored diskettes it apparently used. Here's some photos of the system:
image 4476
image 4478
image 4479

By late November, he got the system running CP/M. Here's a photo of that:

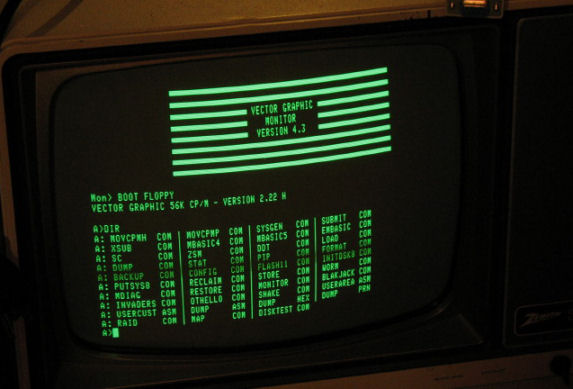

image 4884.

...and here's some Intel format ROM images: Andrew said: "I sent you the 4.3 ROMs in Hex and Bin format from a 2732 [4kb] EPROM. The 4.0c are in a variety of formats but come from a LOW and HIGH pair of [1kb] 2708's. You burn the LOW one first ($E000-$E3FF) and the HIGH one second ($E400-E7FF) or combine the files into an image which fits on a 2716 or one half of a 2732."
ROM version 4.3
ROM version 4.0 high
ROM version 4.0 low

Andrew also noted there were differences among the ZCB, z80 CPU boards: "Regarding the ZCB schematics, I noticed there were differences with regard to PROM expansion and the jumpers. The initial versions were 2708 based but later ones moved to just a single 2732. There were other differences listed in the matrix at the end of the manual as well. I think there were 6 or more versions altogether."

Andrew Lynch and others have discussed with me, the Tandon TM-100-4M drives and other drive brands used by Vector Graphic. These drives are 80-track (or used as 77-track); but the tracks are spaced at 100 TPI, not the standard 96 TPI used by other 80-track drives. For more information and discussion, here's some notes and photos I did; and here's some of that discussion. The discussion includes possible use of Commodore model external floppy drives as 100TPI drives, after replacing the Commodore electronics. From some of that discussion, and from my own Web searching, I came across some Web sites with more info about Commodore's use of Tandon and Micropolis 100TPI drives. Here's my notes and some Web links.

By October 2007, Andrew Lynch announced (in comp.os.cpm) that others had established a Vector Graphic mail list discussion group. It uses "listserv" to manage the list. Use this Web link to join the list. They also have an archive of VG files and documents. (For more information you'll have to join the list to read the contents.) By December 2007, Howard Harte announced in comp.os.cpm that he and Andrew and others worked to image several VG diskettes, and to run those images on a version of the SIMH general-purpose computer simulator. The disk images and the simulator are available at a Web page archive also created by the VG discussion group.

As a consequence of work by correspondents in the VG mail list, Vector Graphic support has been added to the SIMH computer simulator for VG hardware on a simulated Z80 running CP/M. Check the SIMH site for Peter Schorn's work on SIMH for the programs.

In 2009, Tom Sanderson announced a Web domain "vector-graphic.info" with a Web site of documents, software, photos, and PDF's of articles about VG and its officers. He's expanding the site to cover specific hardware, such as Tandon floppy drives.

Another VG Web site is at this site in the UK. There is a Wikipedia entry as well for Vector Graphic, with more Web links.

Thanks to my colleagues Bill Degnan and Dan Roganti in 2008, for discussions and manuals from Micropolis on their floppy drives. Dan provided a manual on MDOS, Micropolis' Disk Operating System as well their various BASIC products.

Vector Graphic manual list

     Vector 16K Static Ram (copy), 18 pgs
     8K SRAM - copy, ask
     Flashwriter II user manual, rev 3, 35 pgs
     Flashwriter II board manual rev 4A, 30 pgs
     Z80 board assembly lang instr and user's guide, 20 pgs
     64K dynamic memory board users manual rev 3A, 16 pgs
     48K DRAM manual - copy, ask
     8K 56K update - copy, ask
     Extended Systems Monitor 4.1 (source listings), 23 pgs
     Extended Systems Monitor 4.3 (source listings), 22 pgs half size (poor copy)
     Extended Systems Monitor 4.3 User's manual, 16 pgs (poor copy)
     8K SRAM instruction manual, 17 pgs
     Z80 board user's guide, 13 pgs
     12K Prom/Ram schematic (2708s), 2 pgs
     Prom/Ram schematic (1702s), 2 pgs
     SCOPE user manual, 62 pgs
     technical bulletins - copy, ask
     RAID reference manual, 1.1A, 20 pgs
     "CP/M an Introduction to a Microcomputer Operating System", Ed Scott, 22 pgs

     CP/M 2 ZSM Assembler User's Manual, ver 2.5A, 1980, 12 pgs
     RAID USer's Manual, Ver 1.1, 1980, 36 pgs
     SCOPE USer's Manual, Ver 1.6A, 1980, 74 pgs
     Mainframe User's Manual (cabinet, power supply, wiring) 15 pgs
     Motherboard User's Manual, 12 pgs
     System overview manual, (system B and B+S3), rev A 1980, 20 pgs
     PROM RAM III USer's Manual (copy), Rev 1-1-A, 1979, 42 pgs
     64K Dynamic RAM Manual, rev 3A, 1980, 16 pgs
     MDIAG document for memory test, 4 pgs (poor copy)
     Tandon 5-1/4" floppy drive manual (TM100 drive) 104 pgs
         w/schematics & parts, troubleshooting, more.
         (see floppy drive manuals for more
     Mindless Terminal user's manual, rev 0-b, 1979, 30 pgs
         includes Ball Brothers TV90/120 schematic
         includes Keytronic keyboard schematics
     Mindless Terminal user's manual, rev 0-b, 1979, 40 pgs
         includes C. ITOH CIQ-9 and CIQ-12 monitor schematic
         includes Keytronic keyboard schematics
     ZCB Single Board Computer, rev 1B 1980, w/1981 update 56 pgs
     ZCB Single board computer, as above, PDF copy, 52 pgs
     Safestor Hardware, rev A, 1982, 46 pgs
     Technical Advisory:
         Jumpering of 5-1/4" hard disk drive, Nov 2 1981, 2 pgs
         Jumpering of 5-1/4" floppy drive, Nov 9 1981, 2 pgs
         Jumpering of 5-1/4" floppy drive, Nov 9 1981, 2 pgs
         Upgrade timeshar sept 1981, 2 pages of three
     Port Map (list of I/O addresses), rev a 1981, 4 pgs
     Bitstreamer II User's Manual, rev 1A, 1980, 52 pgs
     Bitstreamer I/O Board manual, 22 pgs
     8" floppy disk controller manual, rev 1A 1981, 38 pgs
     Z-80 Board User's Manual, rev 2A, 1979, 22 pgs
     48K Dynamic Memory Board, rev 3 1979, 18 pgs
     Flashwriter II User's Guide, rev 3 1979, source code, 60 pgs
     2800 System overview - copy, ask
     3030 System overview - copy, ask
     Vector 3 hardware manual - copy, ask
     Vector "Dual Mode Disk Controller Card": FD/HD hard and floppy drives
          Engineering docs, rev 2.0, Feb 1981, 62 pages, copy.
     MZOS - Vector MZ Operating System & Utilities, ver 1.5 1978, 32 pgs
          driver sources for printers, Northstar to NZ disk conversion


Micropolis manuals are in my Micropolis Web page:

Vector Graphic Systems Using M-DOS (Micropolis Disk Operating System)
M-DOS System ver 8.5, User's Guide Rev b, 1979, 56Kb systems
Micropolis 1040/1050 S-100 Floppy Disk Subsystems User's Manual
Micropolis Disk Controller Board manual (by Vector), rev A 1980, 50 pgs
