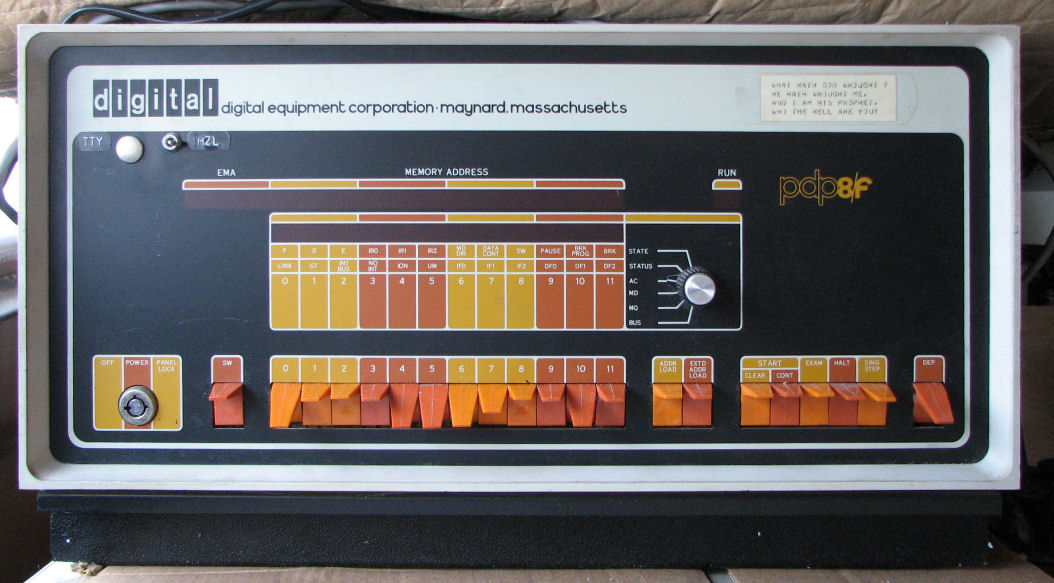

My PDP-8/F which was acquired from Princeton University several years ago. I'm j-u-s-t starting to pay attention to it in early 2009, thanks to my colleague David Gesswein.

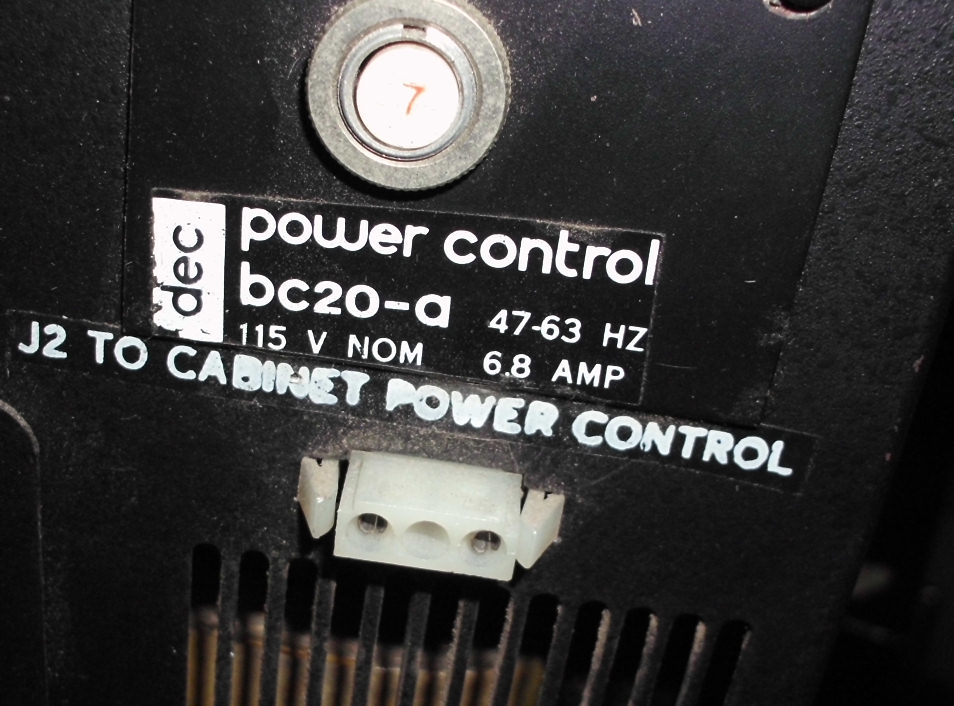

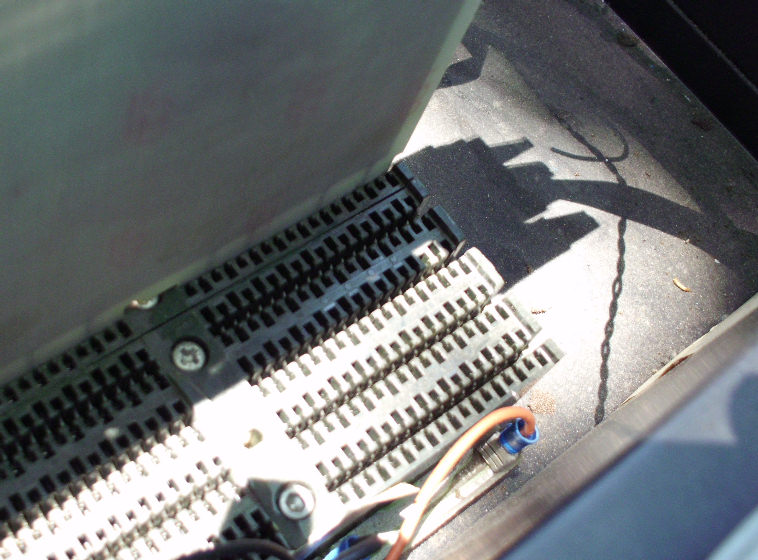

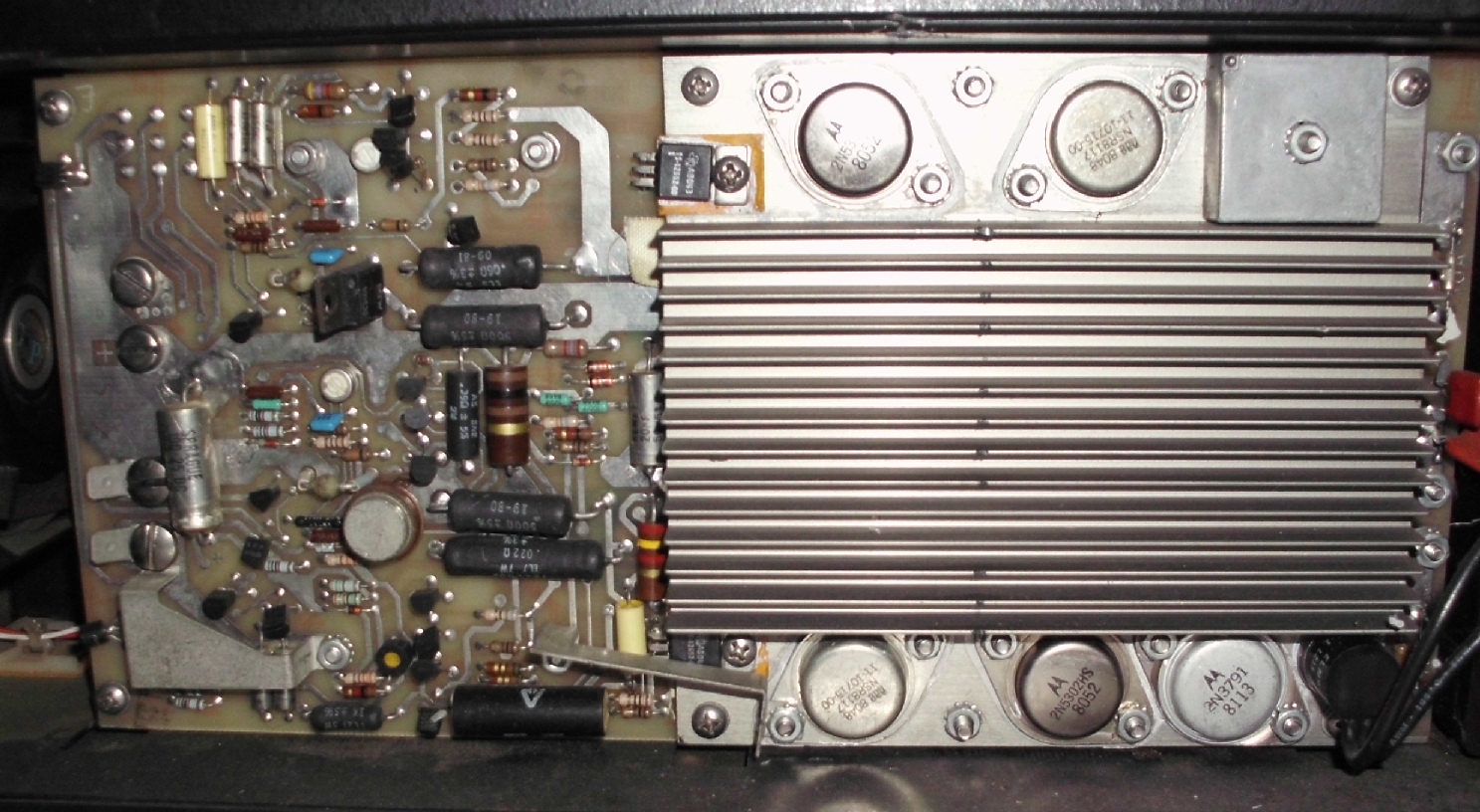

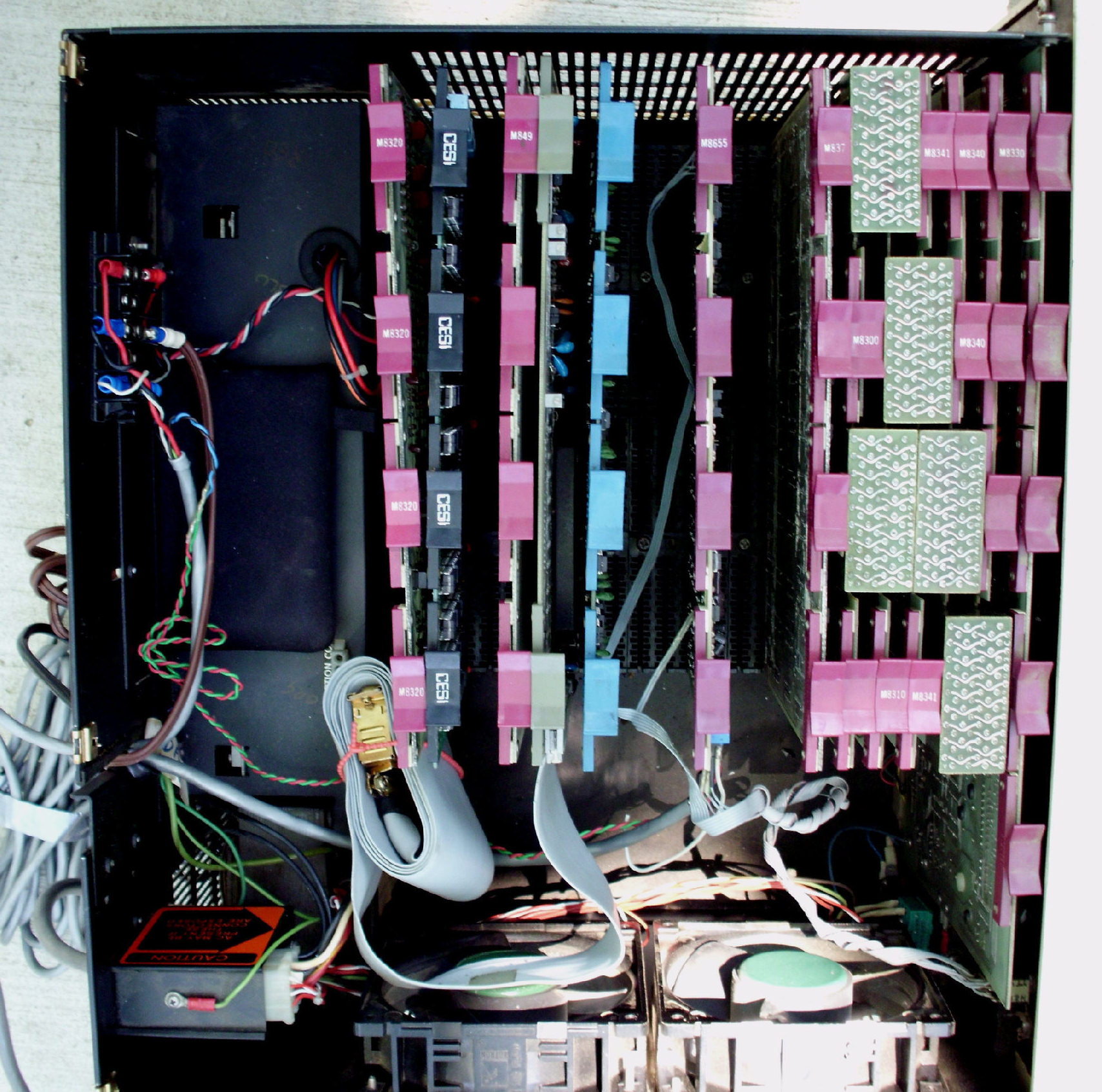

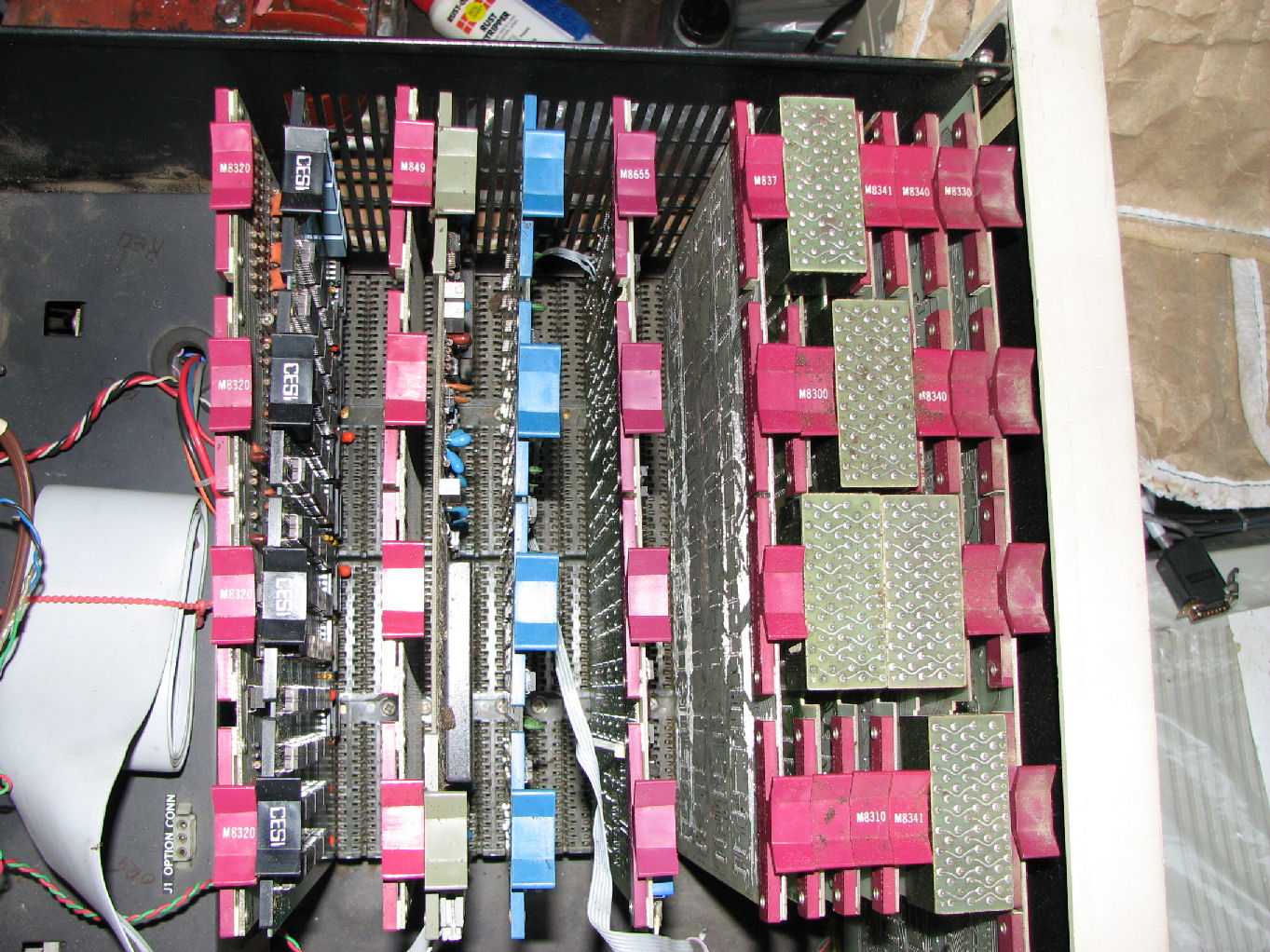

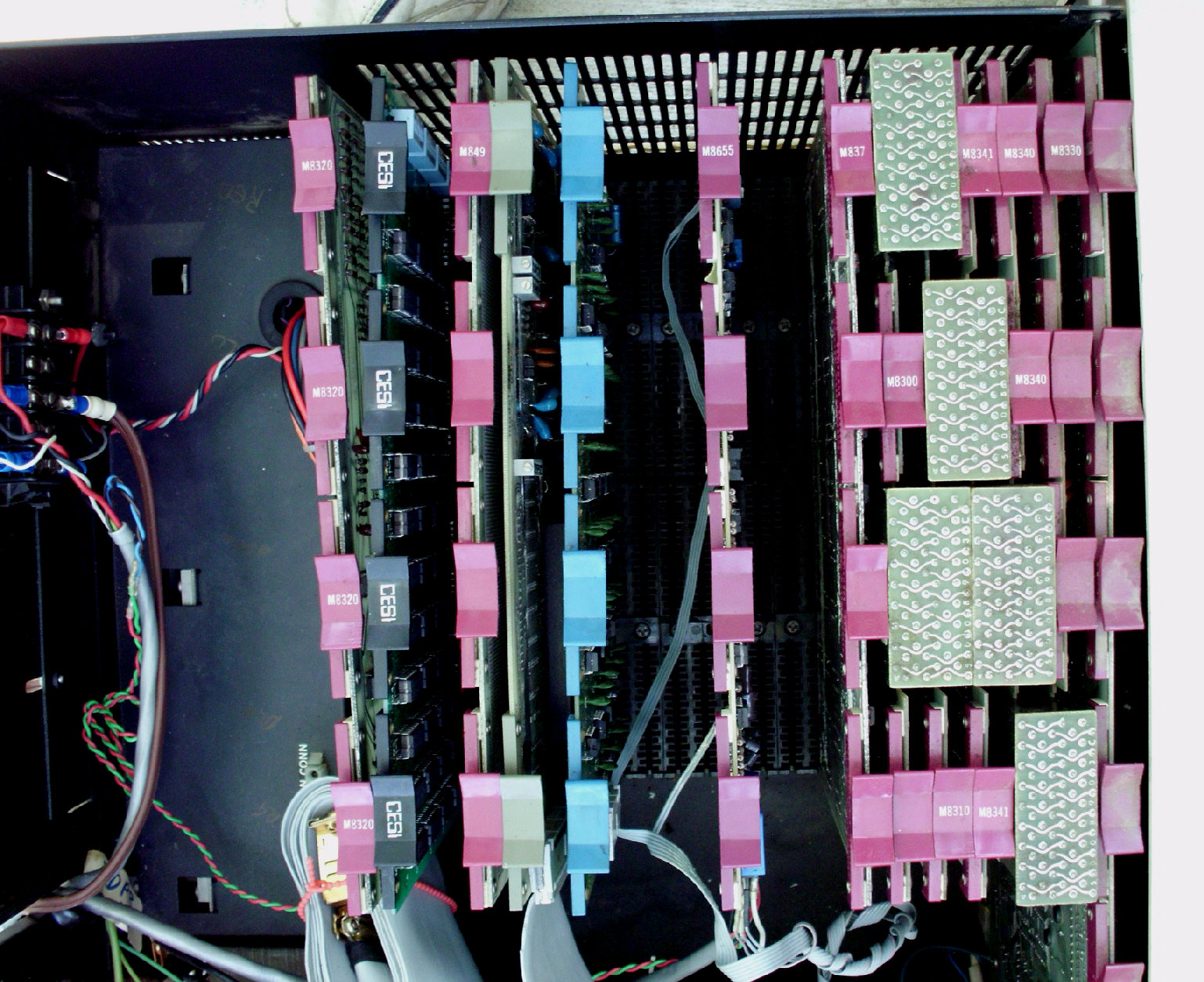

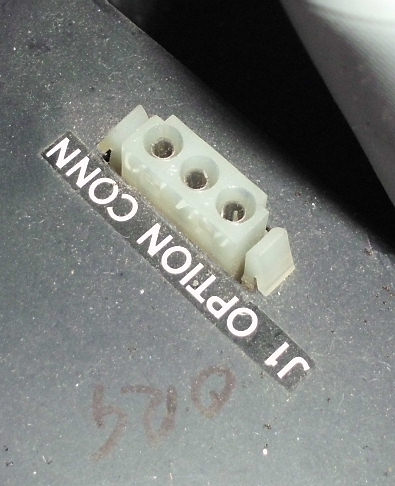

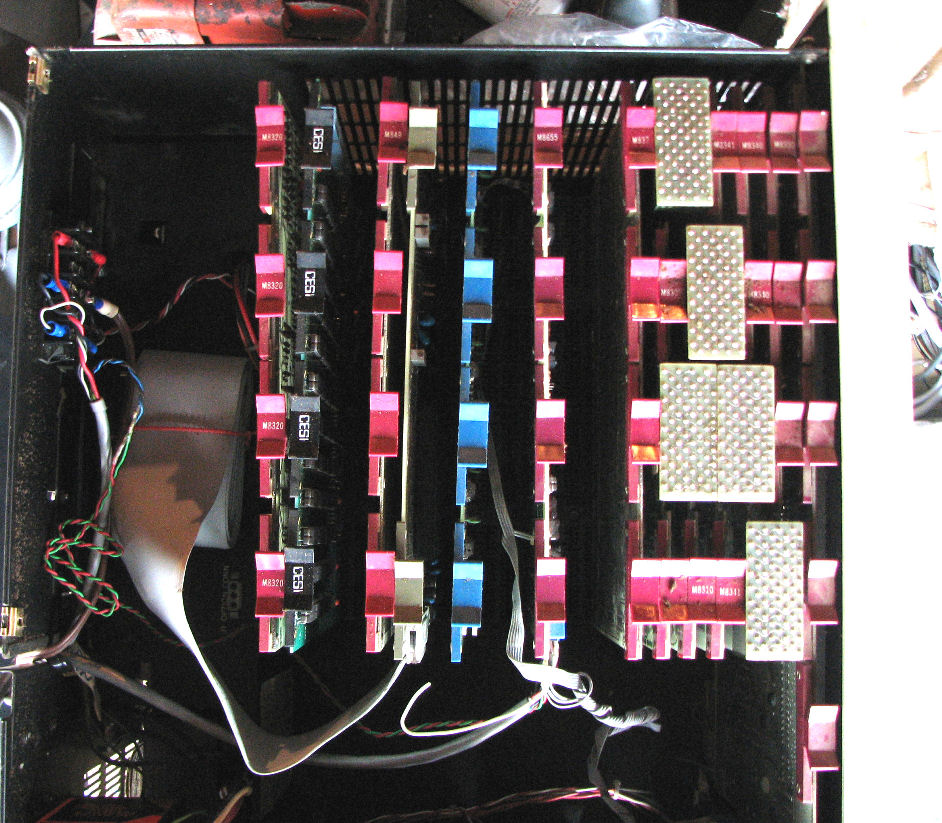

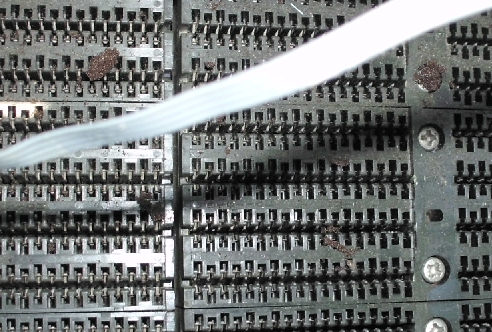

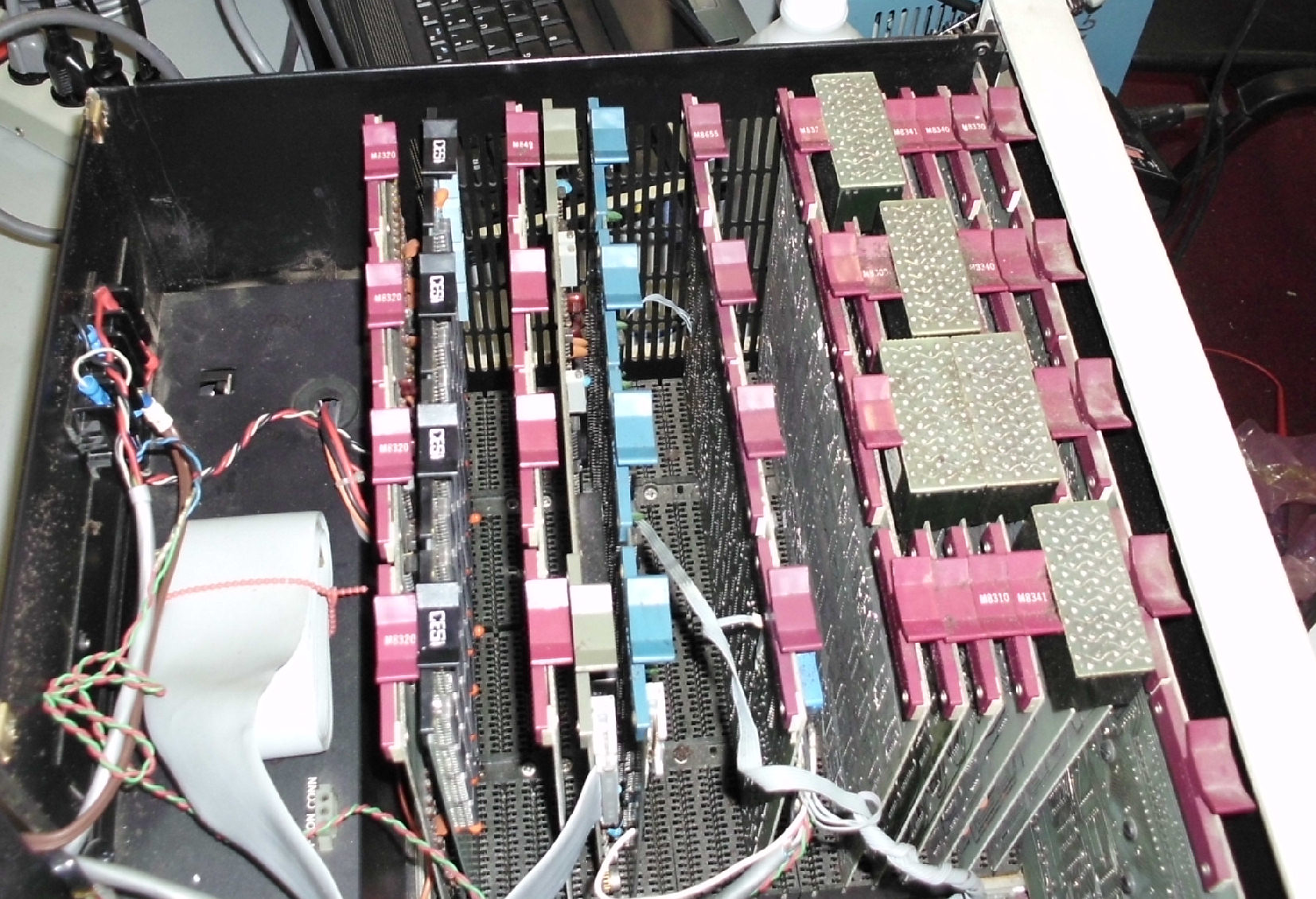

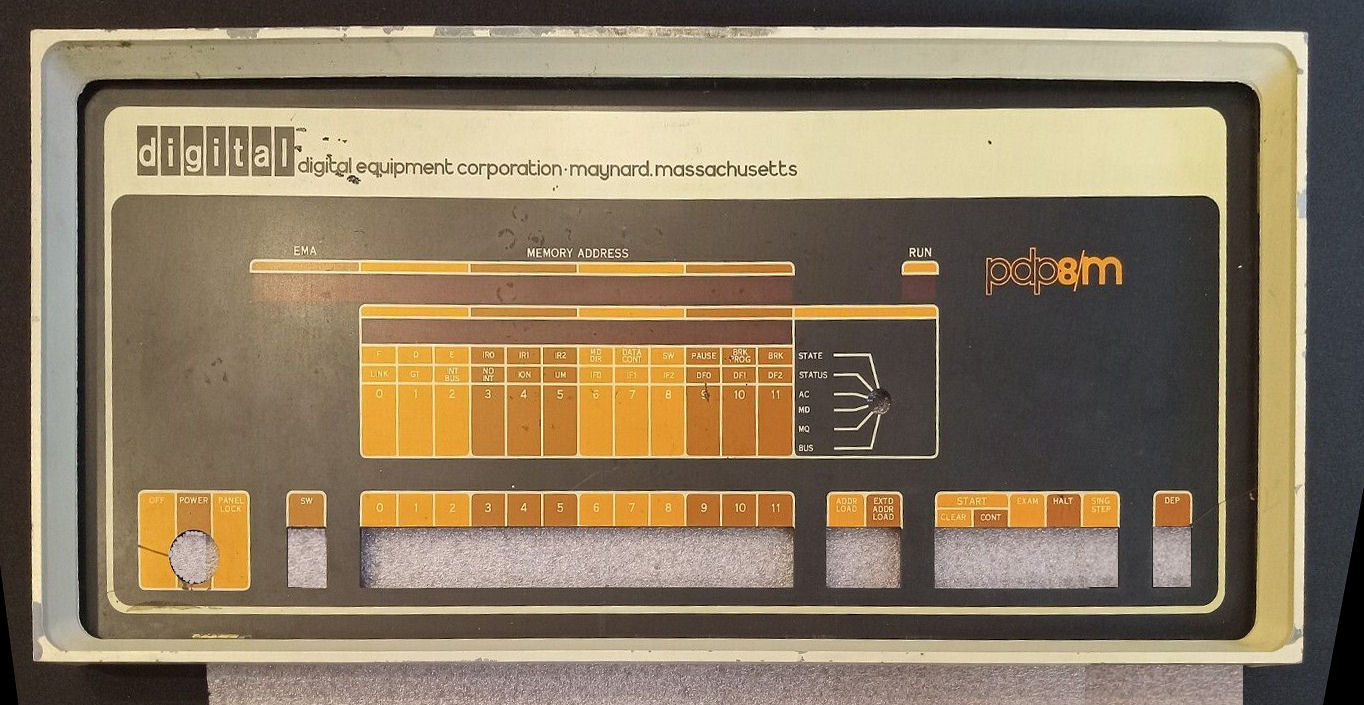

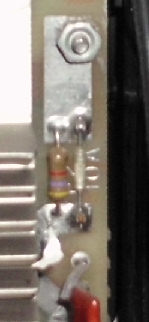

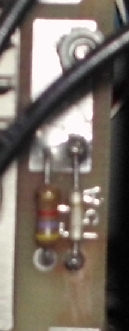

PDP-8/F case view from the top. IN this top inside view of my PDP-8/F, you can see I have one backplane of 20 slots (5 blocks of four slots). The front panel is in "front". Behind the backplane is the power supply, in its black box with a small white connector sticking out. Space to the side of the backplane is not photographed, it extends from the back of the hex-width front panel to the back of the case. Typically, for more boards, another "expansion box" with a quad-width or hex-width backplane and power supply would be attached to this chassis.

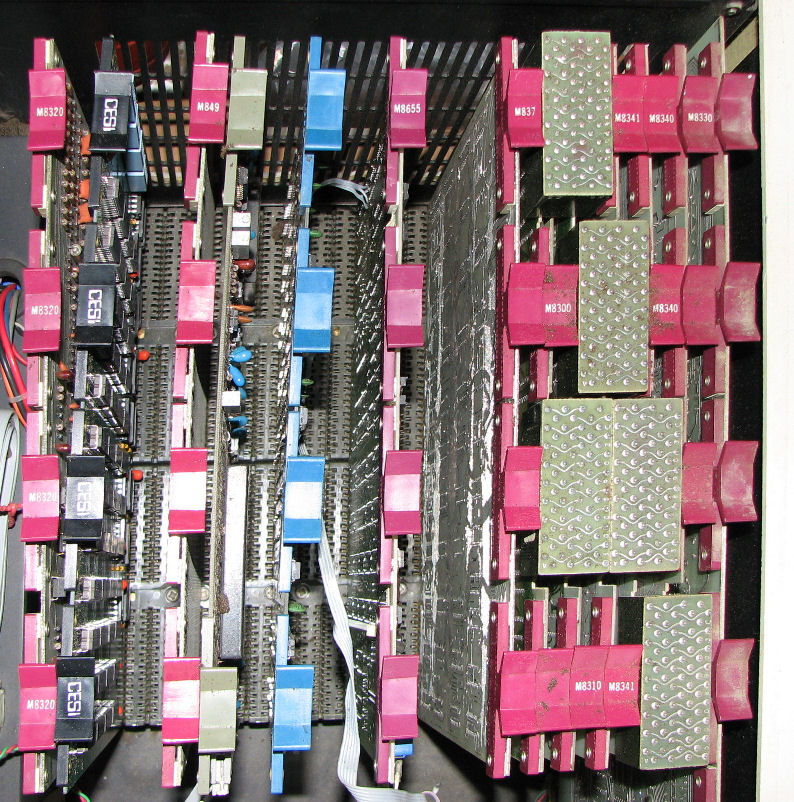

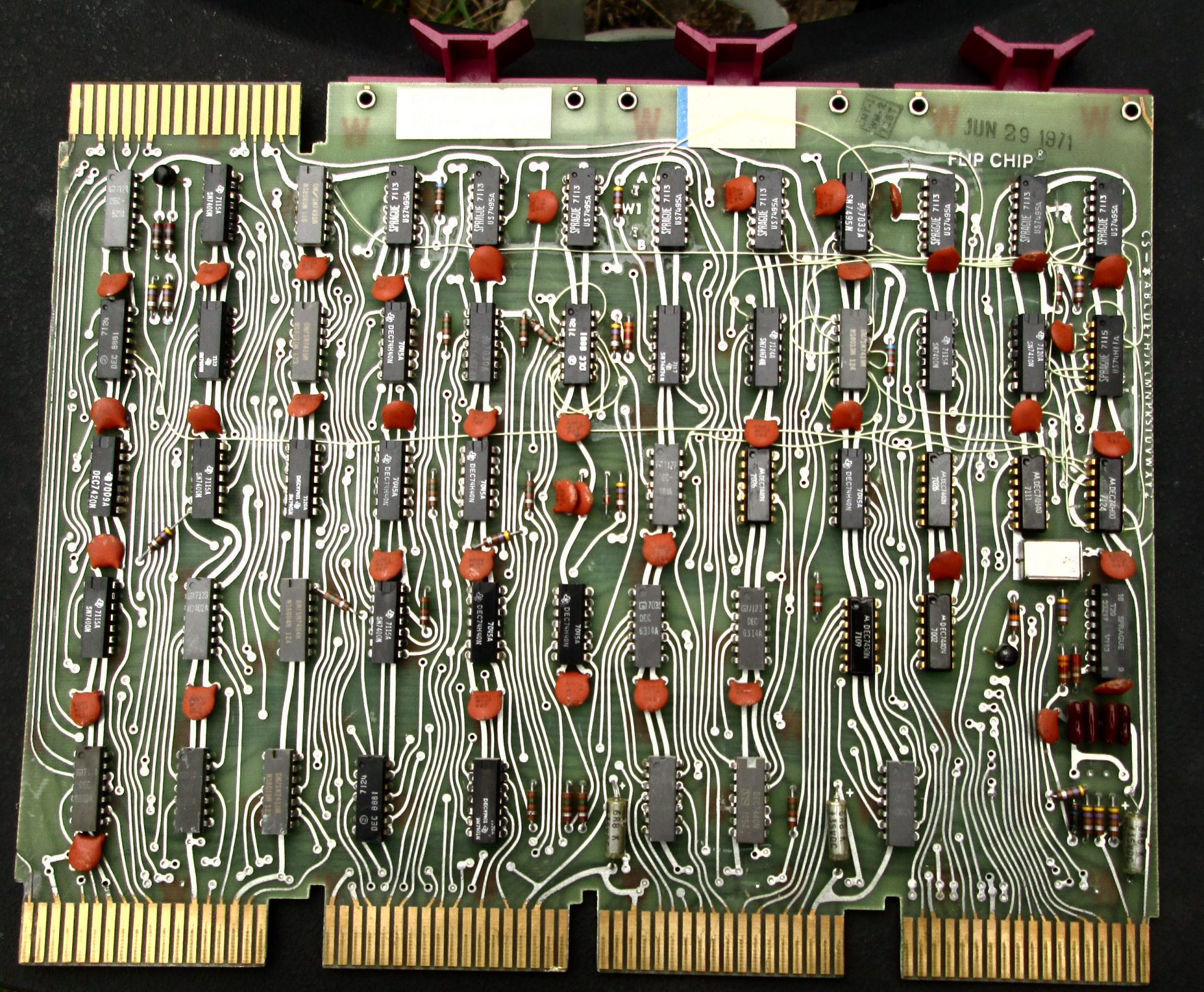

Cards in my PDP-8/F, front to back

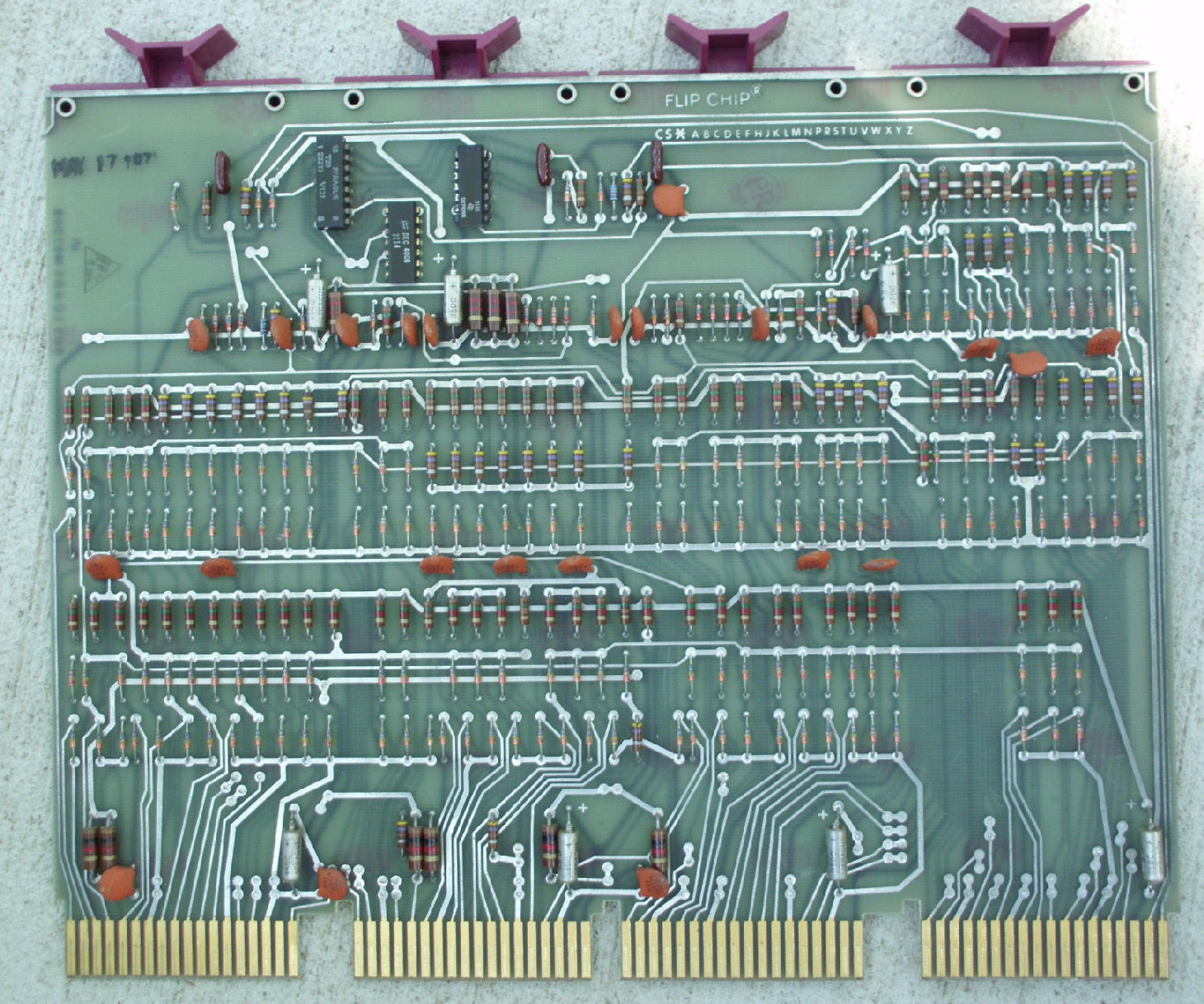

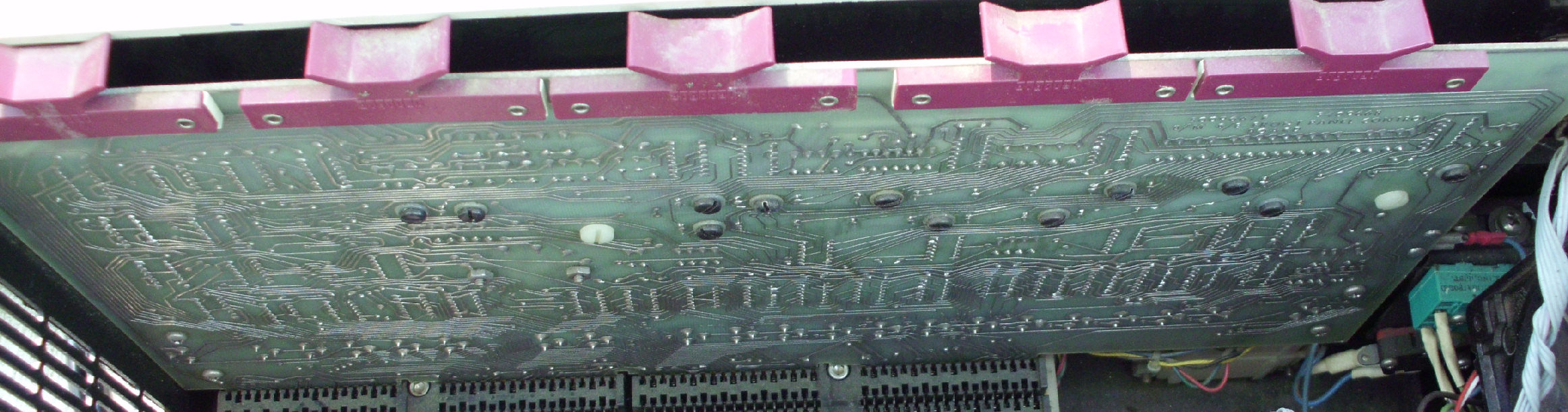

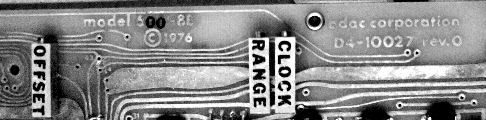

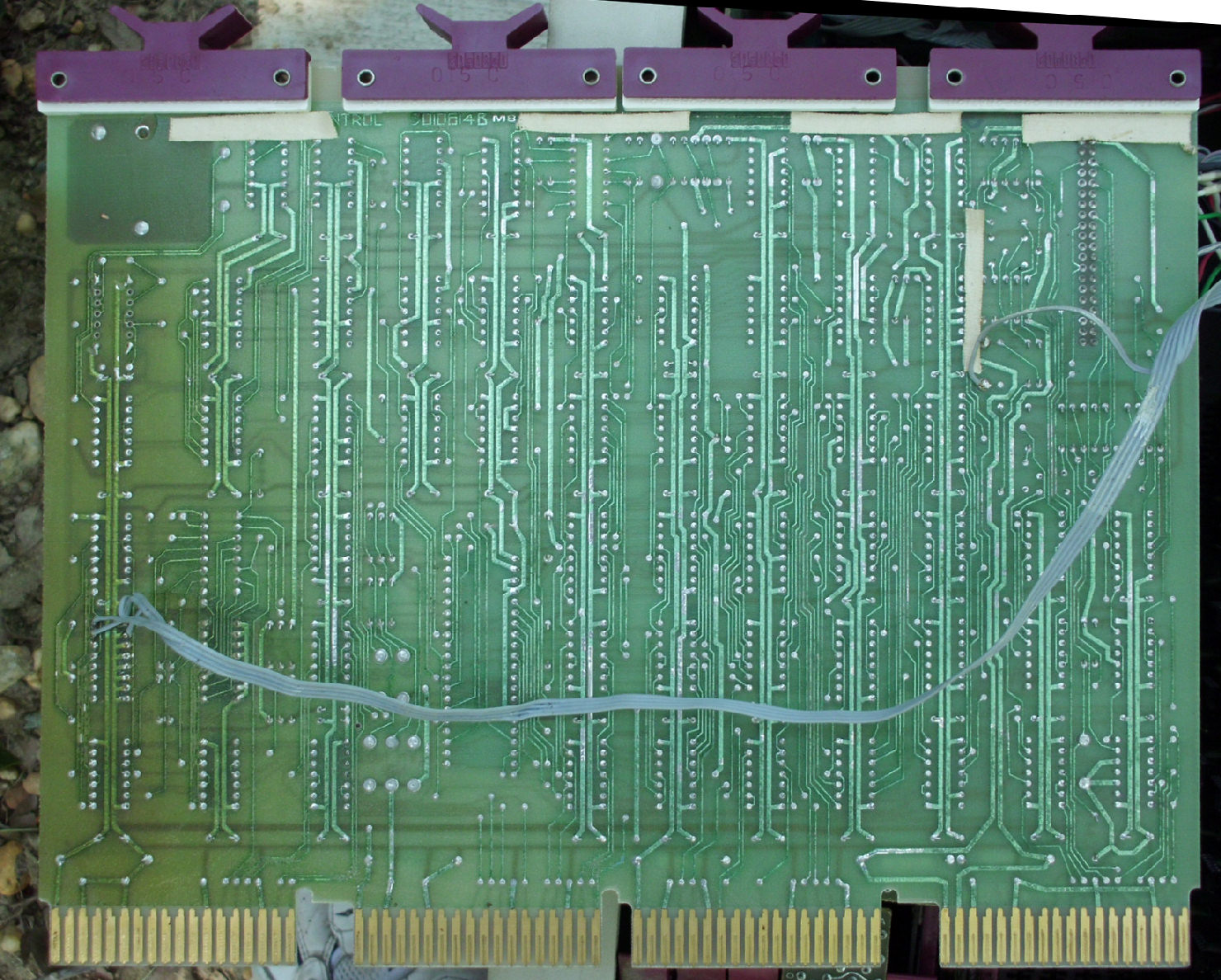

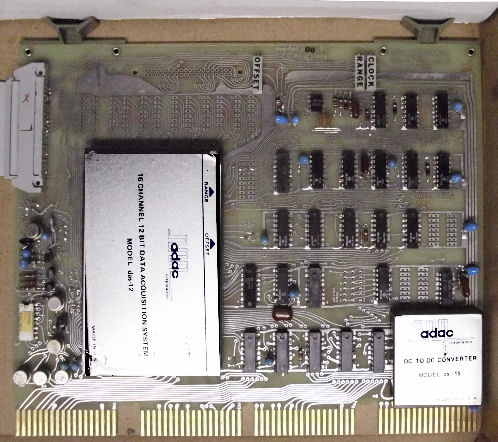

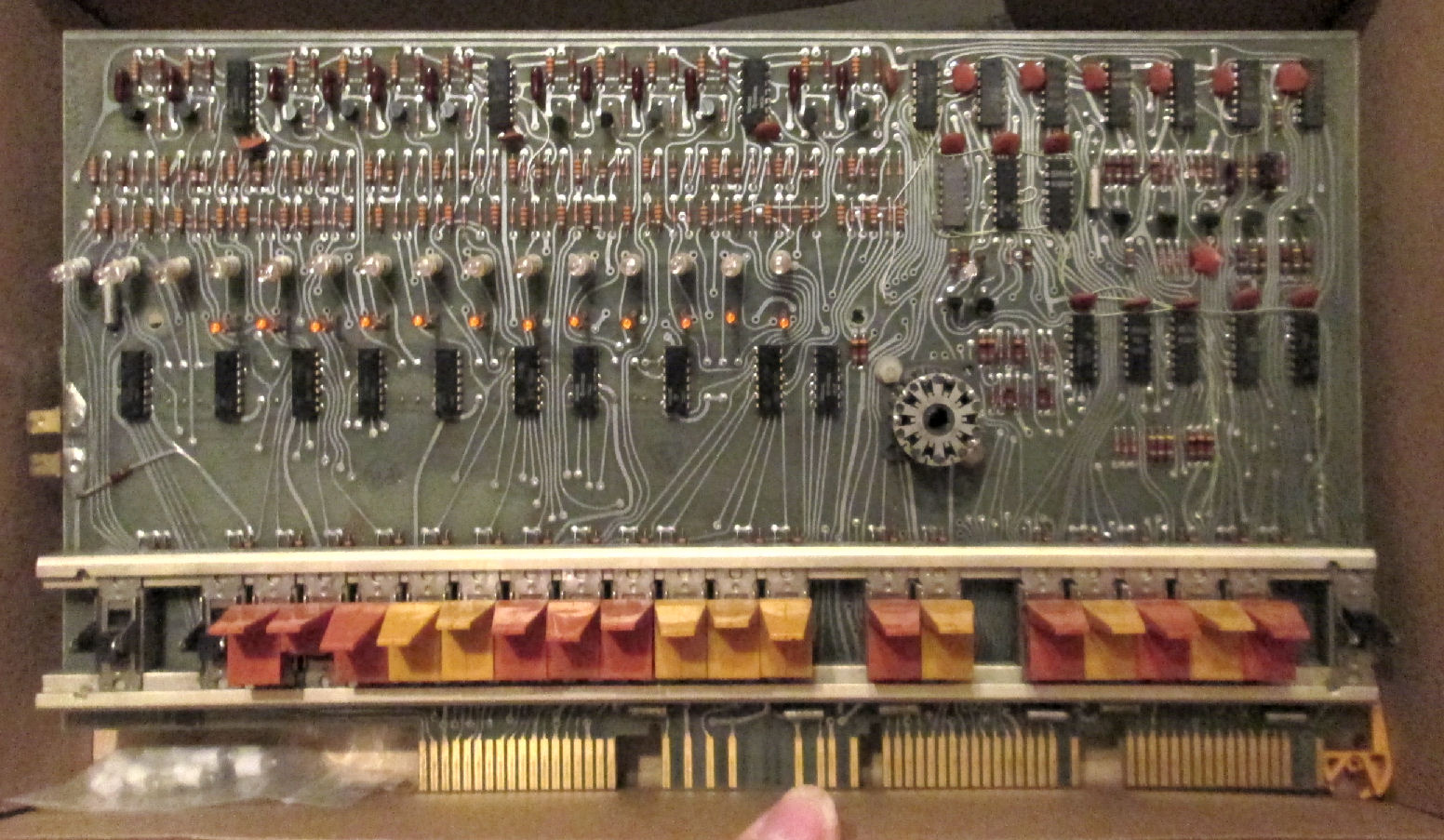

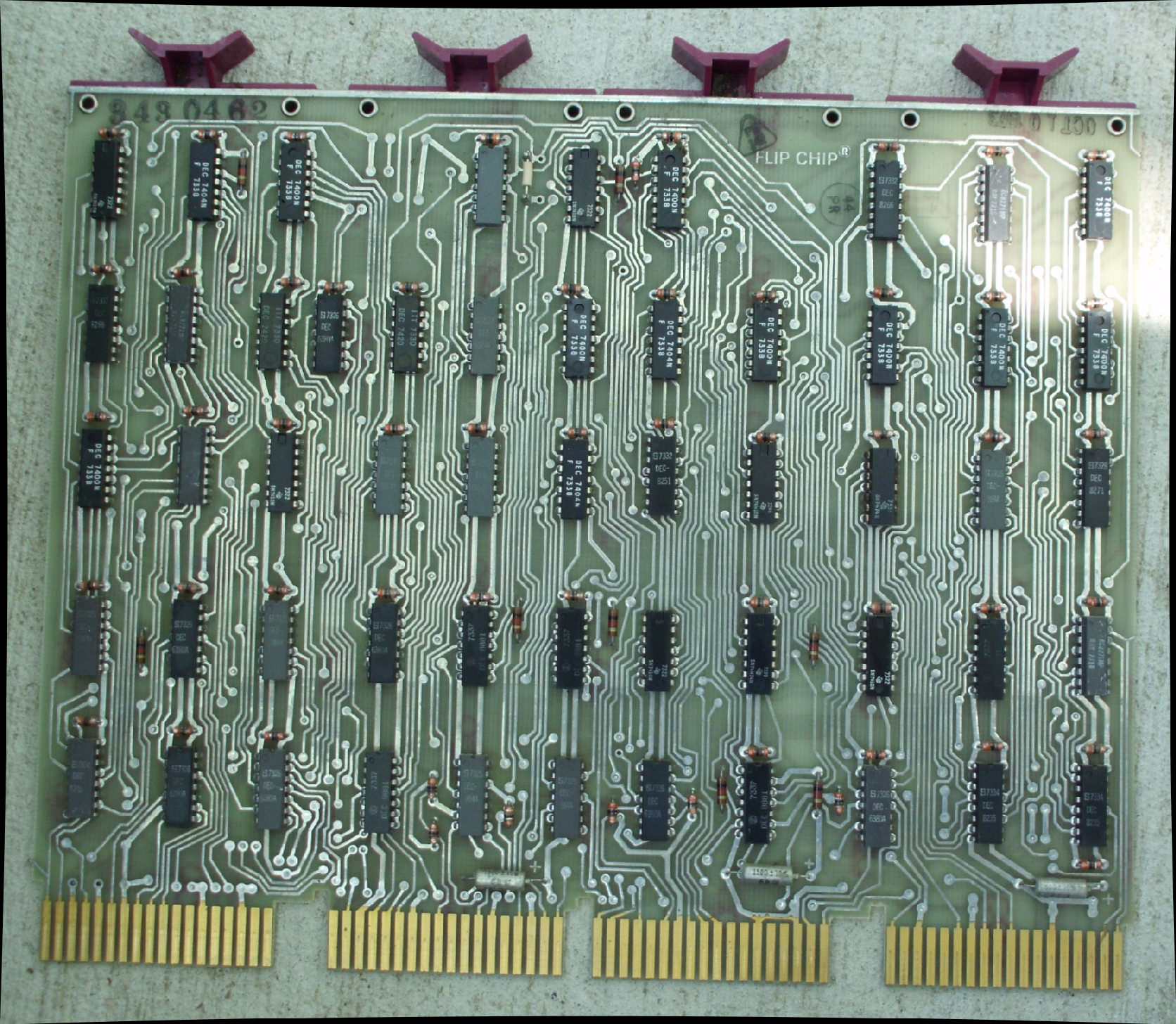

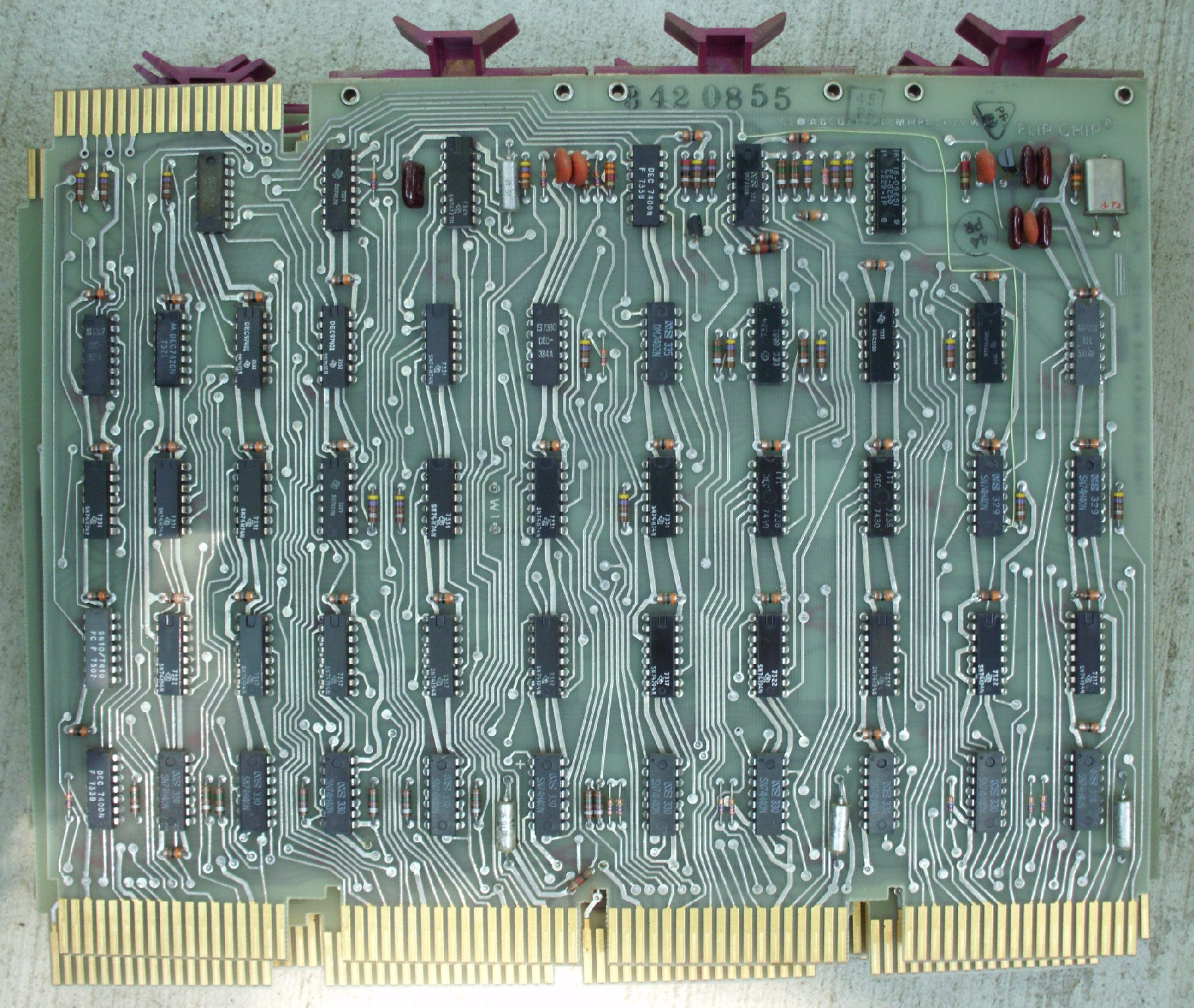

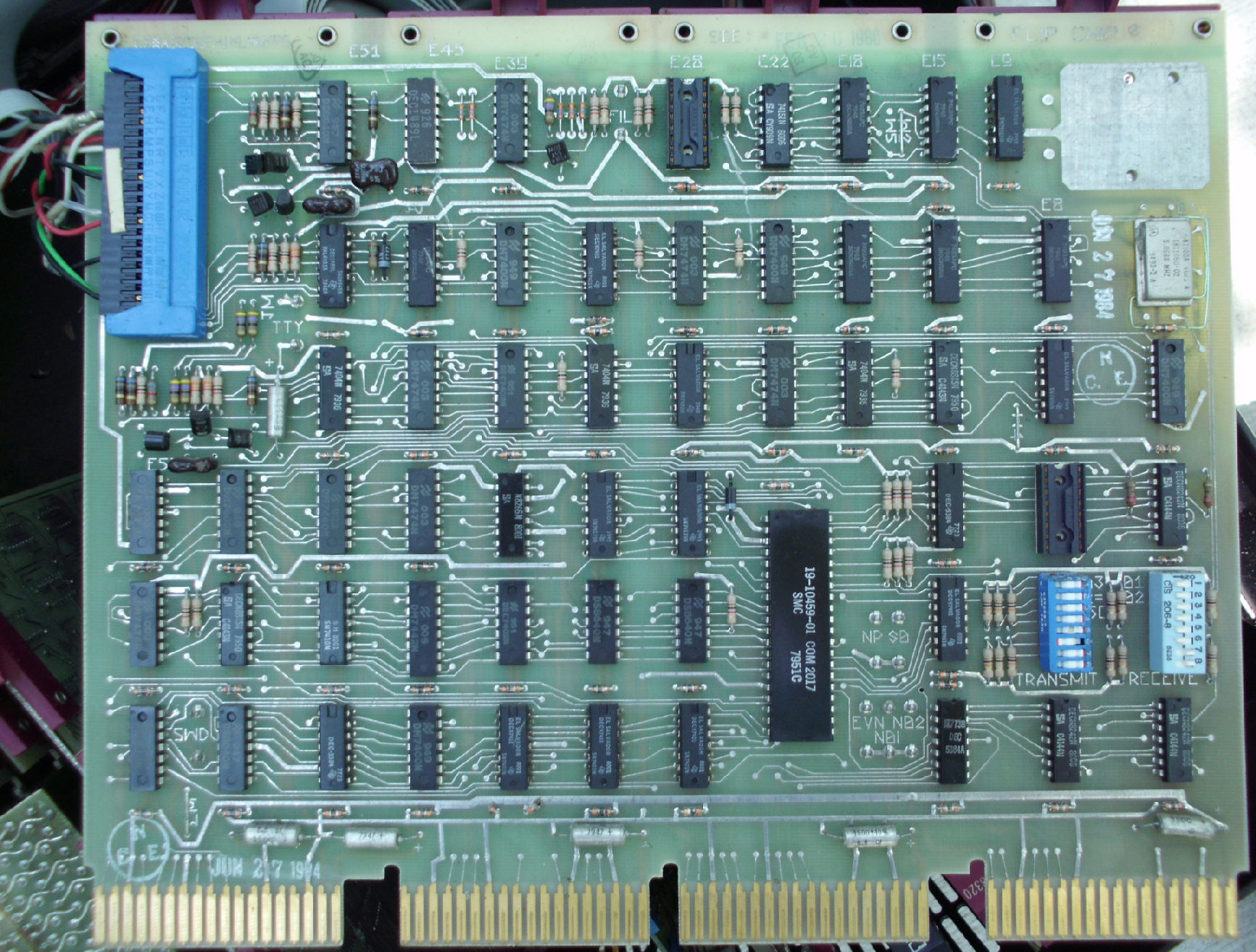

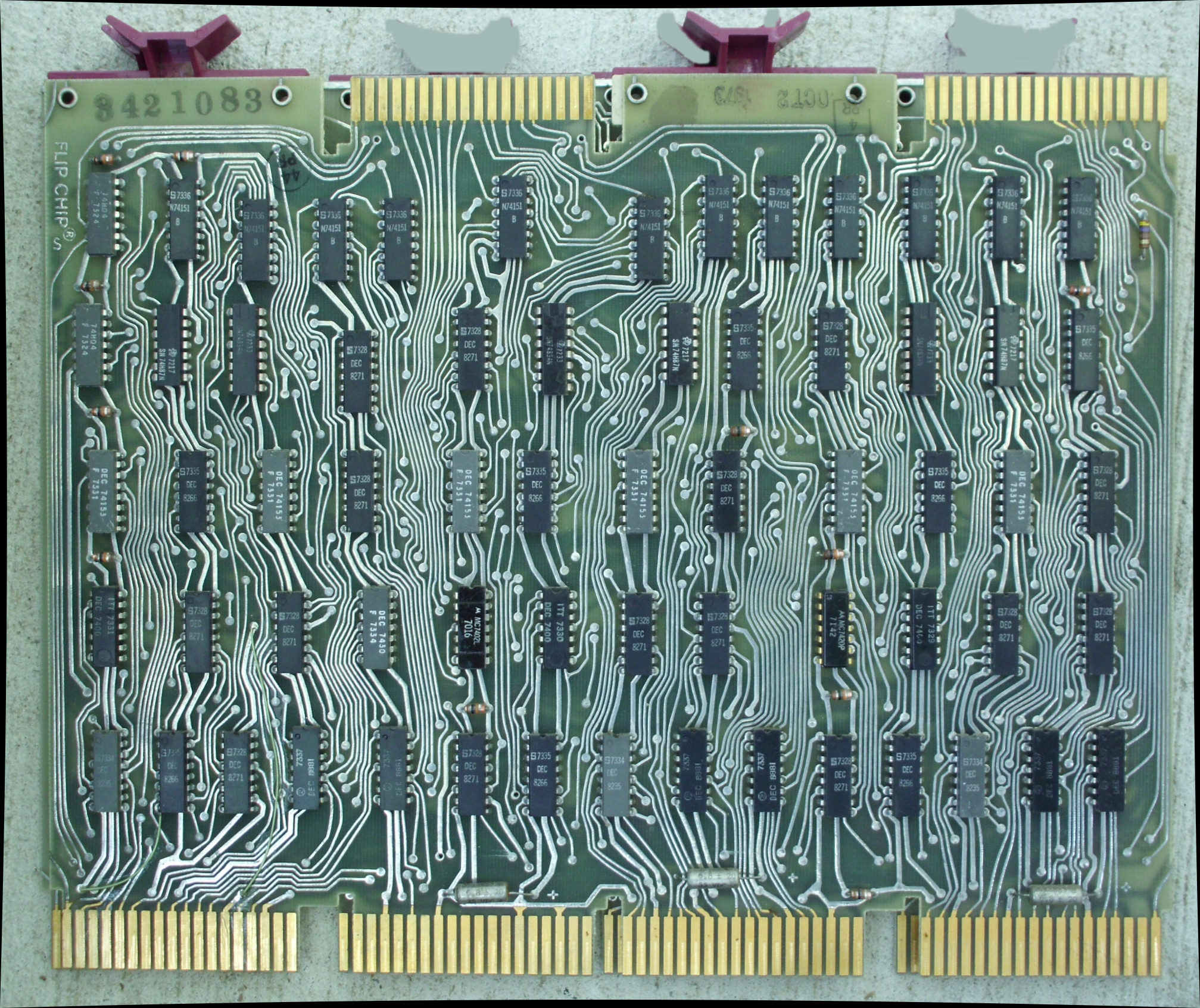

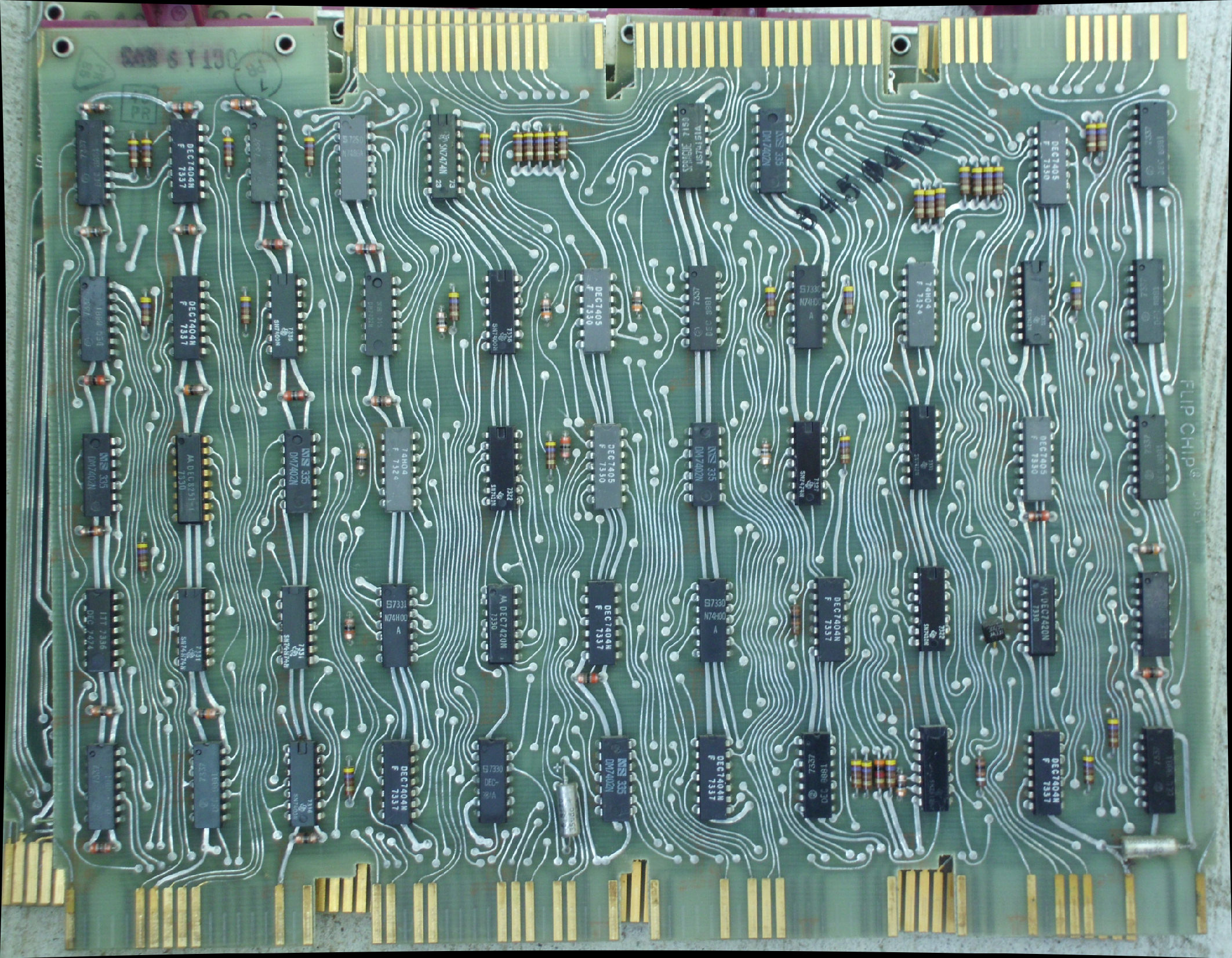

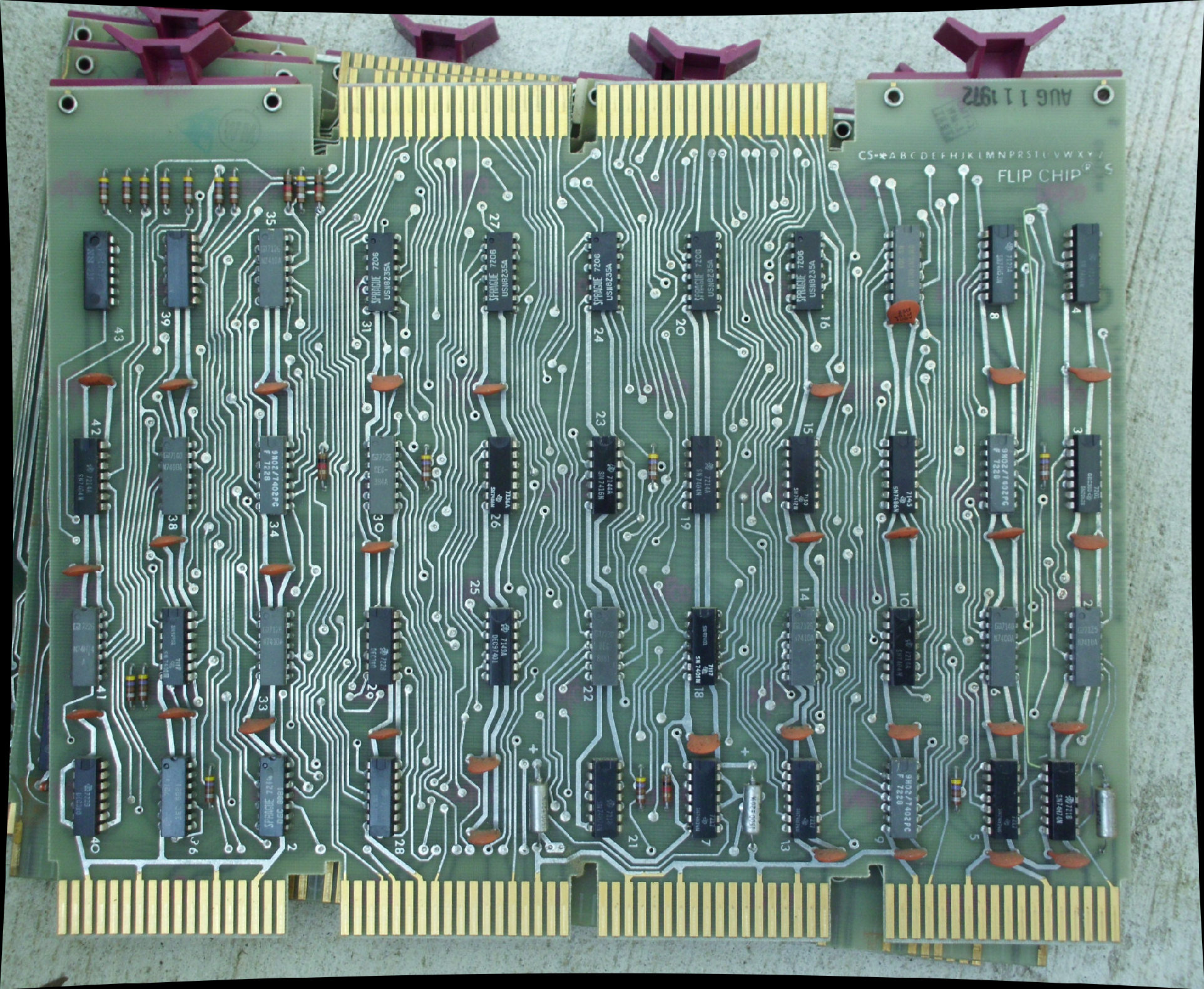

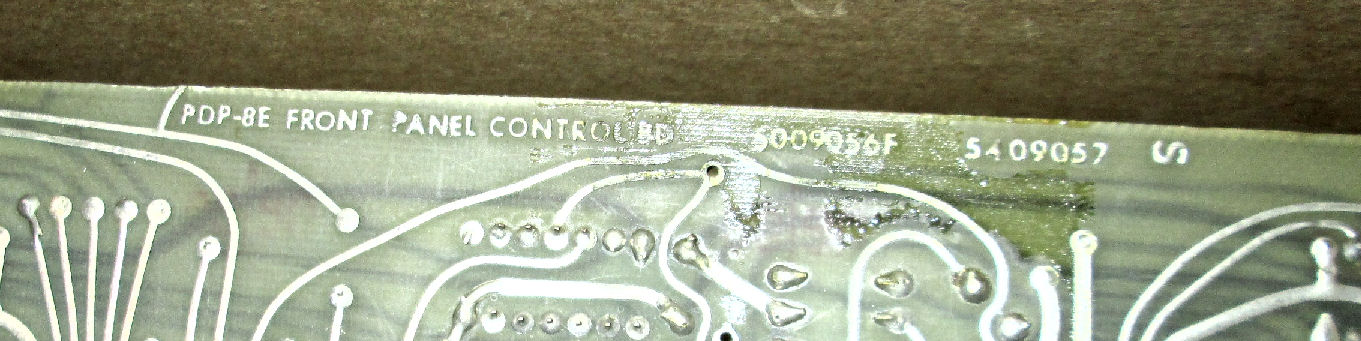

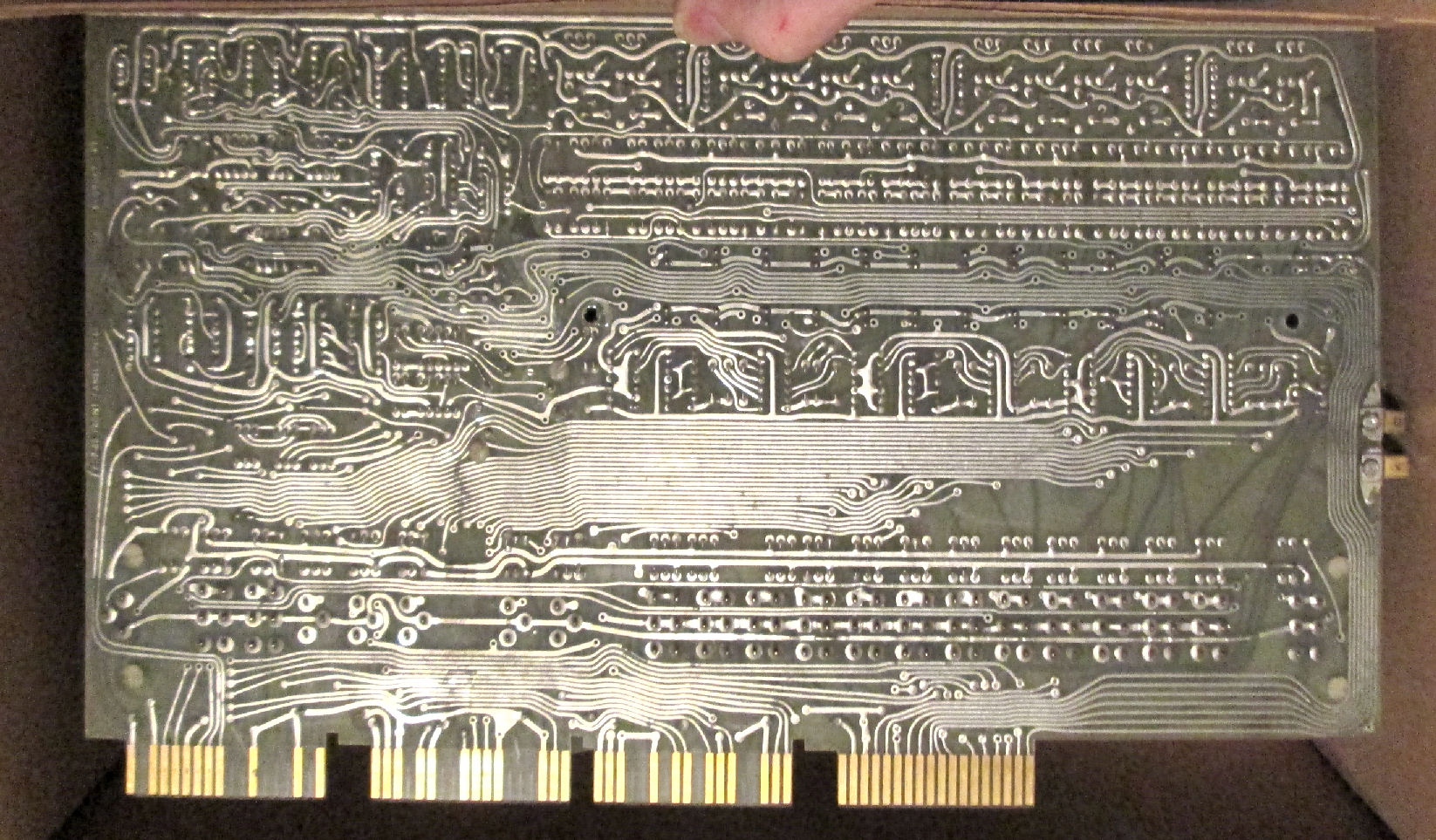

-- KC8F? - programmer's console (lights and switches) -- M8330 - KK8E Timing board (system clock) -- M8340 \_ optional KE8E EAE board 1 -- M8341 / optional KE8E EAE board 2 -- M8310 \_ KK8E CPU control -- M8300 / KK8E CPU registers -- M837 - KM8E or MC8E extended Memory & Time Share control -- empty slot -- M8655 - RS-232, 9600 baud TTY control, UART -- empty -- "blue tabs" board, Data Systems Design (later Qualogy) DSD 2131A-5, see below -- empty -- brown tab board, no clear brand, analog data collection. -- M849 - KK8E RFI shield -- empty -- empty -- black tab board, CESI brand board, prbably VM816 16K? memory -- M8320 - KK8E Bus loads
Identifications above based on Omnibus Modules listing by Douglas Jones at the U.of Iowa. I've not verified the options (KKxx descriptions). A brief description of the 8/F Omnibus is at this Web site.
I have not examined it in detail. Here's some possibly relevant links. This PDP-8 FAQ entry says "The OMNI-8 operating system supported the enlarged PDP-8 address space of the CESI (Computer Extension Systems Inc) memory cards...". That led me to an UMN .edu IT department? Web site full of documents.

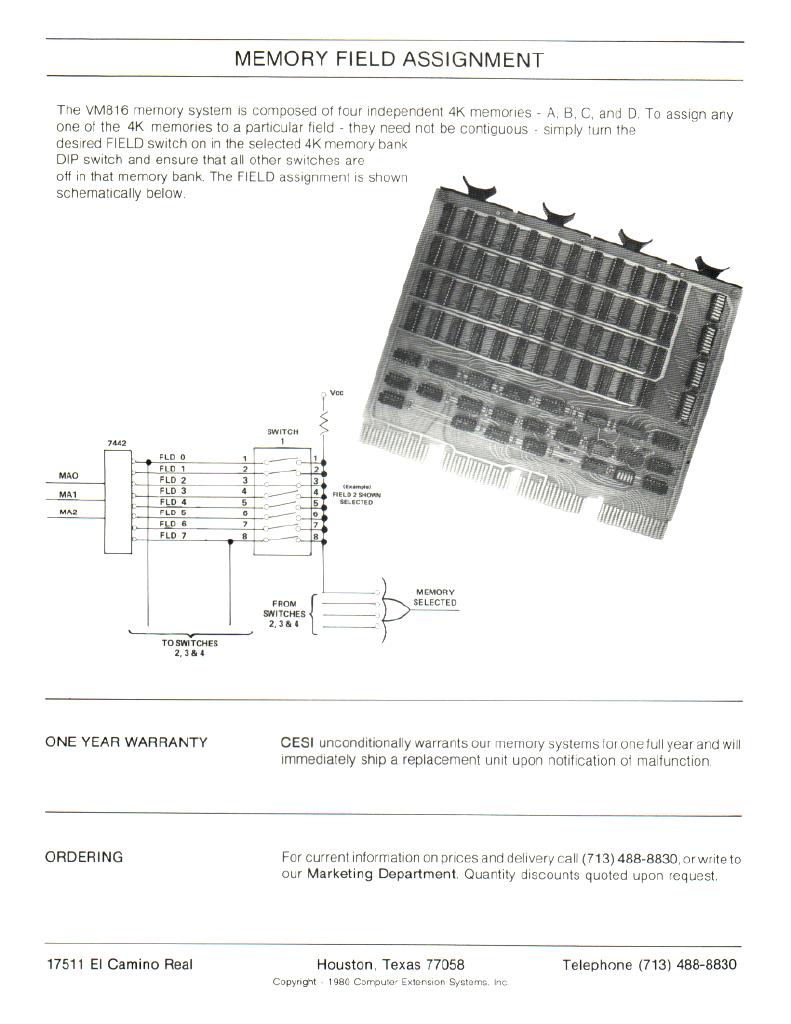

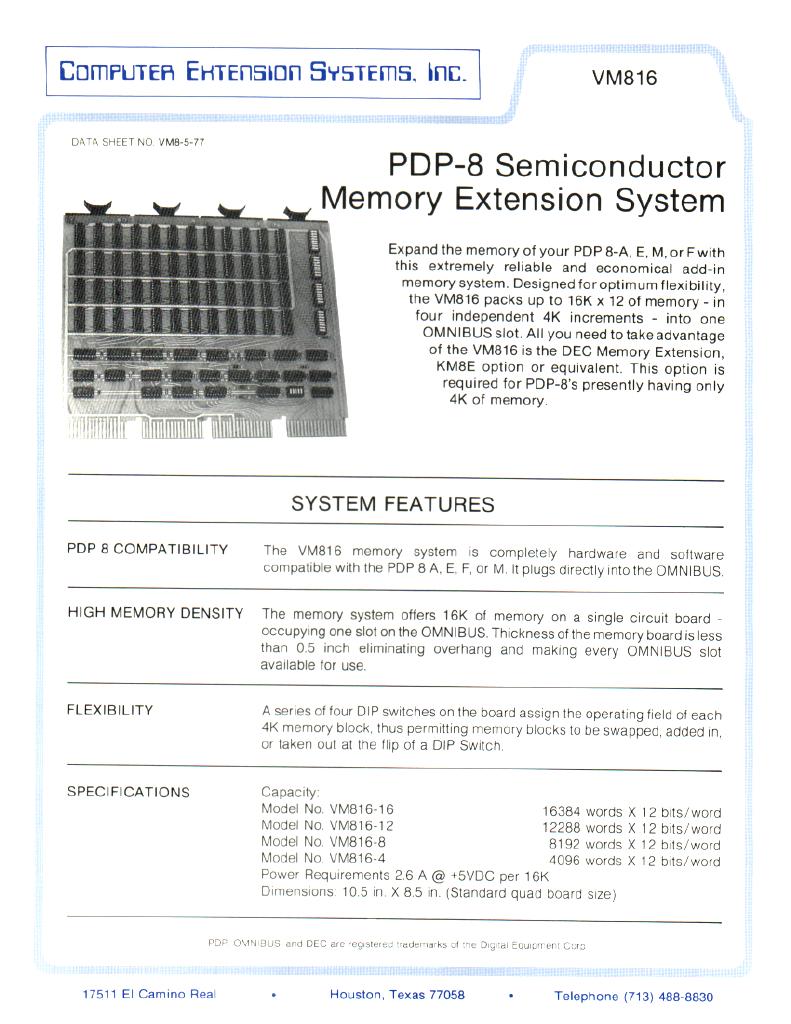

A document from umn.edu (University of Minnesota, USA) was a CESI VM816 product brochure. It describes a 4K to 16K memory board which looks like mine. Neat!

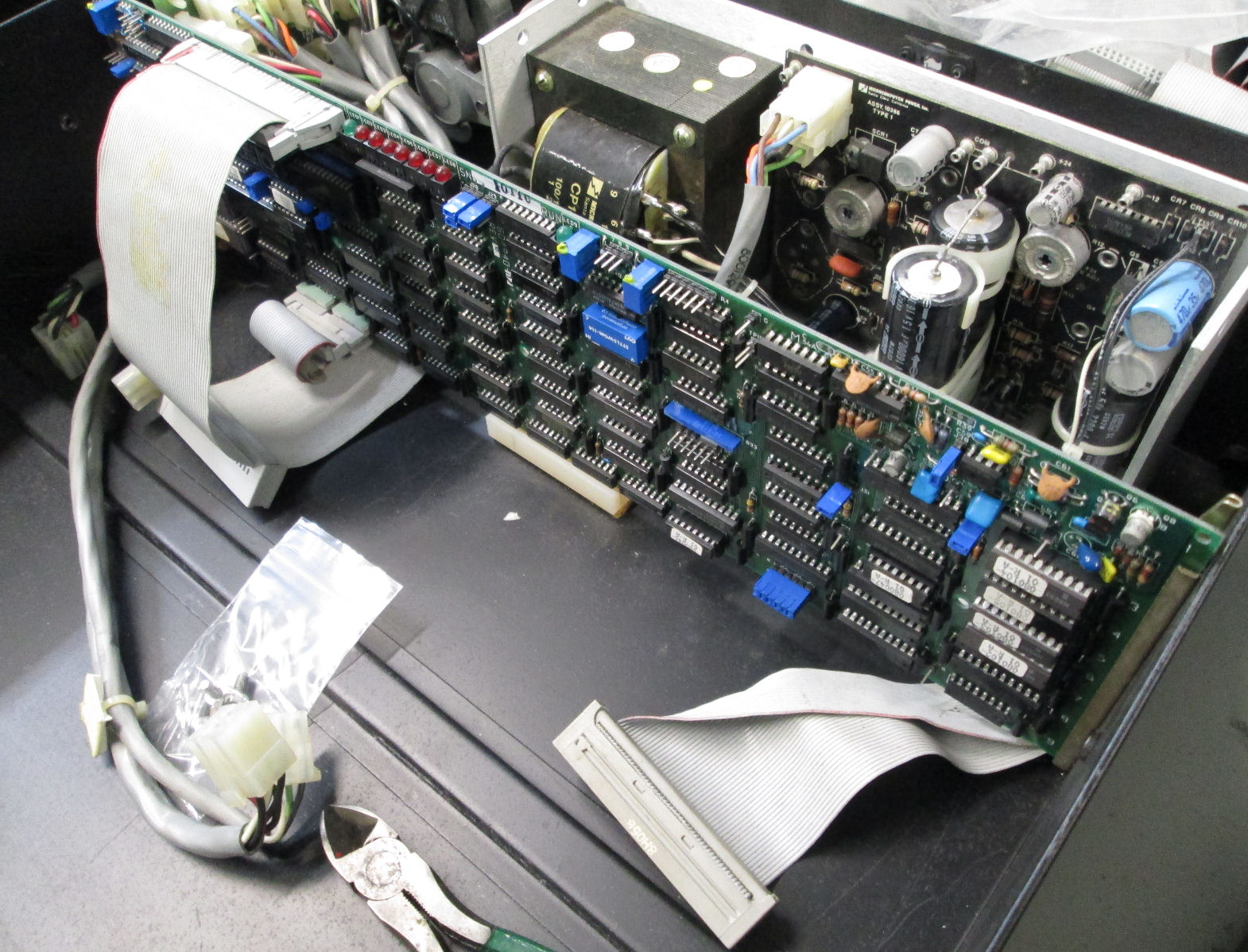

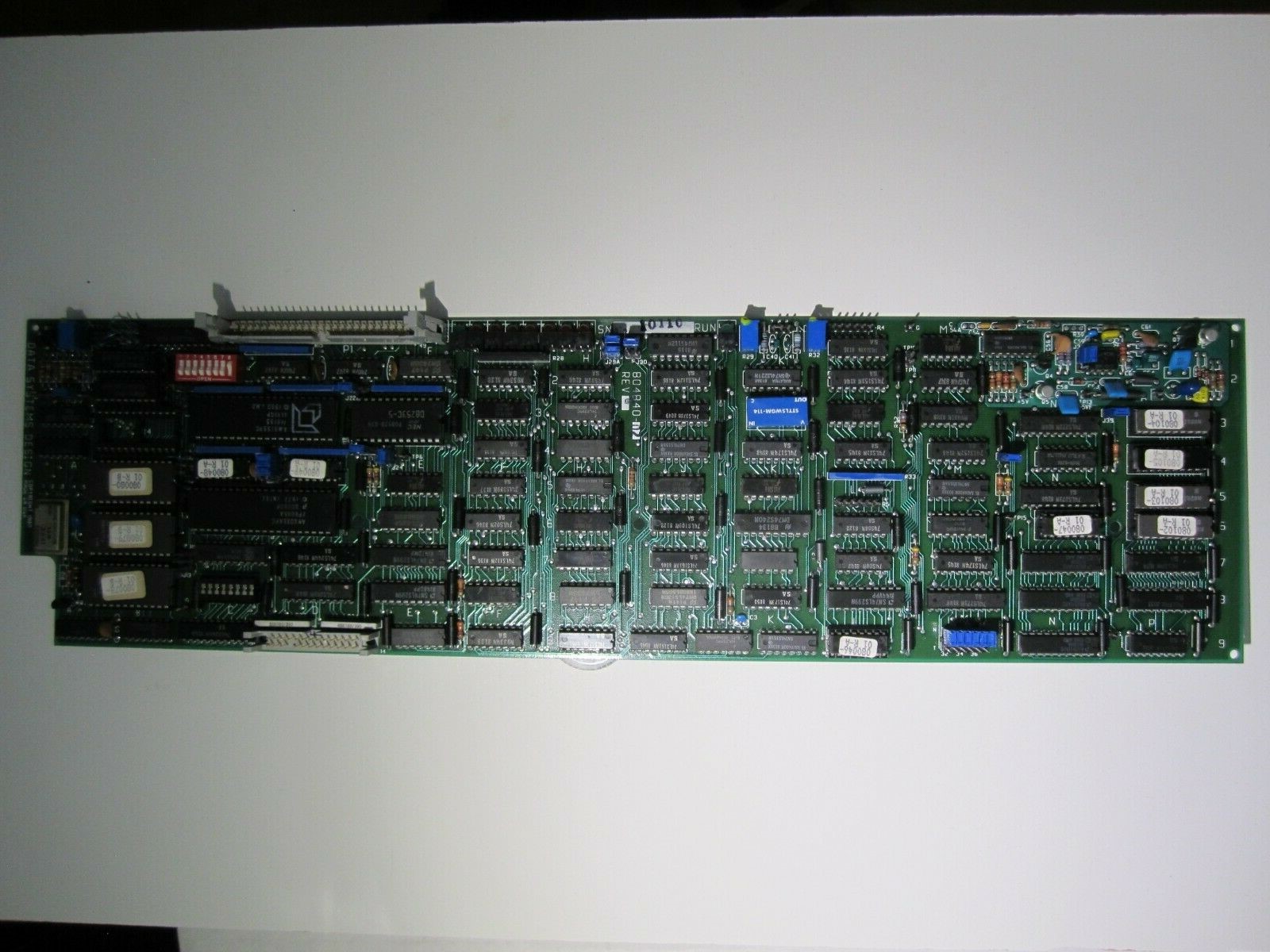

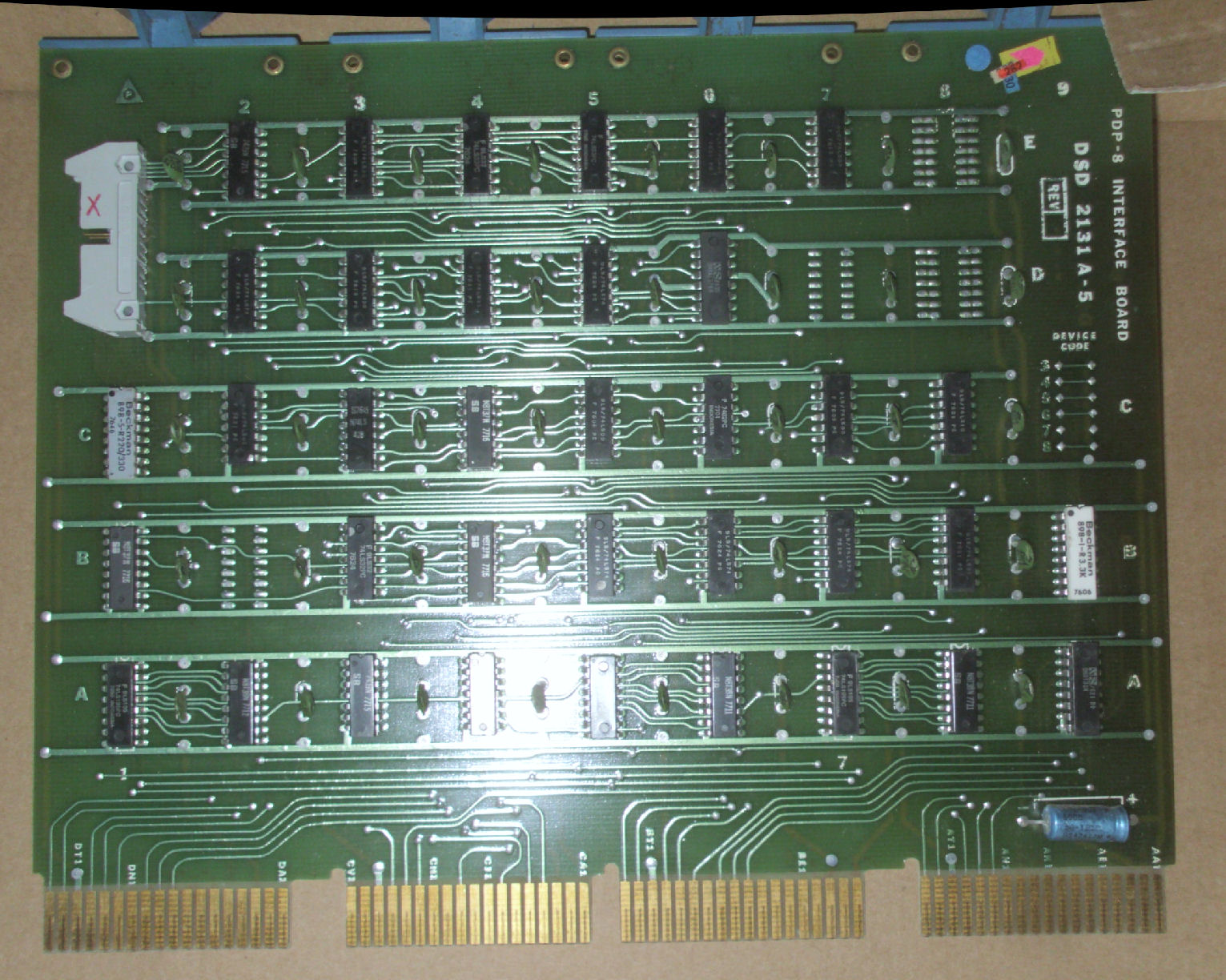

The Non-DEC blue-tabs board I have in my 8/F is a "DSD 2131A-5" "PDP-8 Interface Board"
-- with blue paddles, quad width, all TTL small chips
-- one 20-pin connector w/9 active pins 10 gnds
-- device code 8,6,5,4,3 jumpered (device code 20? 57?)
THere are 5 rows of 8 or 9 TTL-type 14/16 pin chips. The 20-pin IDC connector has one row of ten grounded, the other row only 9 pins are in use. The text in quotes appears on the board.

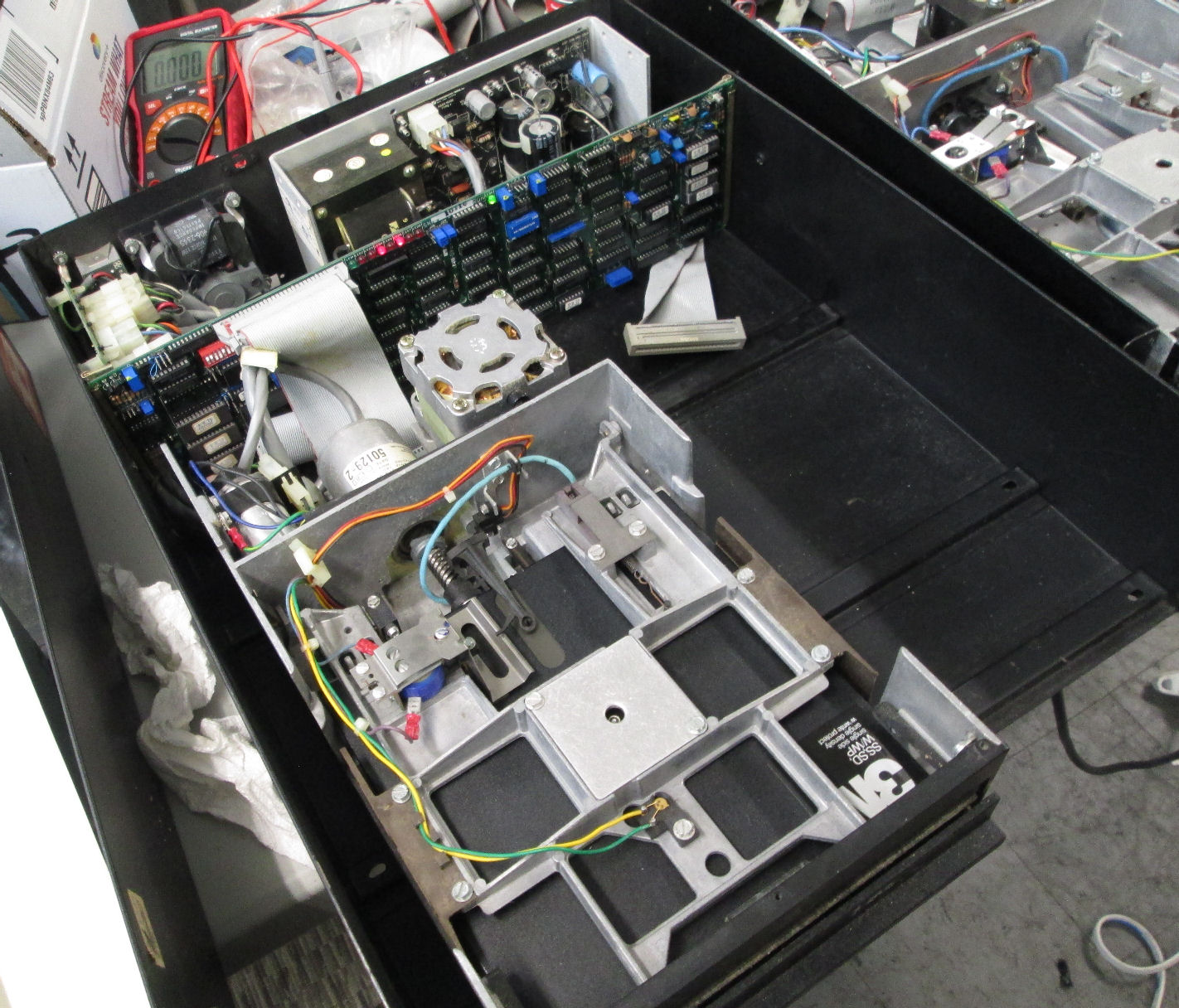

David Gesswein of pdp8online.com says "[his own] controller is labled DSD A/2131-6. It looks like this is the controller for DSD [brand] 8" floppy drives." I'll find out more in due course. Here's David's page on the DSD product for the PDP-8. DSD's drive used an 8085 "formatter" board to run their drives via the DSD interface. Doug Jones's PDP8 site also mentions the DSD drives. Bitsavers has DSD manuals including a DS 440-480 series drive product manual, with a 2131 model PDP-8 interface board.

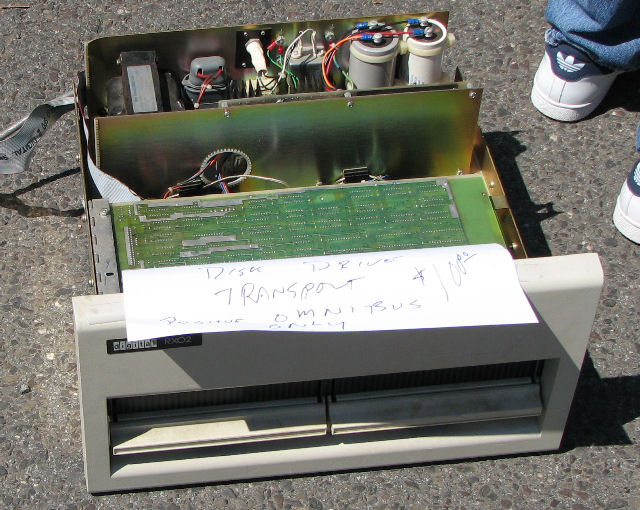

In April 2009 at the Trenton Computer Festival, I picked up this PDP-8 version of the RX02 floppy drive, from Mike Connor of NY The photo is on-site at TCF. Just goes to show, you can still get serious computing iron at TCF!

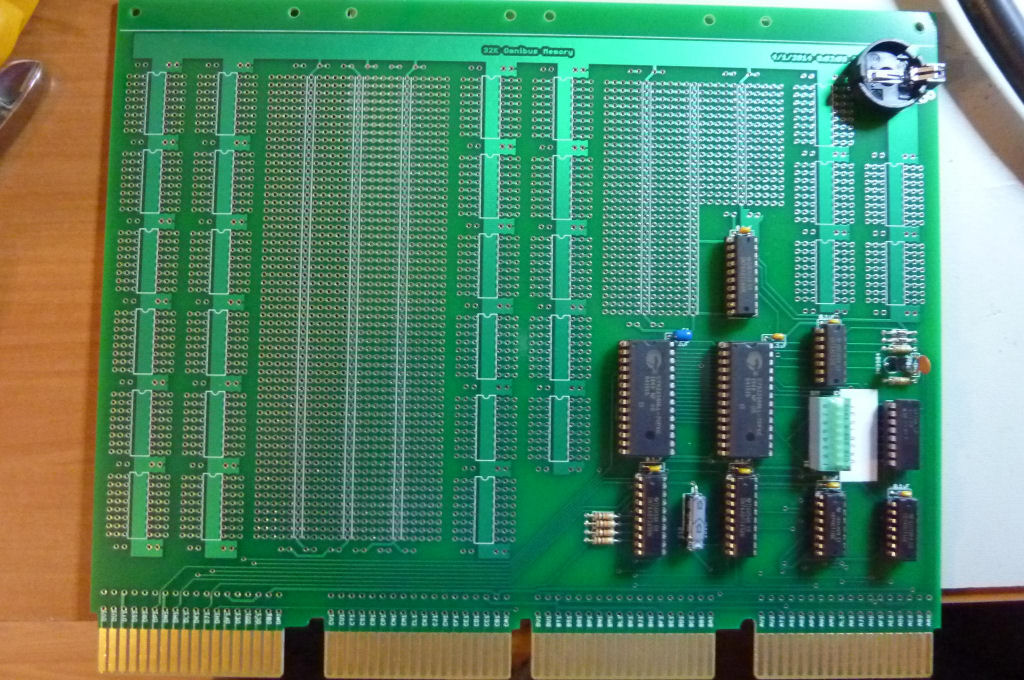

Among my core memory collection, in May 2009 I stumbled across this pair: a H219A core memory card and attached G649A Core x-y driver & sense/inhibit card. Don't know if they work of course; and "pdp-8.org"'s list of modules says this pair is too slow for an 8/E" and presumably for my 8/F.
However Philipp Hachtmann of Germany, a PDP-8 owner tells me his Lab8/E is running a H219A on an extension box, and encourages me to consider similar options.
From the Web, I see that some other PDP-8's have:
# M865 - 20ma, 110 baud TTY control # M869 and M885 - Point plot display system # M840 - High speed paper tape reader and punch # G227, G619 and G104 - Core memory system, 4 k words (green handles) # G227, G619 and G104 - Core memory system, 4 k words (green handles) # M832 - Bus loads
